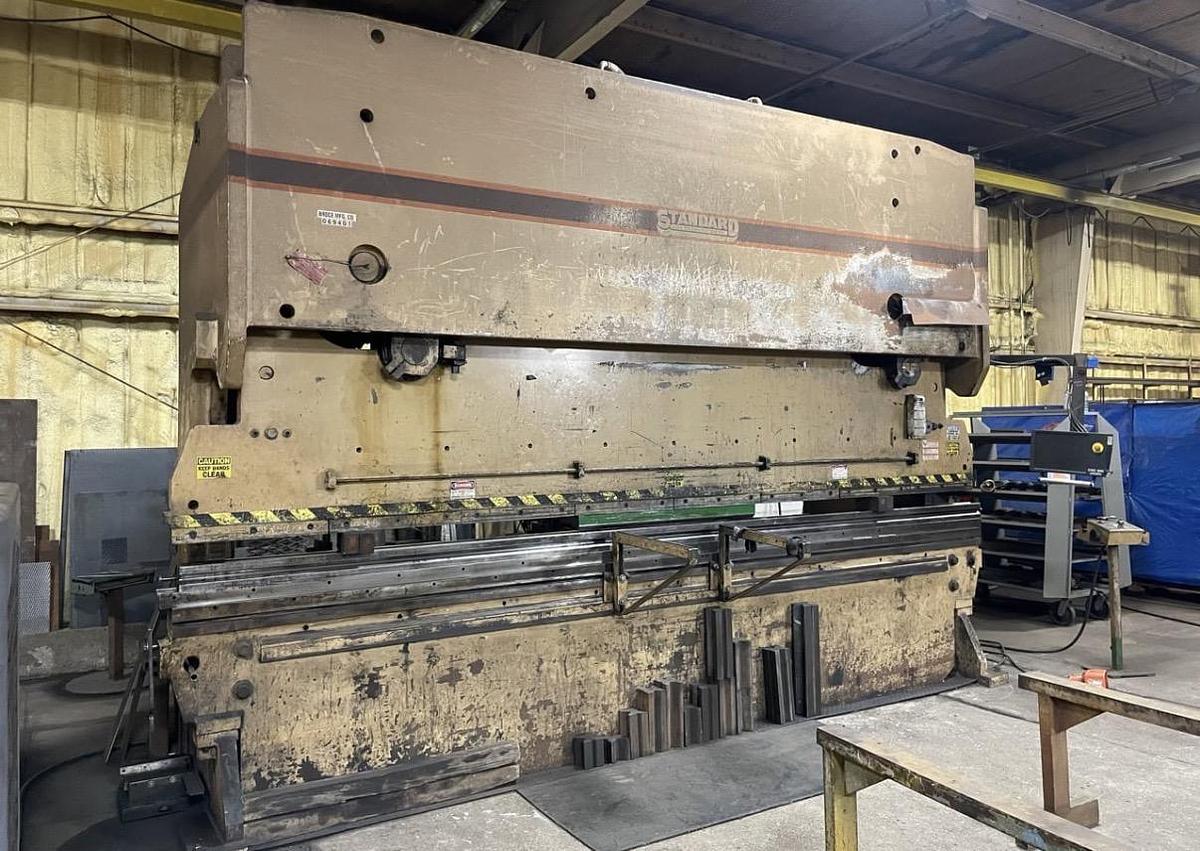

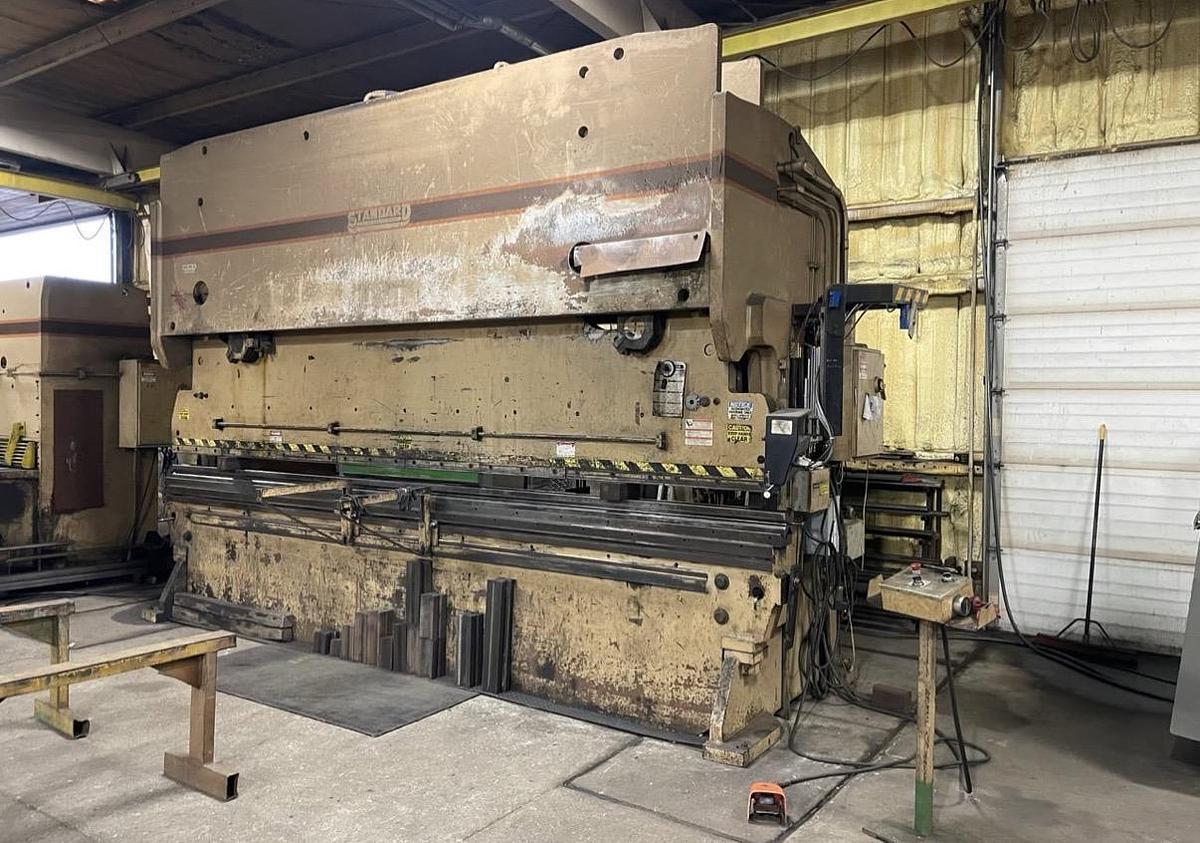

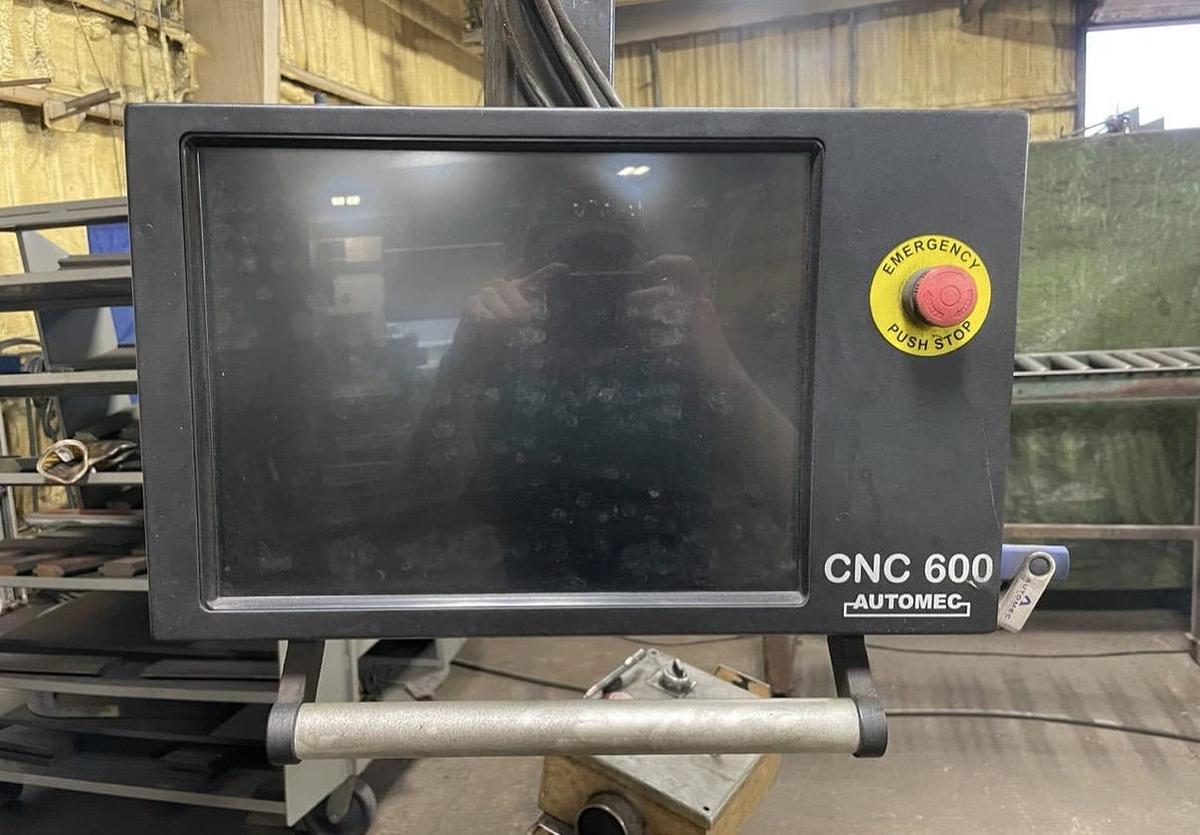

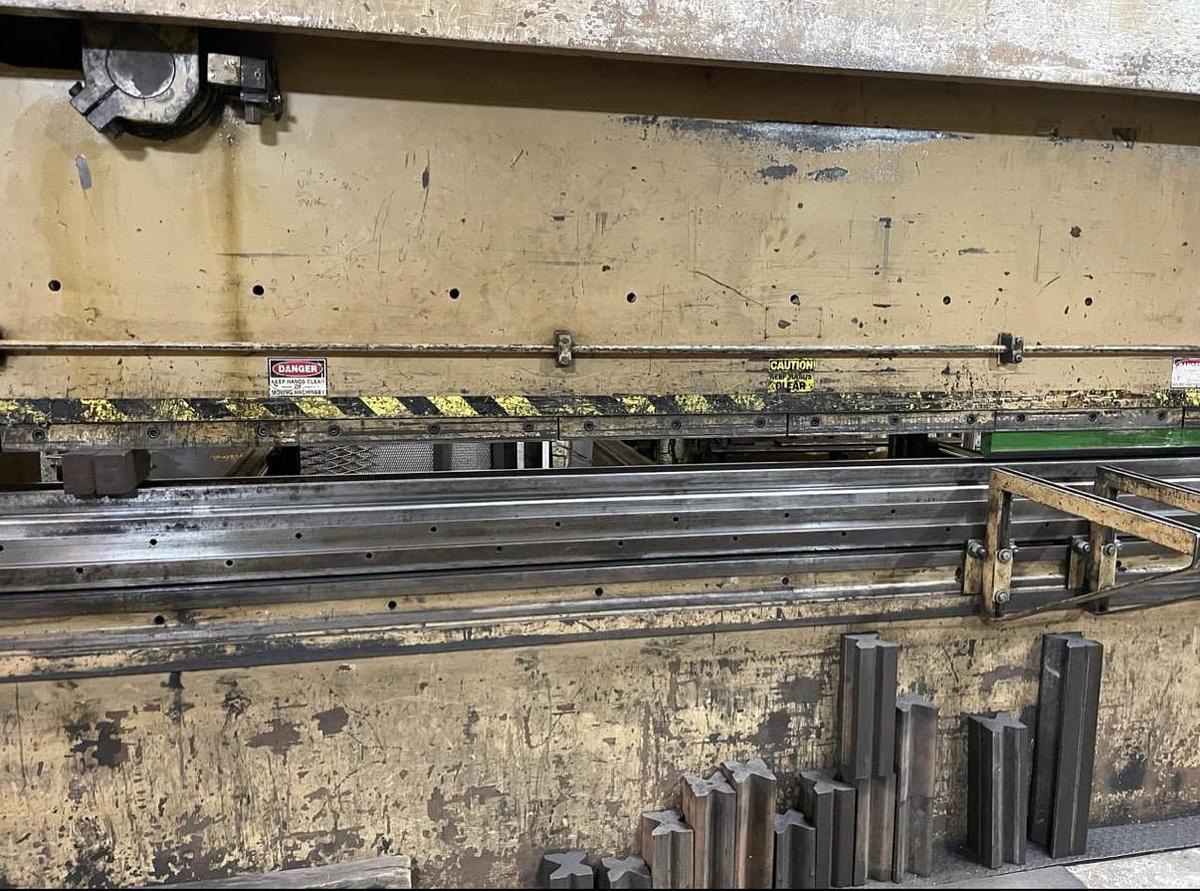

325 Ton x 16′ Standard AB-325-16 CNC Press Brake, 1994 – Automec CNC Control (2 years old) Back Gauge, Tooling Included, Pit Required

Machine Type: Hydraulic Press Brakes

Make: Standard

Model: AB-325-16

Year: 1994

Capacity: 325 Ton x 16‘

Tonnage: 325 Ton

Bending Length: 192″

Dist. Between Housings: 173″

Throat Depth: 10”

Open Height: 16″

Stroke Length: 8”

Closed Height: 8″

Fast Approach Speed: 112 IPM

Fast Return Speed: 18 IPM

Press Speed: 89 IPM

Motor Size: 30 HP – 220/440V – 3 Phs

Capacities (Mild Steel): 5/16″

Weight: 66,000 Lbs

Pit Requirements: 172″ long x 12″ wide x 14″ deep

EQUIPPED WITH:

In-Line Depth Stop

Hydraulic Pressure Tonnage Control w/Gauge

Portable Control Station w/(2) Controls:

– Inch Control

– Emergency Stop

Operation & Parts Manual

MACHINE FEATURES:

“Large Bore” Single Hydraulic Cylinders

Massive “Heavy Duty” Welded Frame

Full Tonnage – Entire Length Of Bed & Ram Stroke

Manifold Centralized Lube System

Hand/Foot Safety Sequence w/Foot Switch

+/- 0.001” Ram Repeatability

Simple & Precise Ram Adjustment

All Components “Off The Shelf”

Off-Center Load Capability

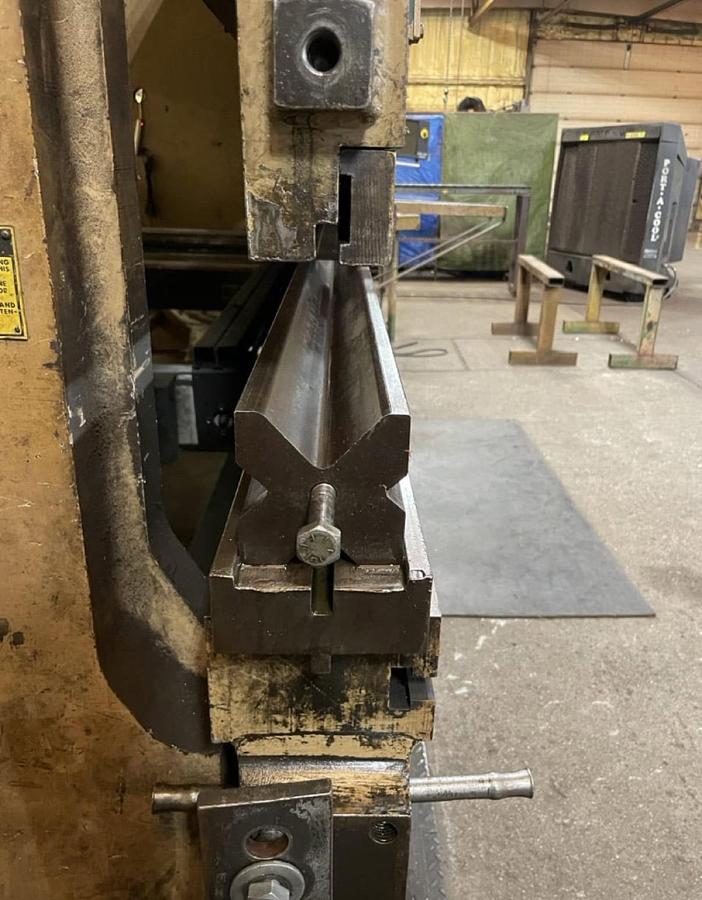

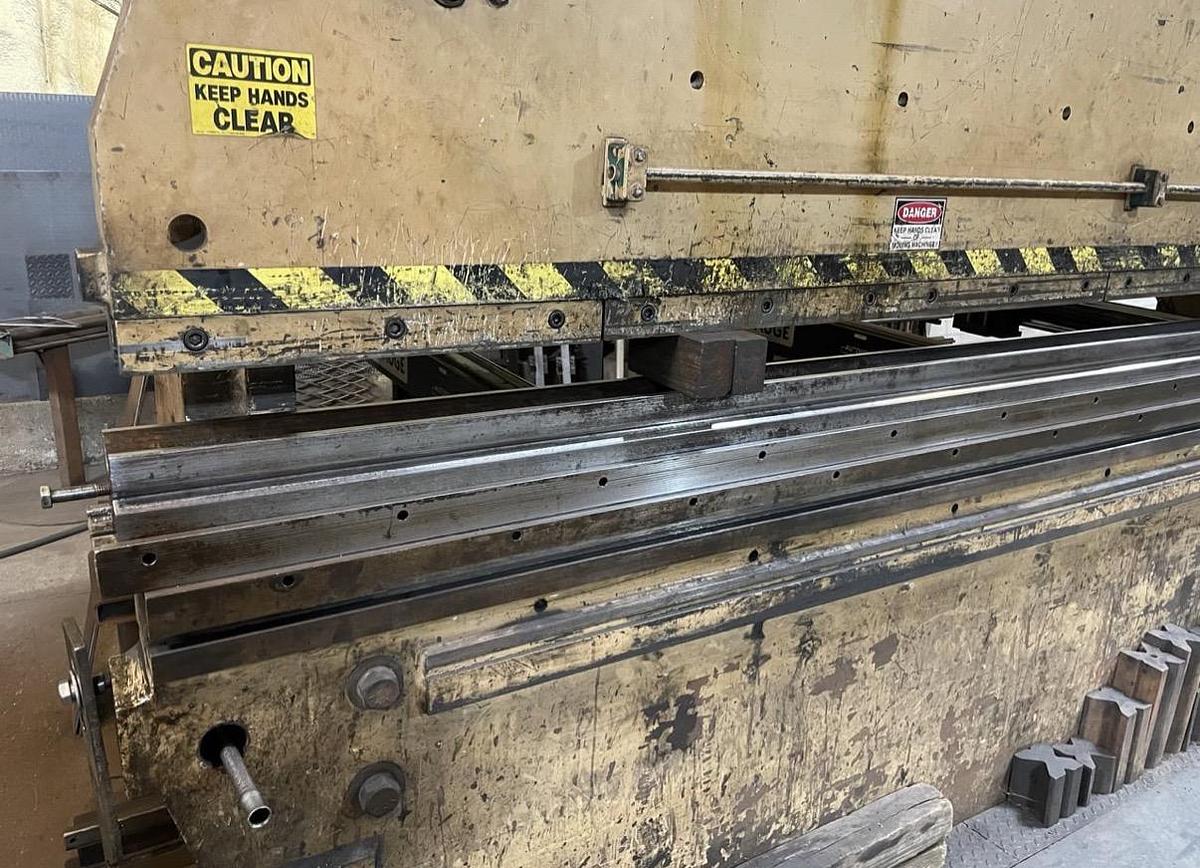

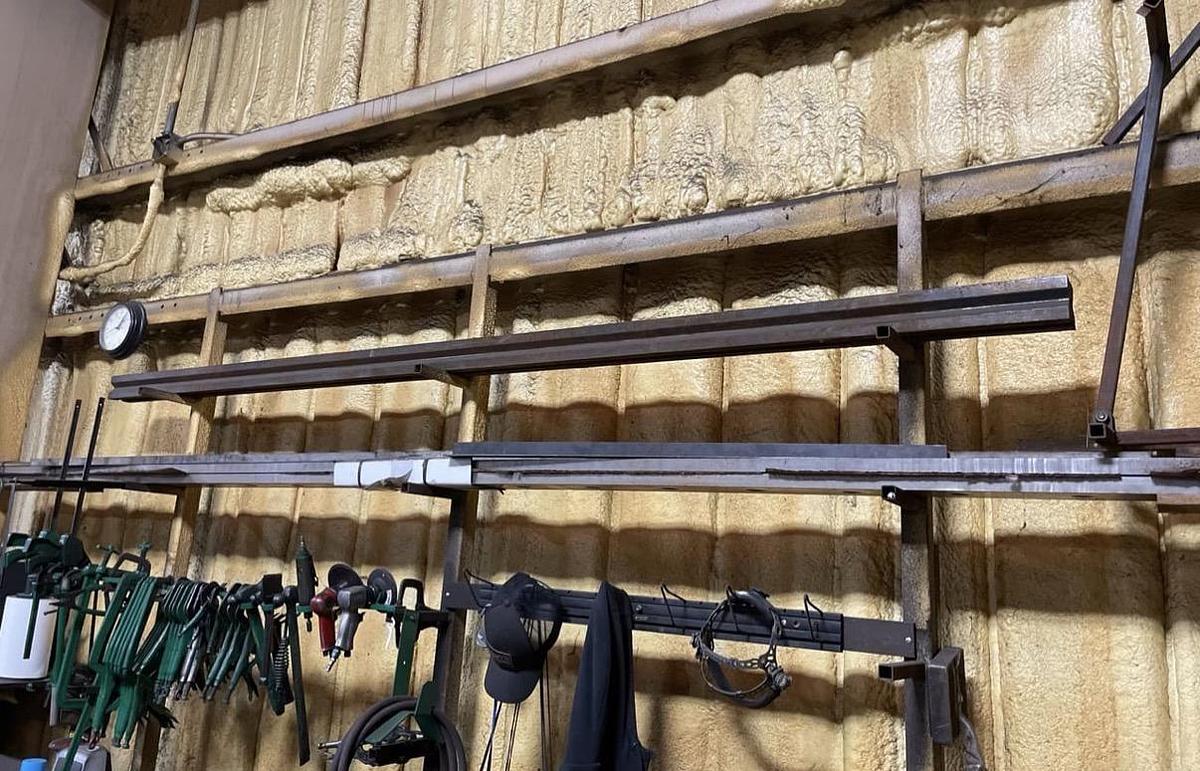

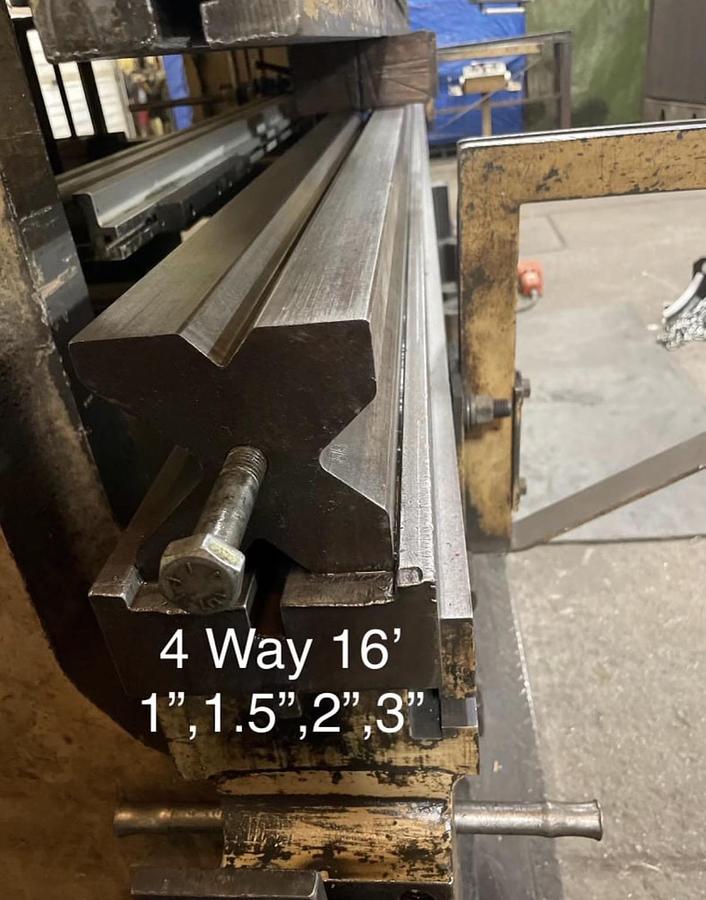

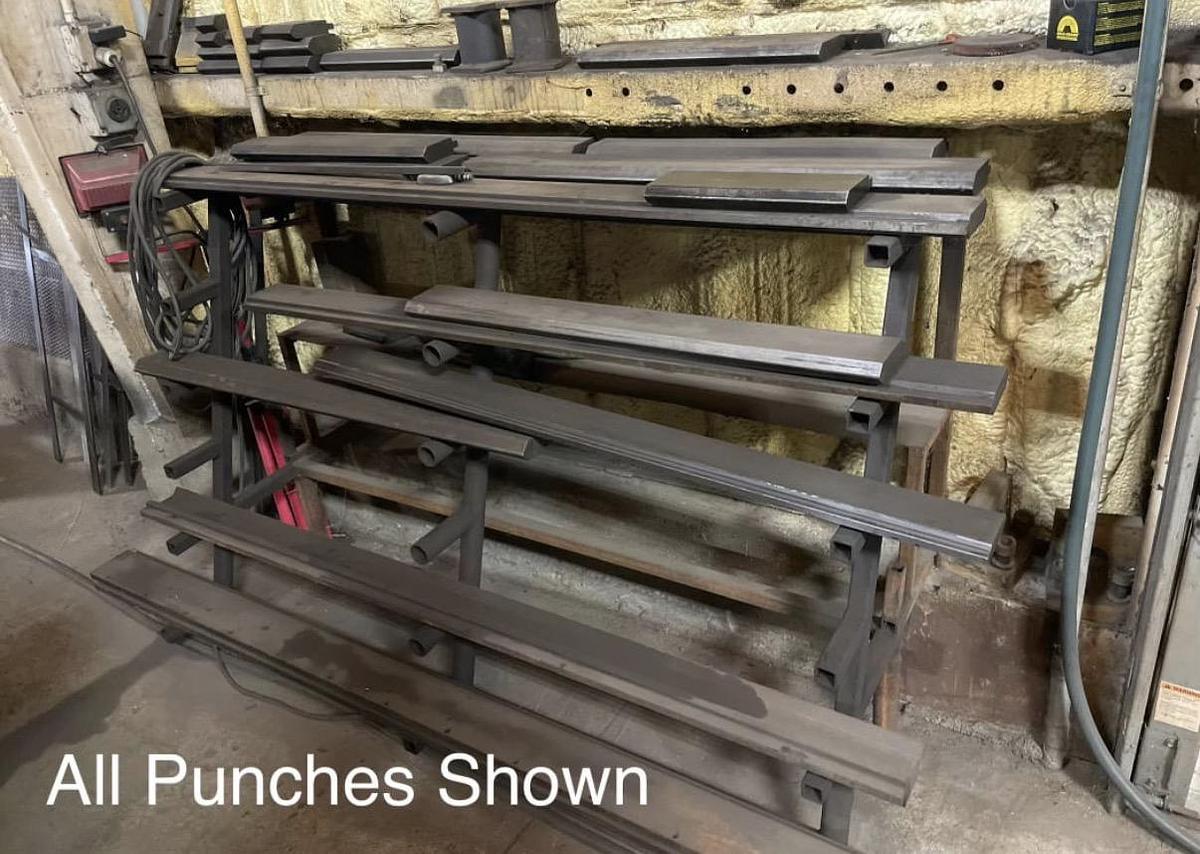

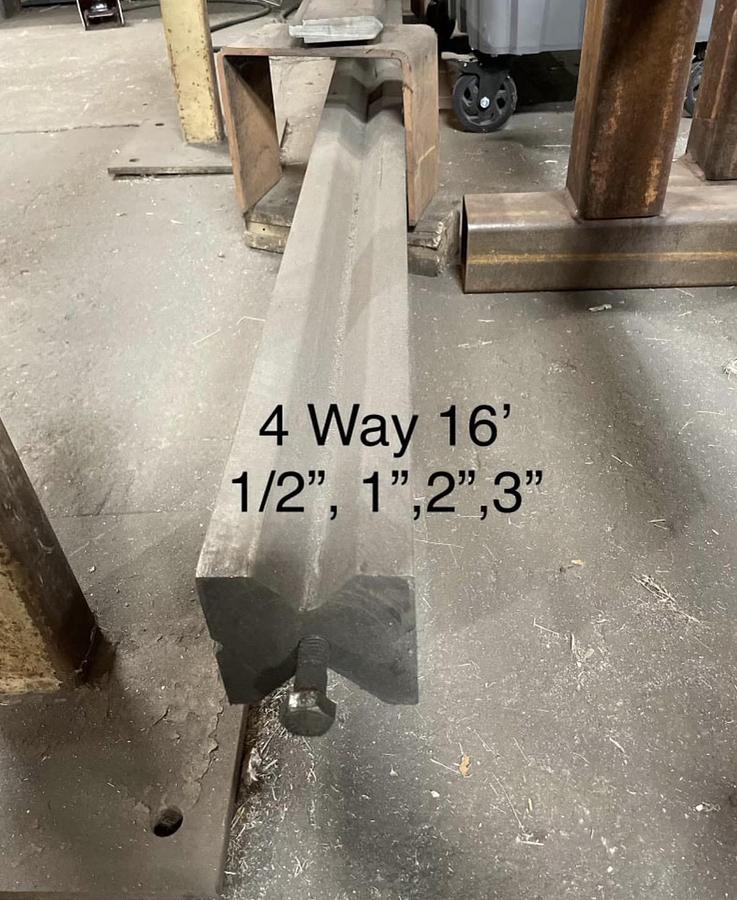

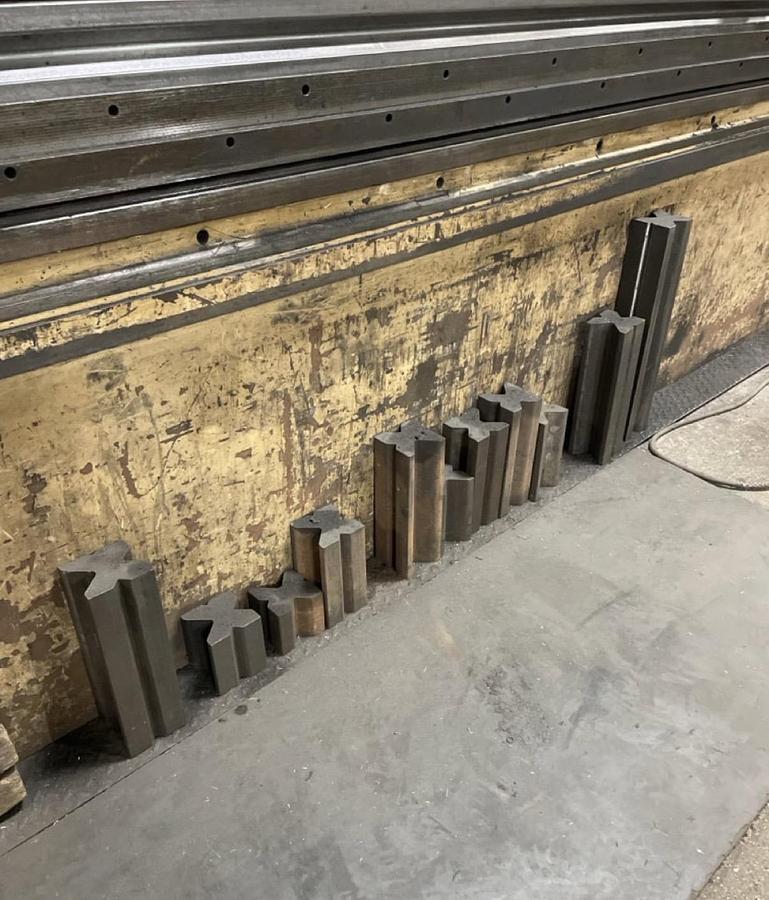

TOOLING PICTURED INCLUDED
