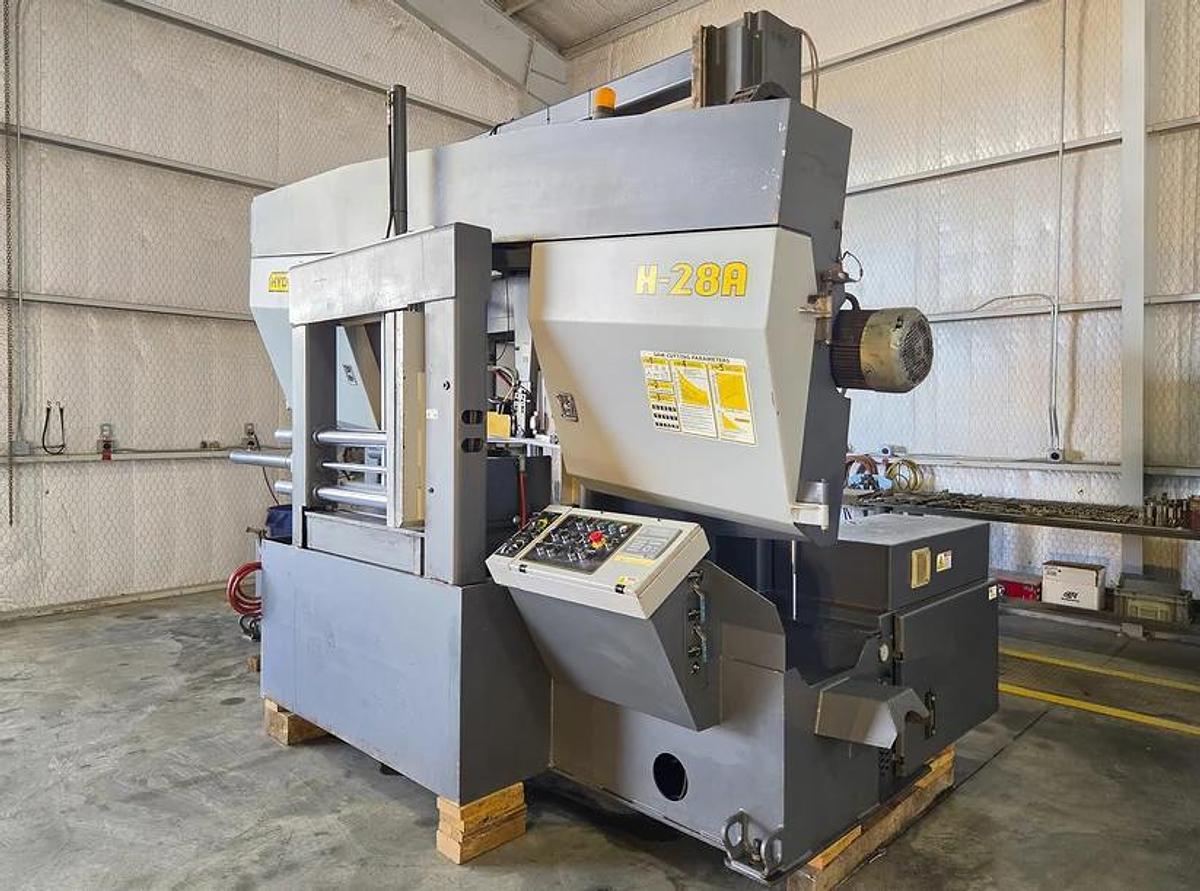

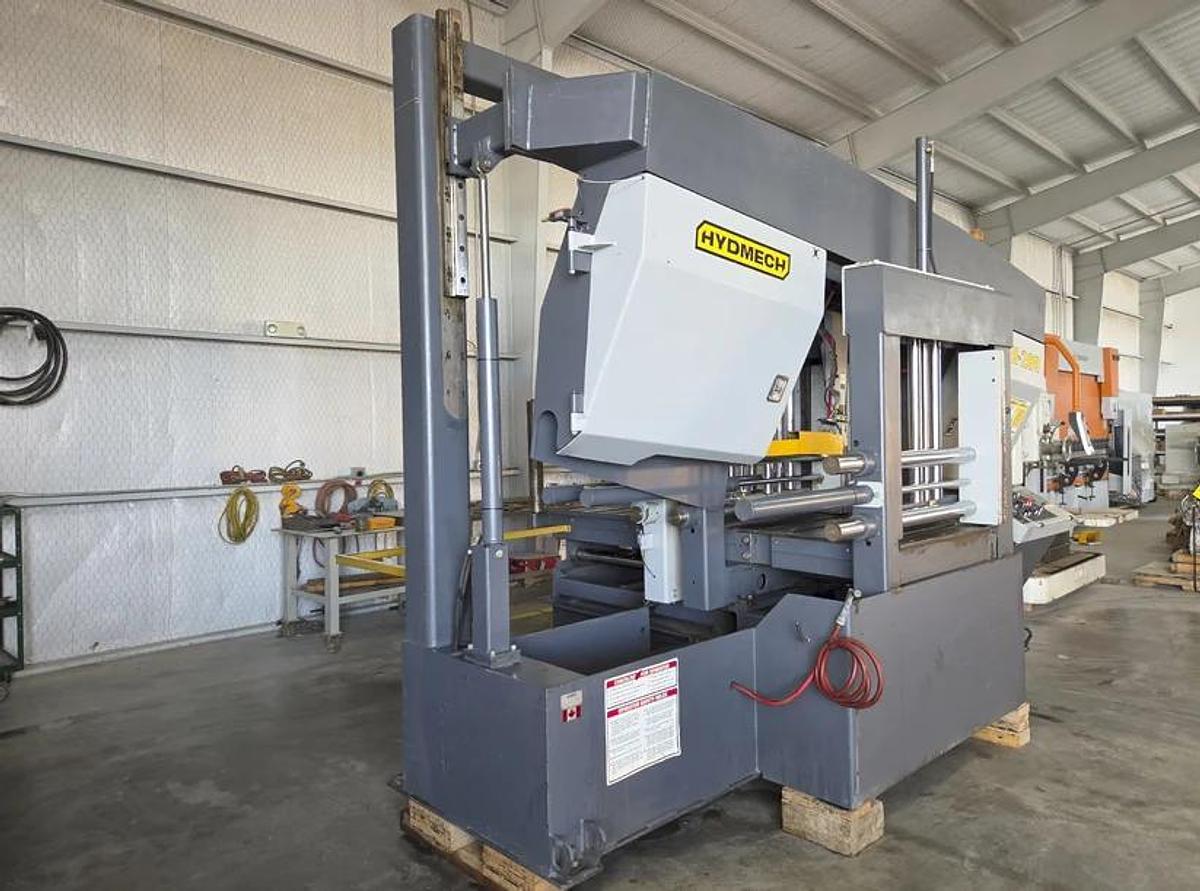

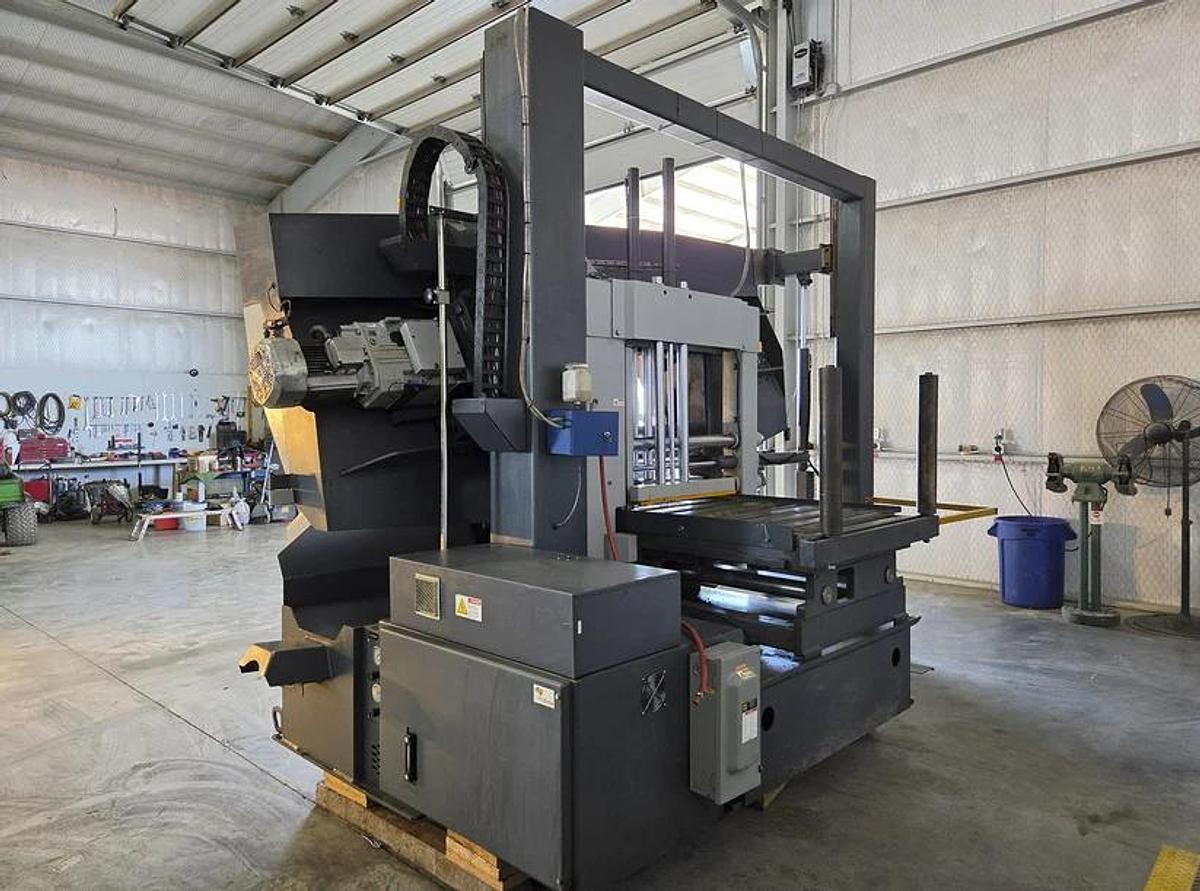

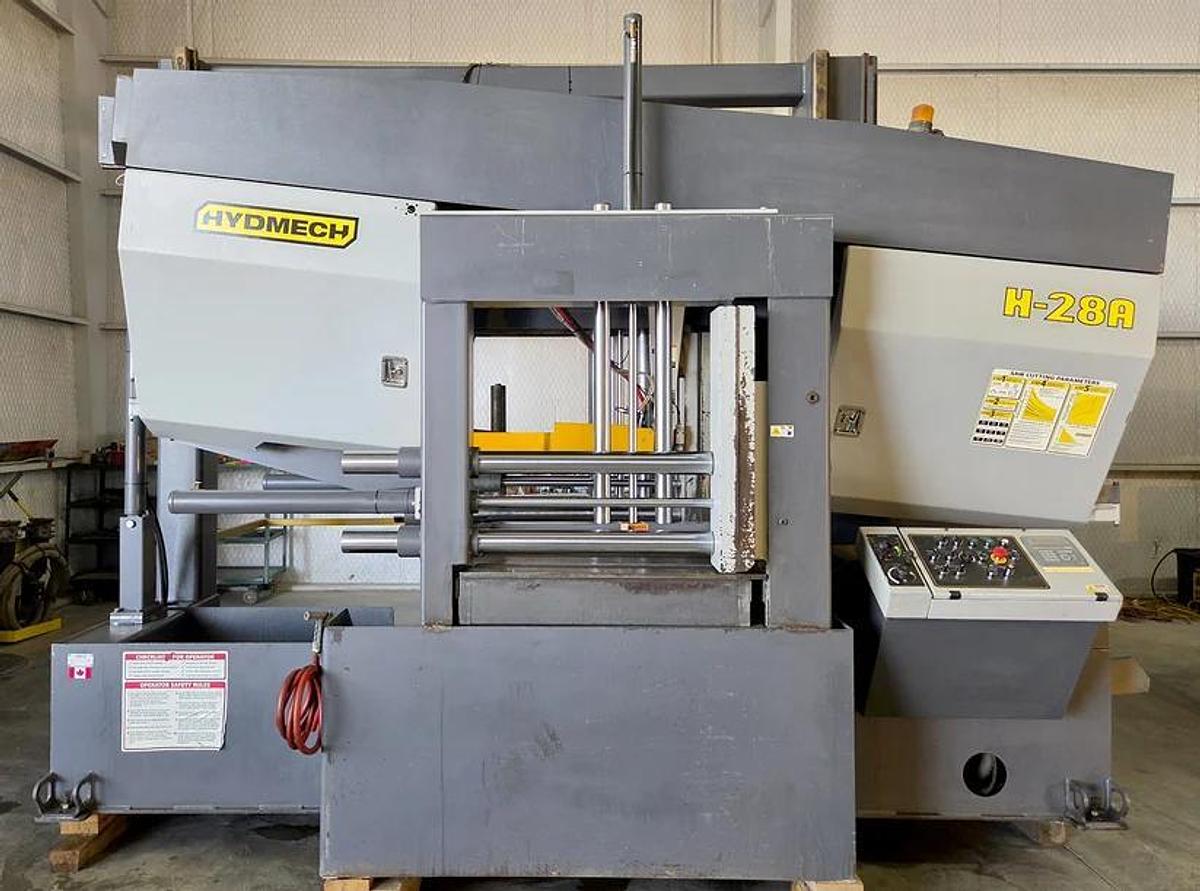

Hydmech H-28A

The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement.

The H-28A is an

automatic horizontal band saw

providing accurate 90° metal cutting for heavy-duty applications.

A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Standard Machine Features

·    One piece design – no alignment necessary

·    Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

·    Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.

·    10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises

·    Robust steel base

·    Blade chamber separates material from cut part

·    Hydraulic positive down feed

·    High resolution feed rate valve allows for constant feed rate when cutting special alloys

·    Cast iron band wheels

·   Mitsubishi PLC. 999 jobs, 10 jobs in queue.

·    Replaceable blade brush

·    Automatic chip removal auger

·    Easy access electrical panel and hydraulics Blade breakage switch

·    Hydraulic band tensioning with digital readout

·    5 HP hydraulic pump provides system pressure

·    Hydraulic carbide guide tensioning

·    Hardened, replaceable wear plates

·    Safety door interlocks

·    Flood coolant with wash down hose

·    Work light

Optional Equipment on Saw

• Out Feed Vise with bundling
• Full Capacity Bundling
• 6° Canted Head for Structural cutting
• Mist Lube
• Vertical Rollers

New Replacement Cost with option:

• Standard Machine $ 132,000
• Out Feed Vise with bundling $ 18,900
• Full Capacity Bundling $ 8,500
• 6° Canted Head for $ 7,900

Structural cutting

• Mist Lube $ 1,900
• Vertical Rollers $ 1,800

Total new Replacement Cost Machine $ 171,000
