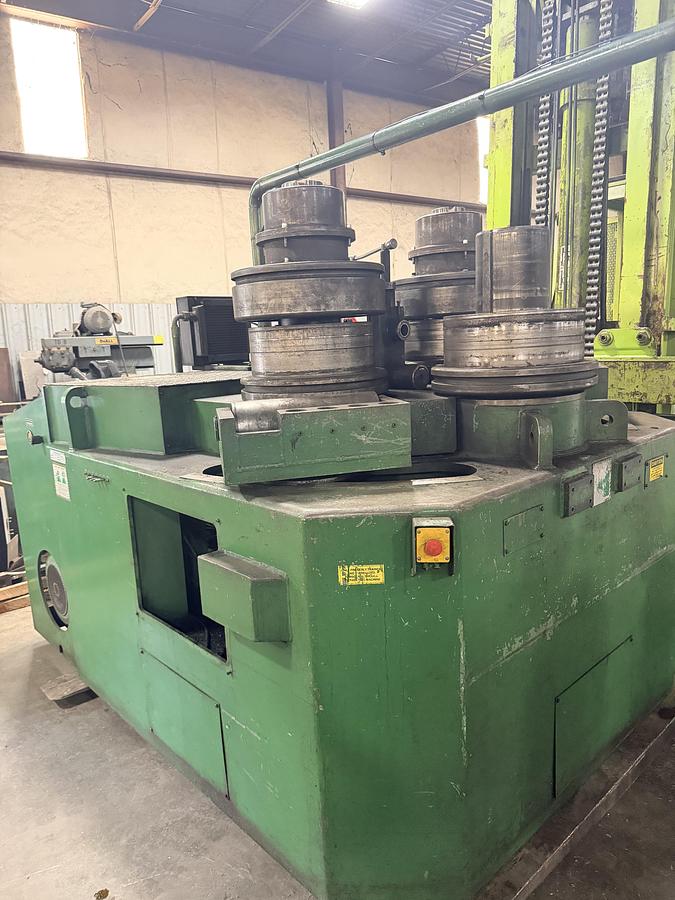

1995 Roundo R-7-S R7S
1995 Roundo R-7-S R7S
$96,500 (USD)
Price on Request
Location:Texas
or
Call 1 501-897-1110
Description
- 3-Roll Double Pinch Angle Roll
- Hydraulic Guide Rolls
- Hydraulic Beam on Edge Device
- Wireless Bluetooth Control Unit
- Digital Readouts for Lower Roll Positions
- Hydraulic Drive with Variable Speed
- Universal Rolls for Flat Bar, Angle Iron, T-Bars, Solid Rod, Channels and Beams
- Universal Rolls for Flat Bar, Angle Iron, T-Bars, Solid Rod, Channels and Beams. Optional rolls for hollow pipe and other profiles.
Specifications
| Manufacturer | Roundo |
| Model | R-7-S R7S |
| Year | 1995 |
| Condition | Used |
| Serial Number | 955778 |
| Stock Number | MemphisDJ81726 |
| Angle Leg Out | 6″ x 6″ x 1″ to 100" Dia |
| Angle Leg In | 6″ x 6″ x 1″ to 130" Dia |
| Flat on Edge | Up to 1-1/4” x 7” on Edge to 75" Dia |
| Flat on Flat | Up to 11” x 2-1/4” on Flat to 50" Dia |
| Square Bar Stock | Up to 3-5/8” square (may require additional spacers for maximum sizes) |
| Bending Capacity, Standard A-36 Steel with | Optional Rolls. |
| Pipe | Up to 6” Schedule 40 to 85" Dia |
| Beams/Channels | 14" |
| T iron Leg In | WT 6x 68 |
| T iron Leg out | WT 6 x 76 |
| Roll Dia | 22" |
| Weight | 25700 |
| Motor HP | 46 |
| Dimensions (w x l x h) | 80" x 113" x |
