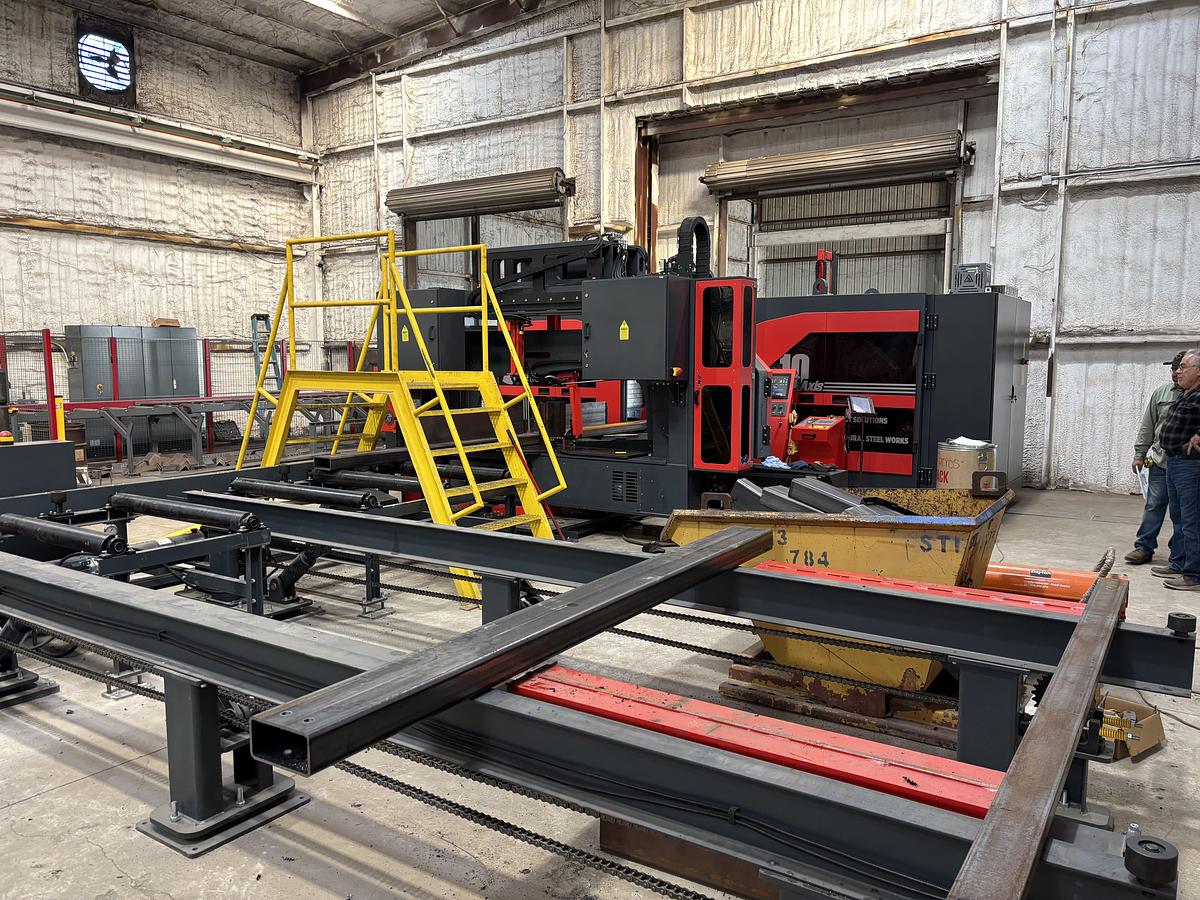

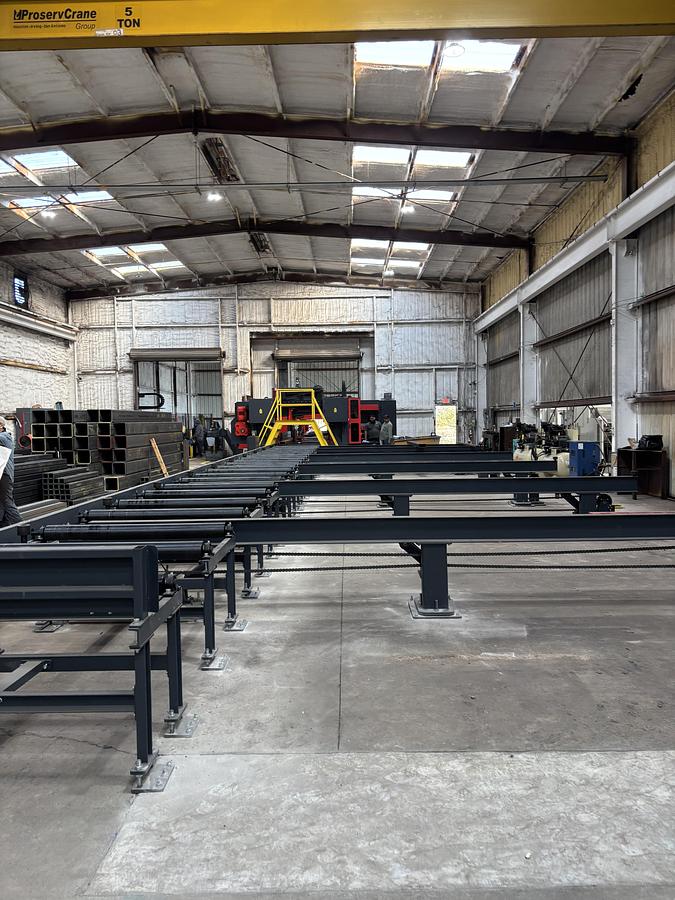

2025 AKYAPAK 3 ADM 1200
2025 AKYAPAK 3 ADM 1200
$598,500 (USD)
Location:Texas
or
Call 1 501-897-1110
Description

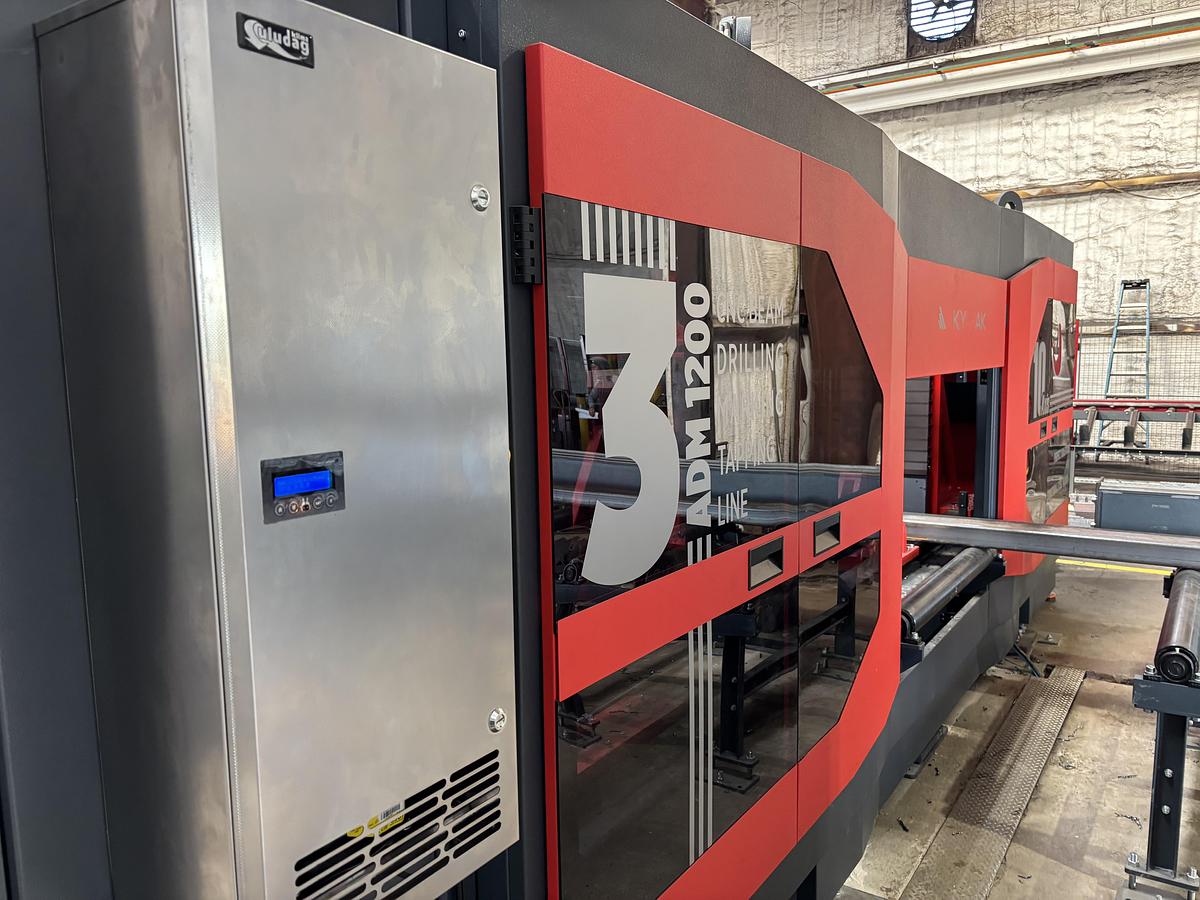

▪ 3 ADM 1200 CNC DRILL LINE

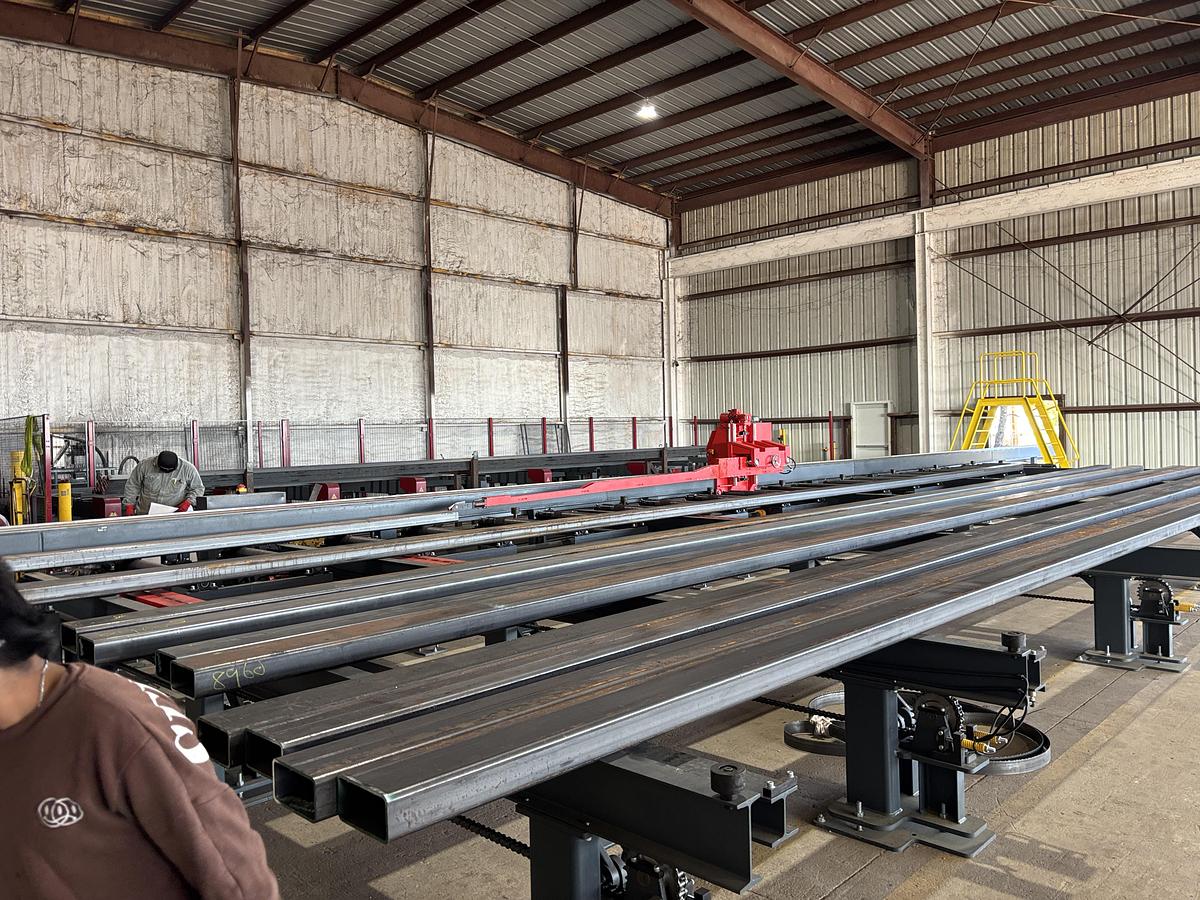

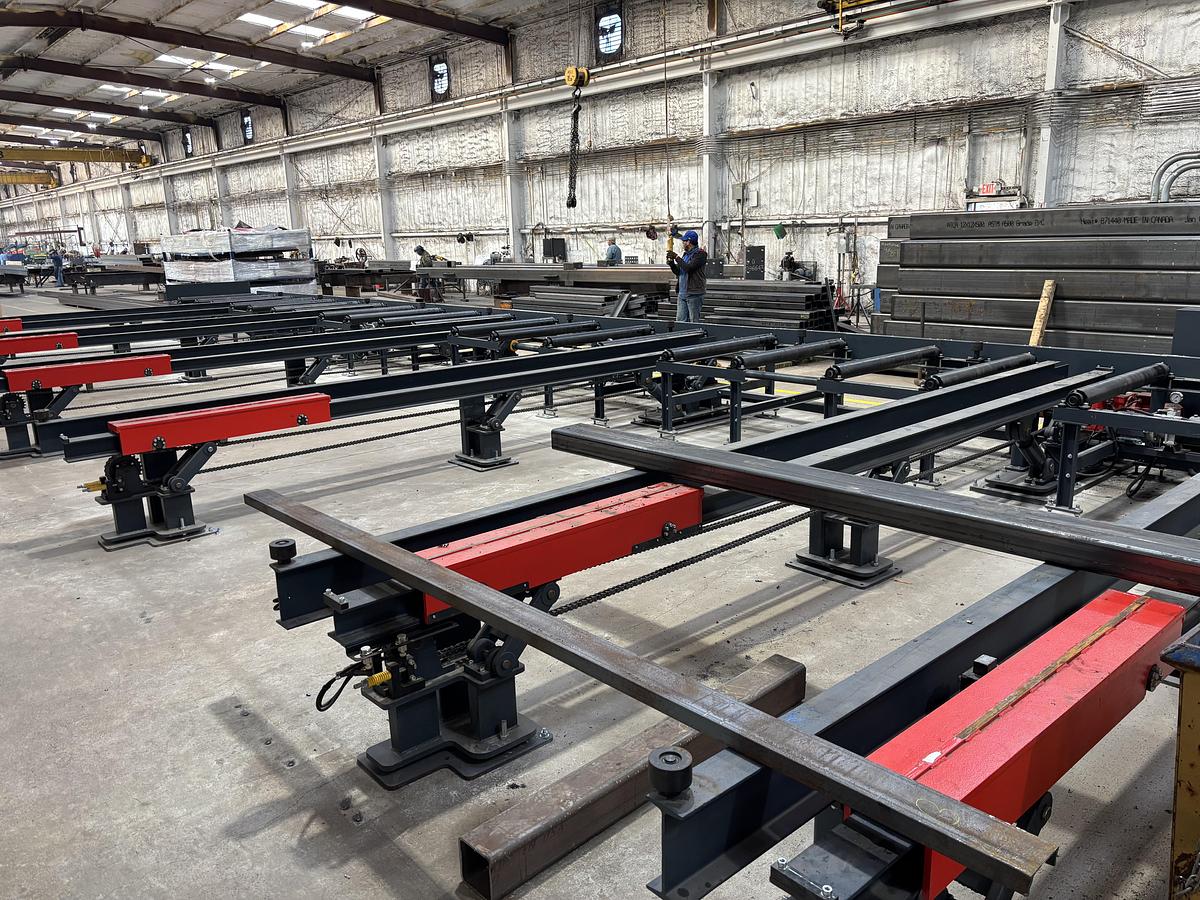

▪ Infeed conveyors ( 60 ft.)
▪ Outfeed conveyor ( 60 ft.)

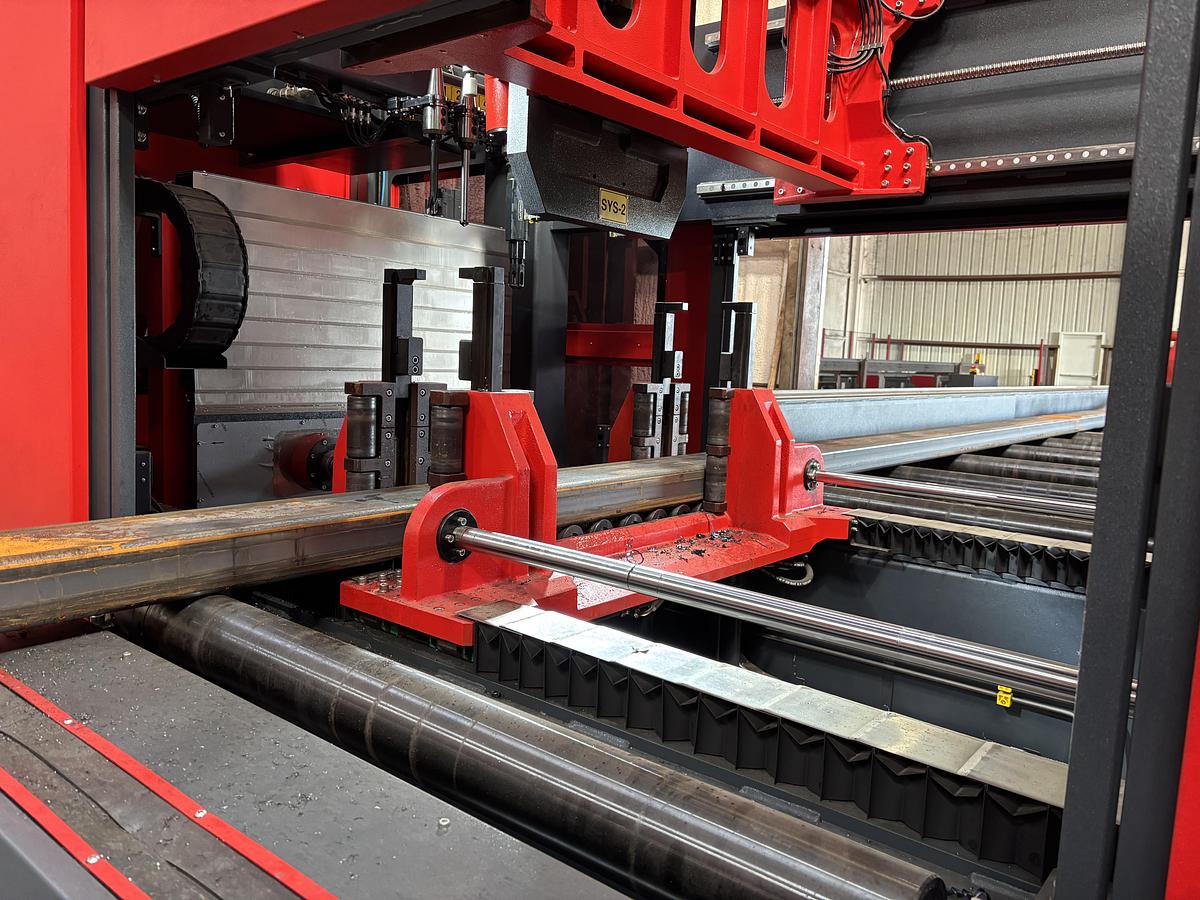

▪ Feeding arm
▪ Safety fences
▪ Wireless remote control
▪ Auto-lubrication system
3 ADM 1200 + AST 1200-500 ▪ ATC – Automatic Tool Changer (one unit for each spindle, each unit has 4 tool stations)
▪ BT40 Tool Holder
▪ MQL (Minimum Quantity Lubrication)

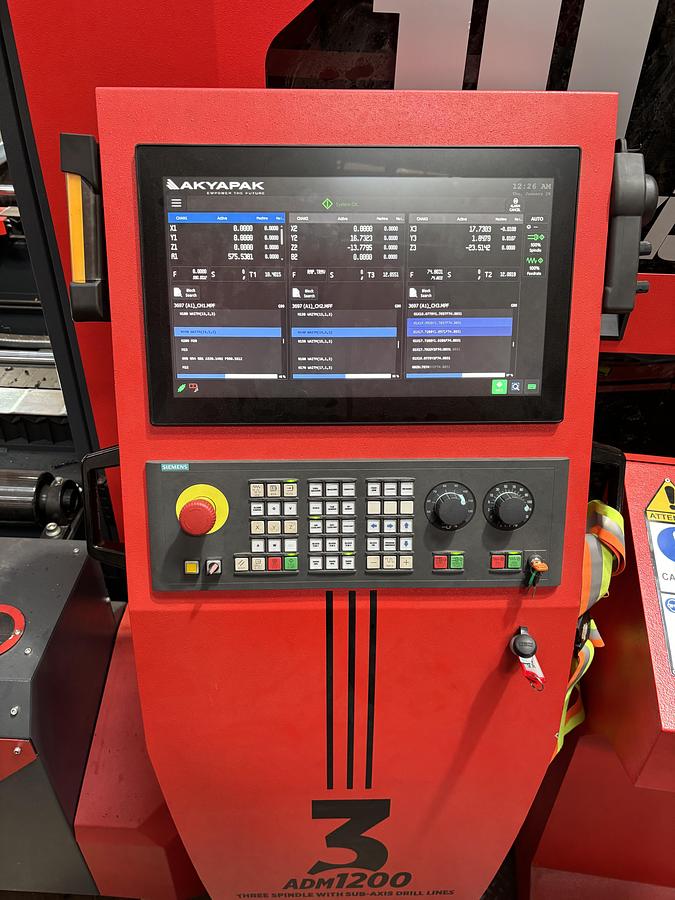

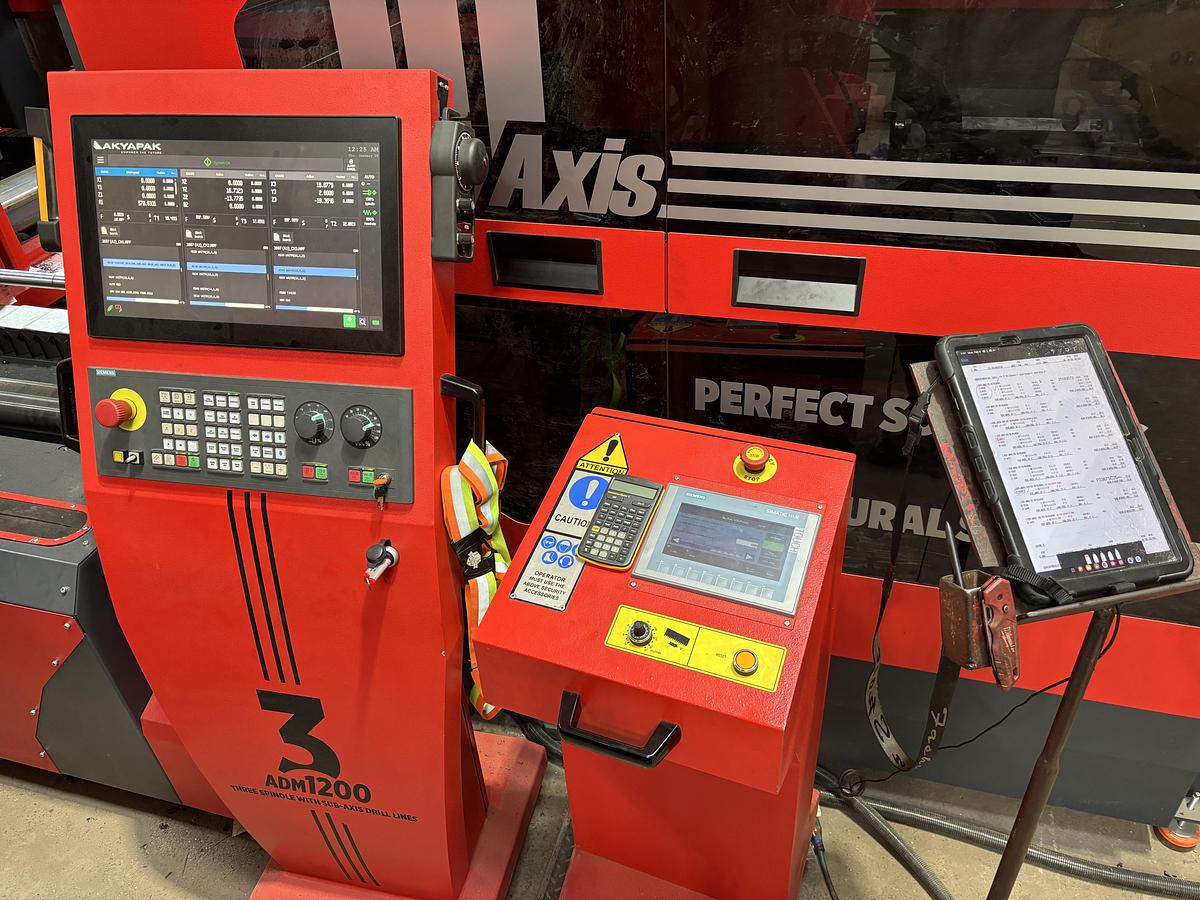

▪ Mobile control panel
▪ Lantek Flex 3D Steel Work
▪ DSTV file import
▪ Online connection hub
▪ 15” Touch Screen Mitsubishi

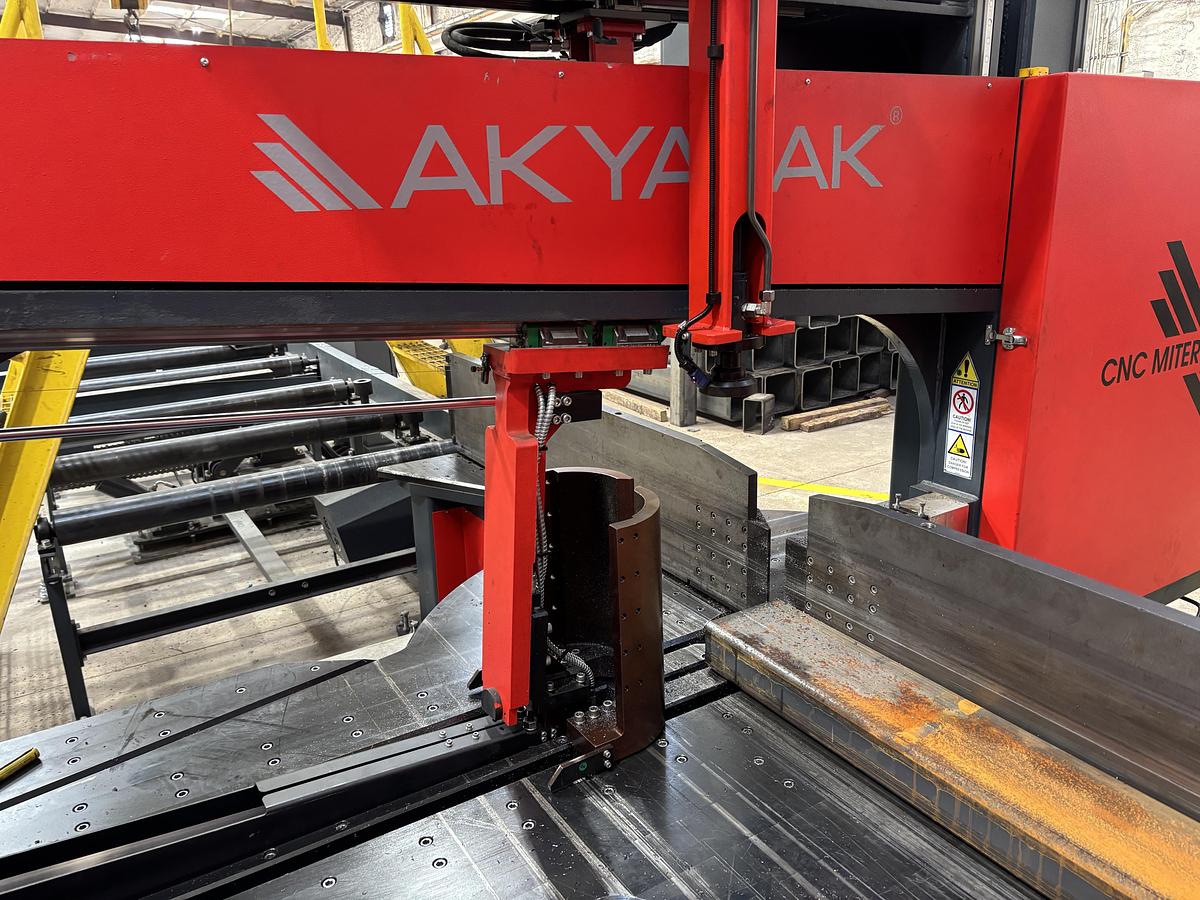

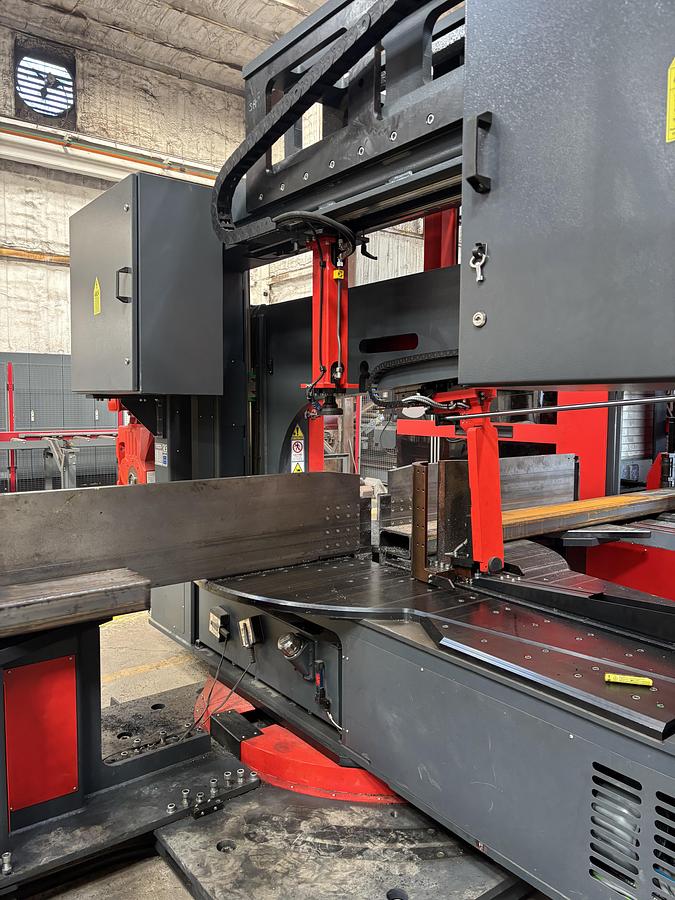

▪ ▪ AST 1300-600 CNC MITER BANDSAW
▪ Automatic blade tensioning system
▪ Chip brush for blade
▪ Integrated chip conveyor
▪ MQL
▪ Clamping vice
Specifications
| Manufacturer | AKYAPAK |
| Model | 3 ADM 1200 |
| Year | 2025 |
| Condition | Used |
| Stock Number | SR2026 |
| Drill Heats | 3 |
| Drill Dia | (Carbide and U-drill) 3/8 – 1-1/2 (Only with U-drill) 1-1/2 – 2 |
| Thread Tapping | M10 – M24 |
| Drill Thickness | 0.2 – 3.94* |
| Tool Holder | BT40 or ISO40** |
| Spindle Speed | 50 – 3000 stepless RPM |
| Spindle power | 30 (S1) and 35 (S6) HP |
| Vertical spindle strokes X, Y, Z | 57 – 20 – 36 |
| Horizontal spindles’ strokes X, Y, Z | 20 – 21 – 28 |
| Room Size | 49 w X 27 h |
| Min Beam size | 8 x 3.15 |
| Max Beam Size | 48 x 20 |
| Standard line for length – Min | 6.5 ft |
| Standard line for length – Max. | 41 ft |
| Weight per linear Feet | 670 |
| SAW | AST 1300-600 |
| Cutting capacity | 3.15" – 51,5" 0" – 24" Blade does not move up |
| Cutting angle | 60°/60° |
| Upper pressure cylinders* | Yes |
| Cutting feed | Electronically controlled free fall |
| Blade | 67 x 1,6 mm (2.64" x 16 ga.) |
| Total Power | 24 HP |
| Blade speed | 65.6 – 377.3 ft/min |
