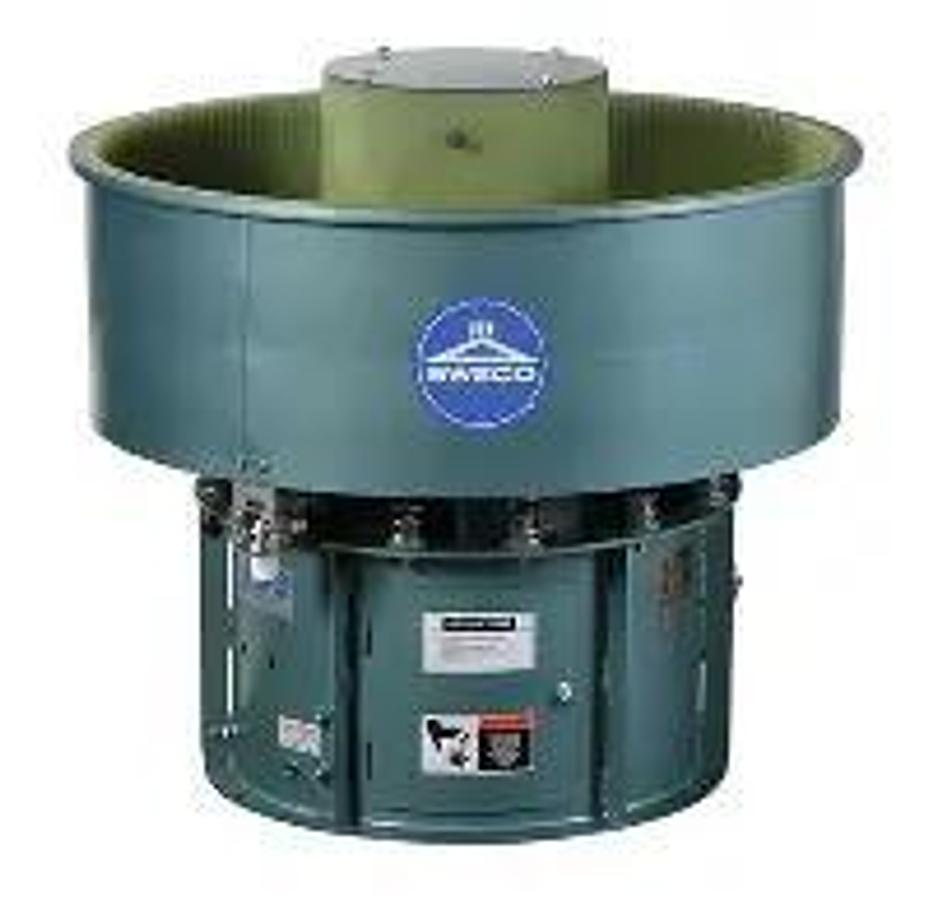

SWECO MODEL FM-24LR VIBRO-ENERGY FINISHING MILL

The chamber is also equipped with compound feed nozzles mounted around the center

column, connected with tubing to a coupling on the outside of the mill base.

Actual Chamber Capacity: 24 Cubic Feet

Process Channel Width/Depth: 16 x 18 Inches

Maximum Part Length: 40 Inches

Maximum Chamber Load: 7,200 Pounds

Min Lining in High Wear Areas: 3/4 Inches

The finishing mill chamber is mounted on twelve heavy-duty equally spaced spring

assemblies; retained in place by the use of polyurethane spring spools, mounted to base top

flange and chamber bottom. This design virtually eliminates spring failure and energy

transmission to the floor.

DRIVE SYSTEM:

A 10 horsepower, 230volt or 460 volt, 60 hertz, 1200 RPM, TENV, grease lubricated SWECO

Motion Generator of double-end shaft design, with two end bell assemblies. These motors are

specifically built for Sweco, incorporate oversized spherical roller bearings, and provide longer

service life than any competitors’ equipment. Eccentric weights, which provide the vibration

source, are mounted to the upper and lower shaft ends. Amplitude levels can be adjusted to

meet processing requirements by adding/removing upper and lower weight plates, and/or

adjusting the angular relationship (lead angle) of the upper to lower weights.

START-UP & MAINTENANCE:

One (1) Installation, Operation, and Maintenance Manual, one (1) Motion Generator Manual,

and one (1) tube of grease for bearing lubrication are included with the machine. A&B

Deburring Company will process your parts in our facility and set up the machine prior to

shipment so that the system arrives ready for turn-key installation. On-site assistance with

start-up and operator instruction is included within 250 miles of Cincinnati. If desired outside

of that radius, we would be glad to provide a quote.

OVERALL DIMENSIONS:

Diameter: 73 Inches

Height: 59 Inches

Load/Unload Height: 48.5 Inches

Approx. Ship Weight: 3,800 Pound
