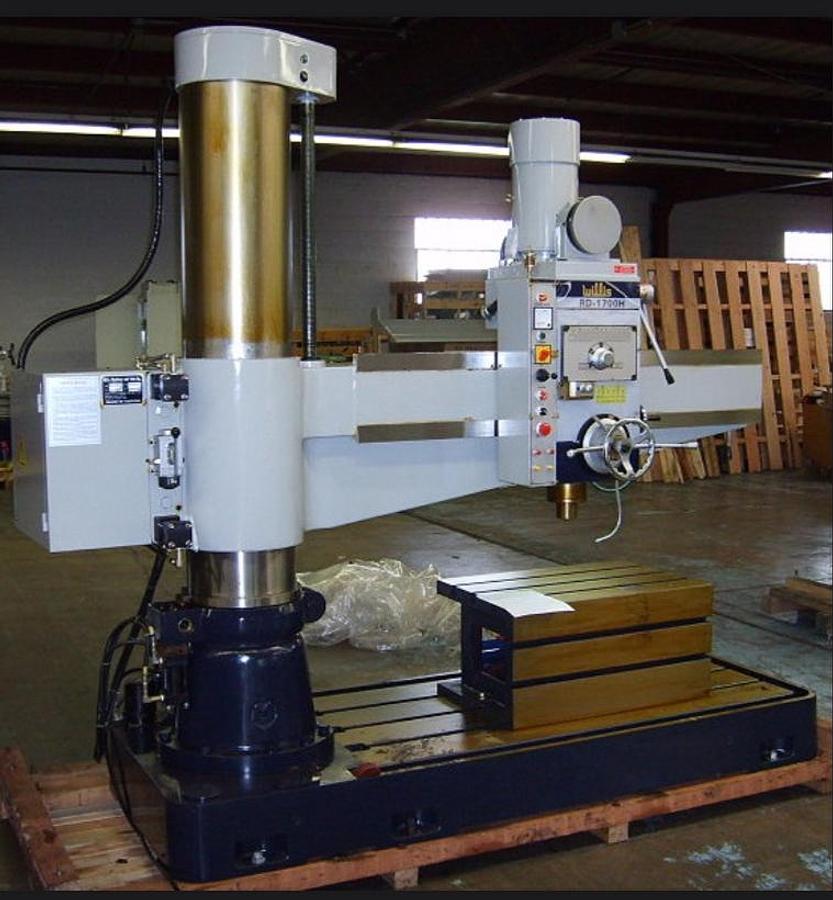

Willis RD1700H
Willis RD1700H
$50,020 (USD)
Location:Ohio
or
Call 1 501-897-1110
Description
7.5HP
65” arm
“C” box table
flood coolant,
hydraulic clamping,
and work light std
Specifications
| Manufacturer | Willis |
| Model | RD1700H |
| Year | 2026 |
| Condition | New |
| Stock Number | new |
| Drilling capacity, maximum (steel / cast iron) | 2-3/8” / 2 3/4” |
| Column diameter | 13.2'' |
| Max. distance spindle center to column | 65” |
| Min. distance spindle center to column | 14'' |
| Horizontal head travel | 51'' |
| Max distance spindle nose to base | 55'' |
| Base dimensions | 92” x 36” x 9” |
| Shipping dimensions | 110” x 45” x 101”H |
| Spindle stroke | 10'' |
| Spindle Taper | 5MT |
| Spindle RPM (12) | 30-1500 |
| Spindle feeds (6) “/rev | 0.004 - 0.024 |
| Spindle HP | 7.5 |
| Net weight | 7,100 lbs |
