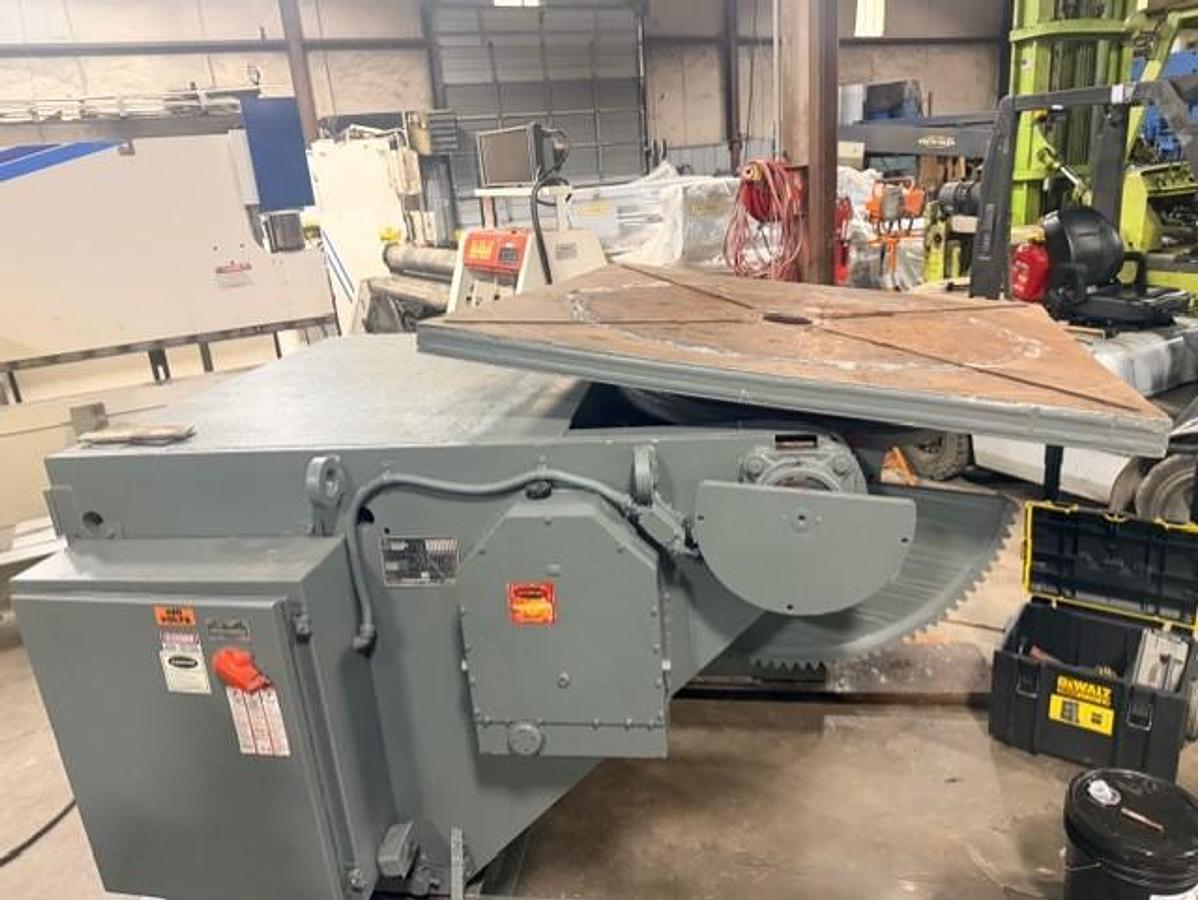

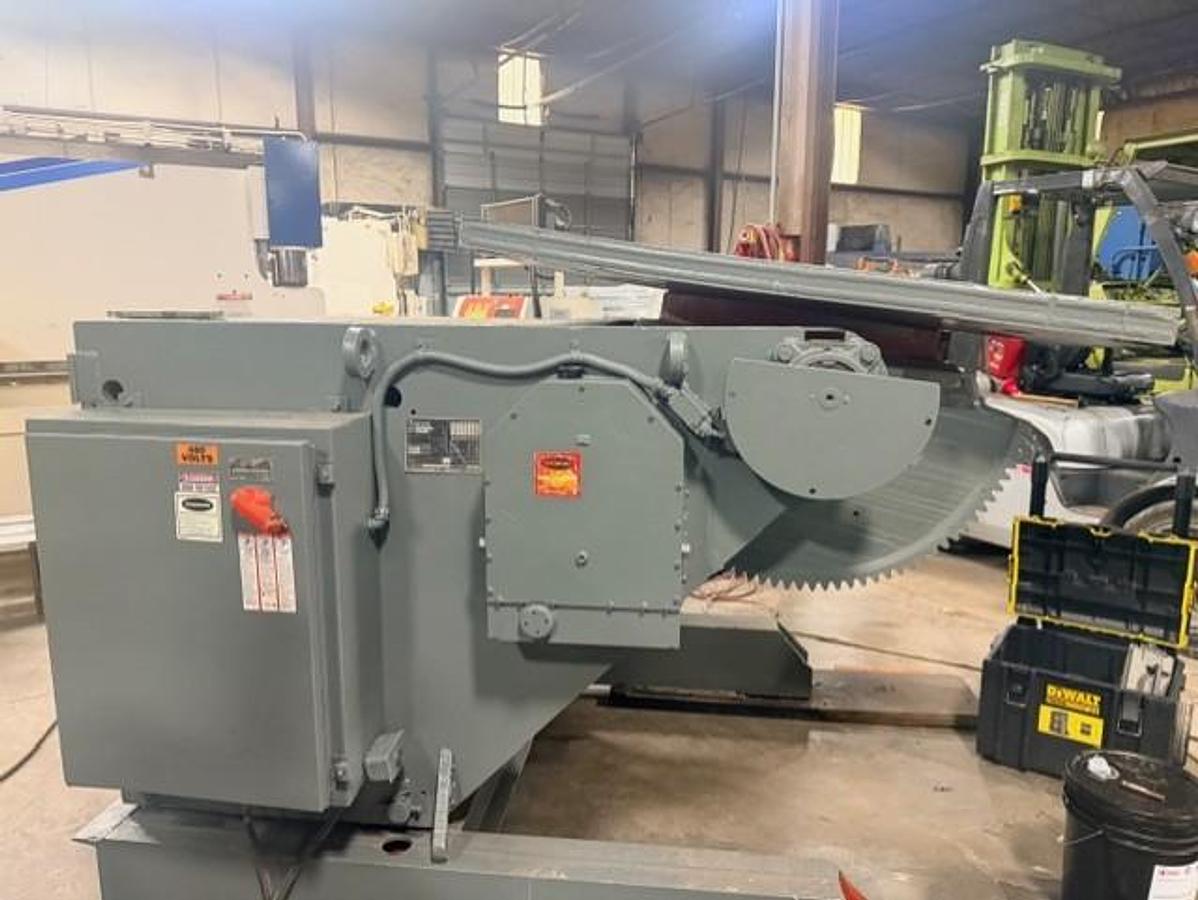

Aronson HD-240a

General Specifications

Tilt Torque 504,000 Lb / In

Rating Lbs at 12” 24,000 Lbs

Rotation Load Torque 288,000

Tilt 235 Deg in 46 Sec

Brake Motor 7.5 HP

Table Size 54” X 54”

Max Clamping Diameter 70”

Table Thickness 2.5”

Table Flat Min / Max 59” / 95”

Table Horizontal Min / Max 50” / 86”

Rotation Speed .006 to 0.6 RPM

Manual Adjustable Elevation 59 - 95”

EQUIPPED WITH:

115 V Remote Pendant

variable speed table

Footprint 90.25” X 63”

Approximate Overall Weight 7800 Labs
