12' Pacific FF90-12 II S Hydraulic Press Brake
12' Pacific FF90-12 II S Hydraulic Press Brake
$39,500 (USD)
Location:Little Rock, AR
or
Call 1 501-897-1110
Description

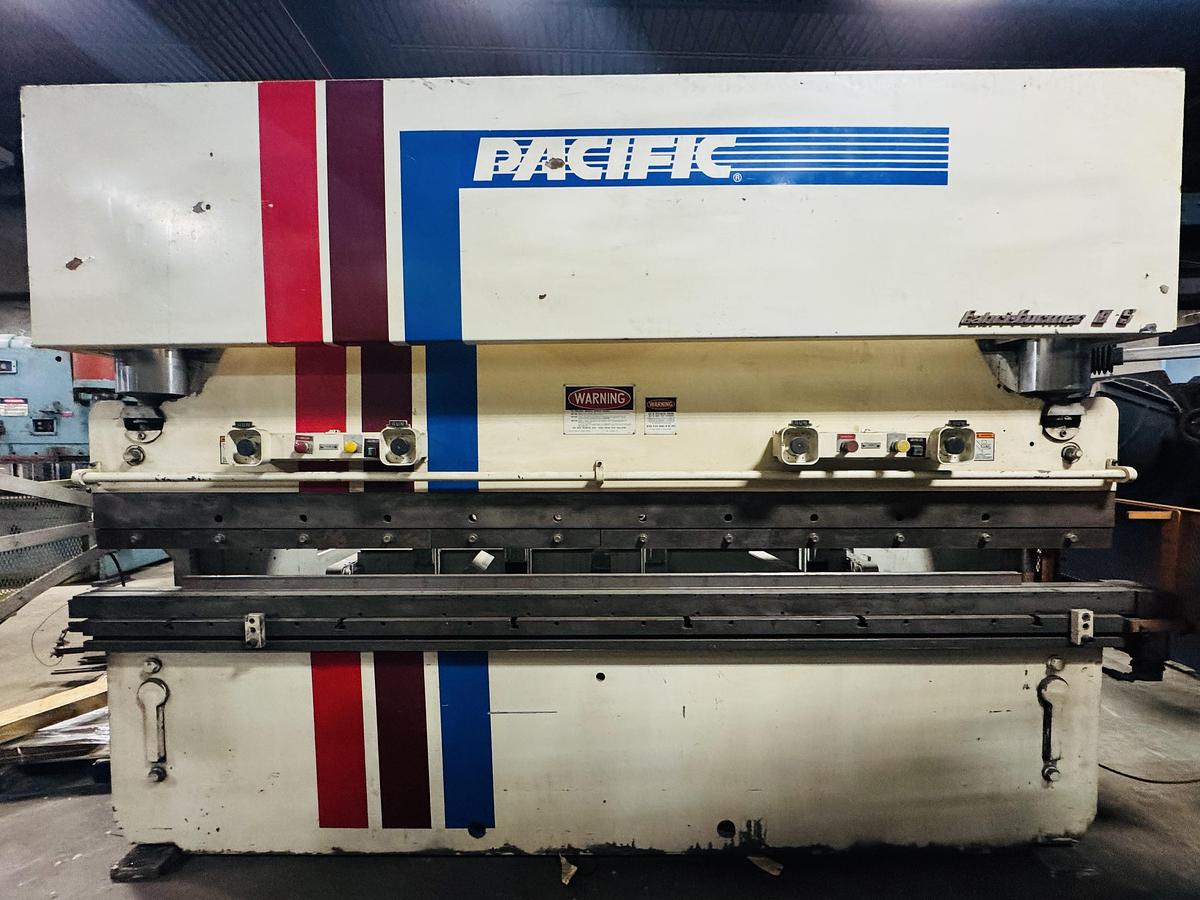

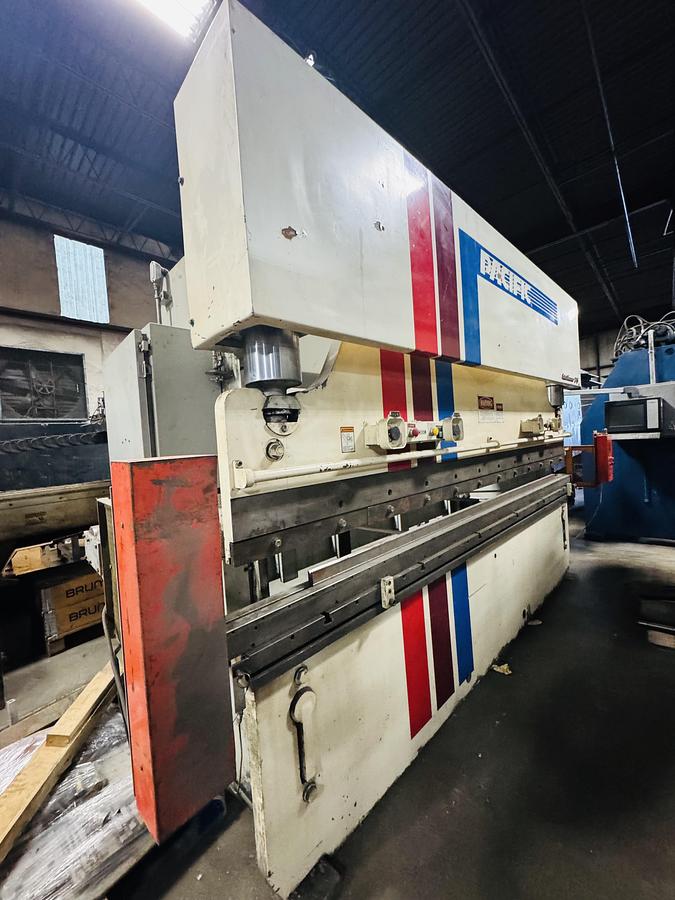

PACIFIC MODEL FF90-12 IIS CNC HYD. PRESS BRAKE
Capacity 90 Tons
Length Of Bed and Ram 12
Distance Between Housings 10'6"
Ram Stroke 8
Open Height 16
Closed Height 8
Bending Capacity 10 x 10 Ga.
Mild Steel Punching Capacity 60 Tons
Throat 6”
Width Of Bed 6”
Bed Height Above Floor 36”
Rapid Advance Speed
Forming Speed
Rapid Return Speed
Approximate weight 18,000 lbs.
Machine is equipped with Three-Axis (Y-1, Y-2, X)

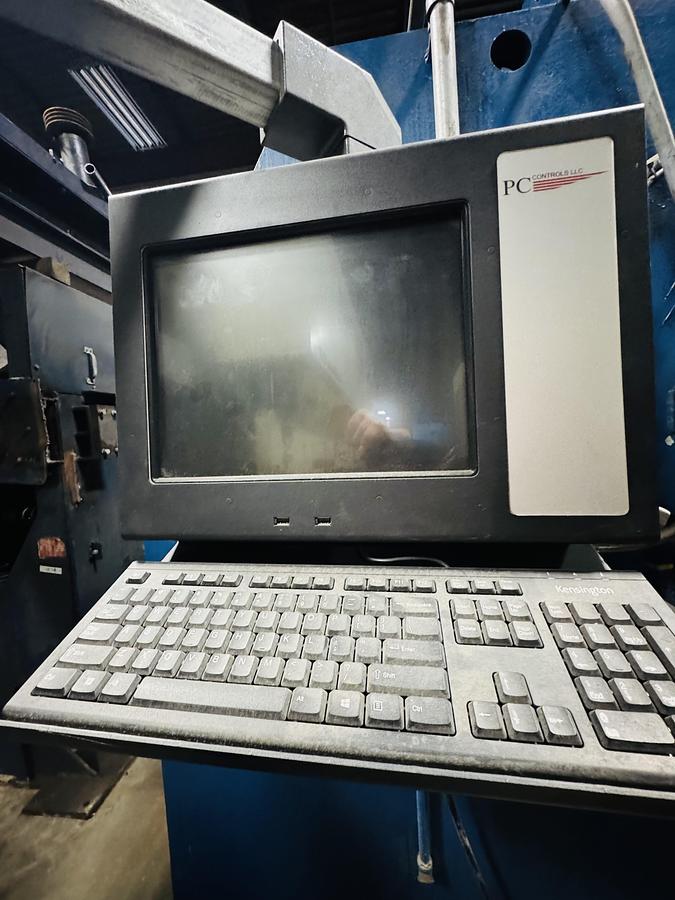

CNC Control Installed 2017

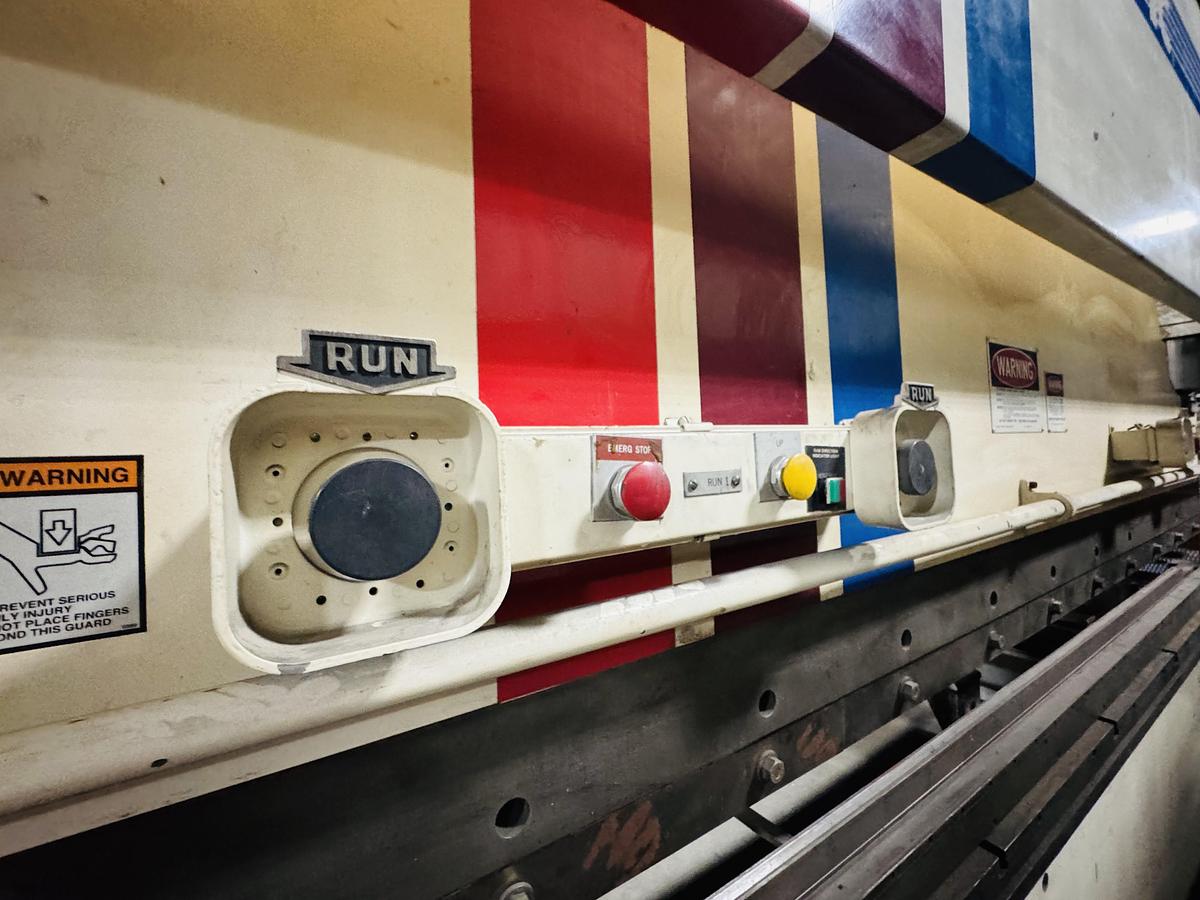

Dual Palm Buttons (2 Sets)
with w/Emergency Stop and Ram up Buttons, Electric Foot Switch, and Sectional Ram Clamps

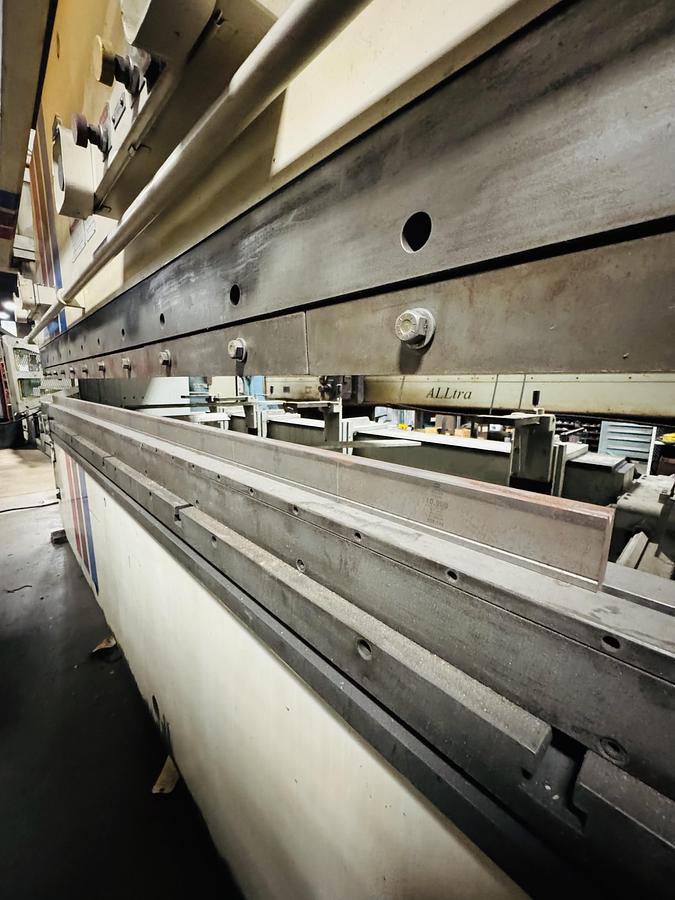

Full Length Die Holder with Deflection Compensation

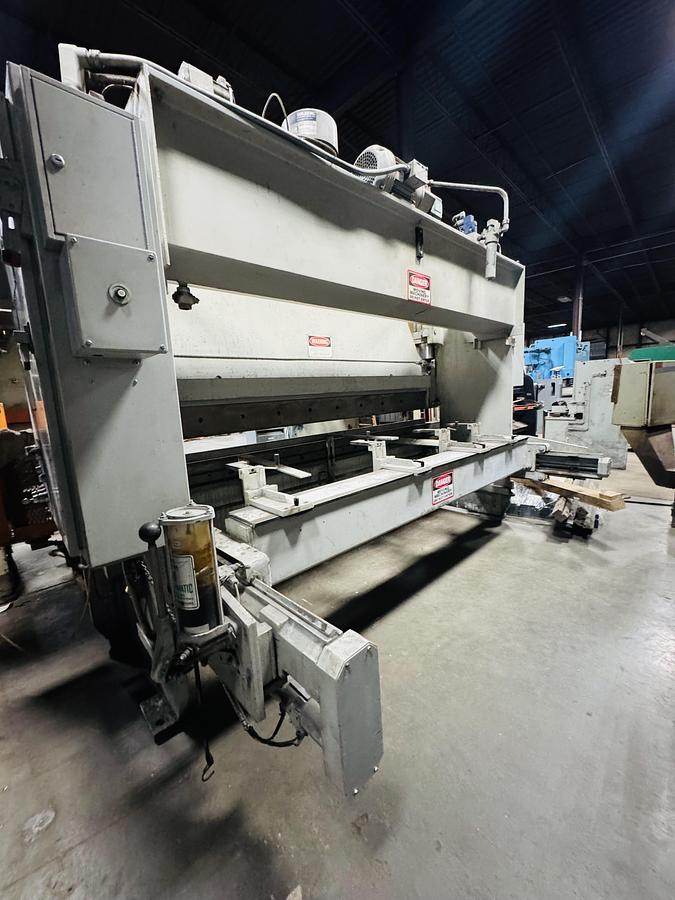

Work Supports
Fold Away Light Curtains
Specifications

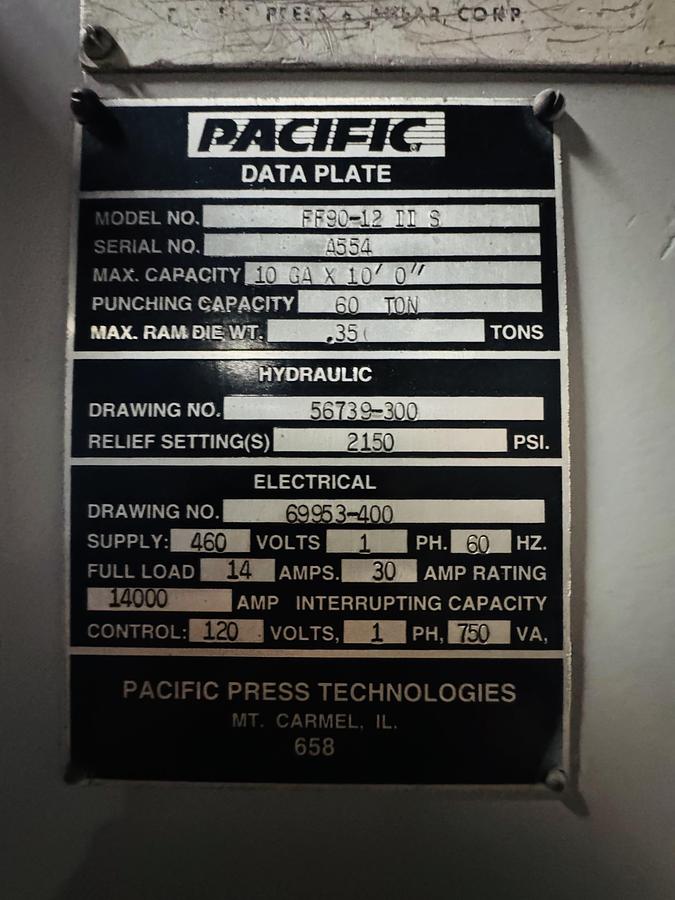

| Manufacturer | Pacific |
| Model | FF90-12 II S |
| Year | 1988 |
| Condition | Used |
| Serial Number | A554 |
| Stock Number | RH2025 |
| Tonnage | 90 Tons |
| Punching capacity | 60 Tons |
| Bed Width | 12' |
| Width Between the Housings | 10'6" |
| Max Capacity | 10 GA X 10' 0'' |
| Dimensions (w x l x h) | 13' x 7' x 9' |
| Machine weight | 18,000 |
| Hydraulic Relief Settings | 2150 PSI |
| Voltage | 460V |
