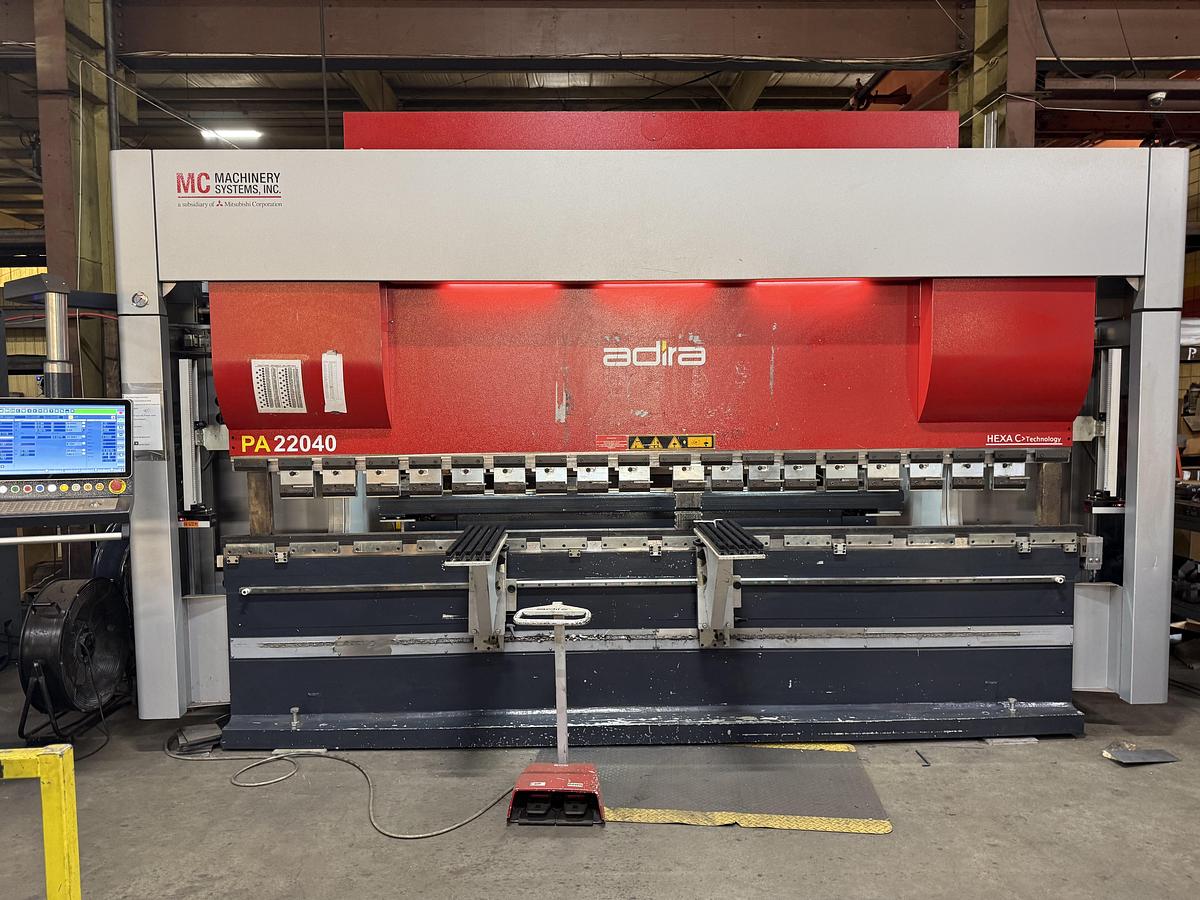

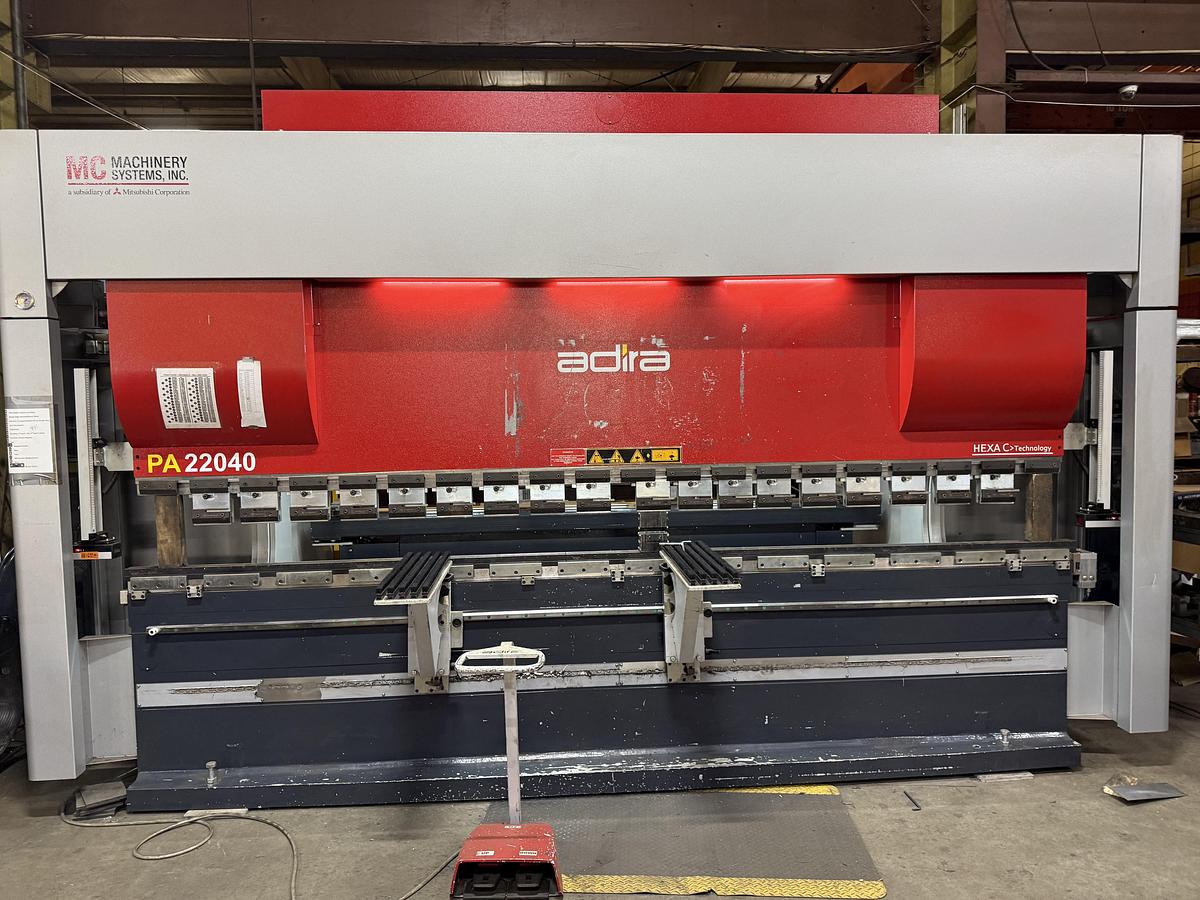

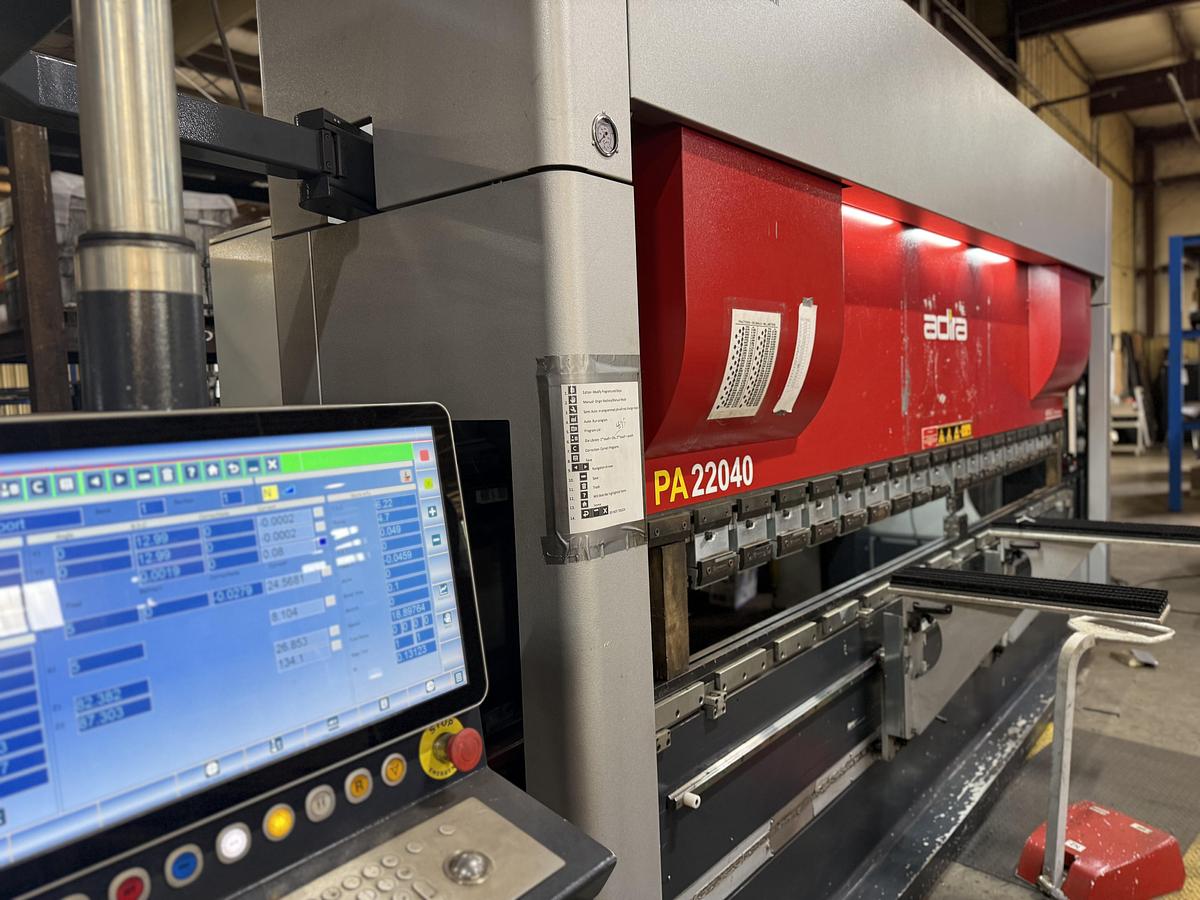

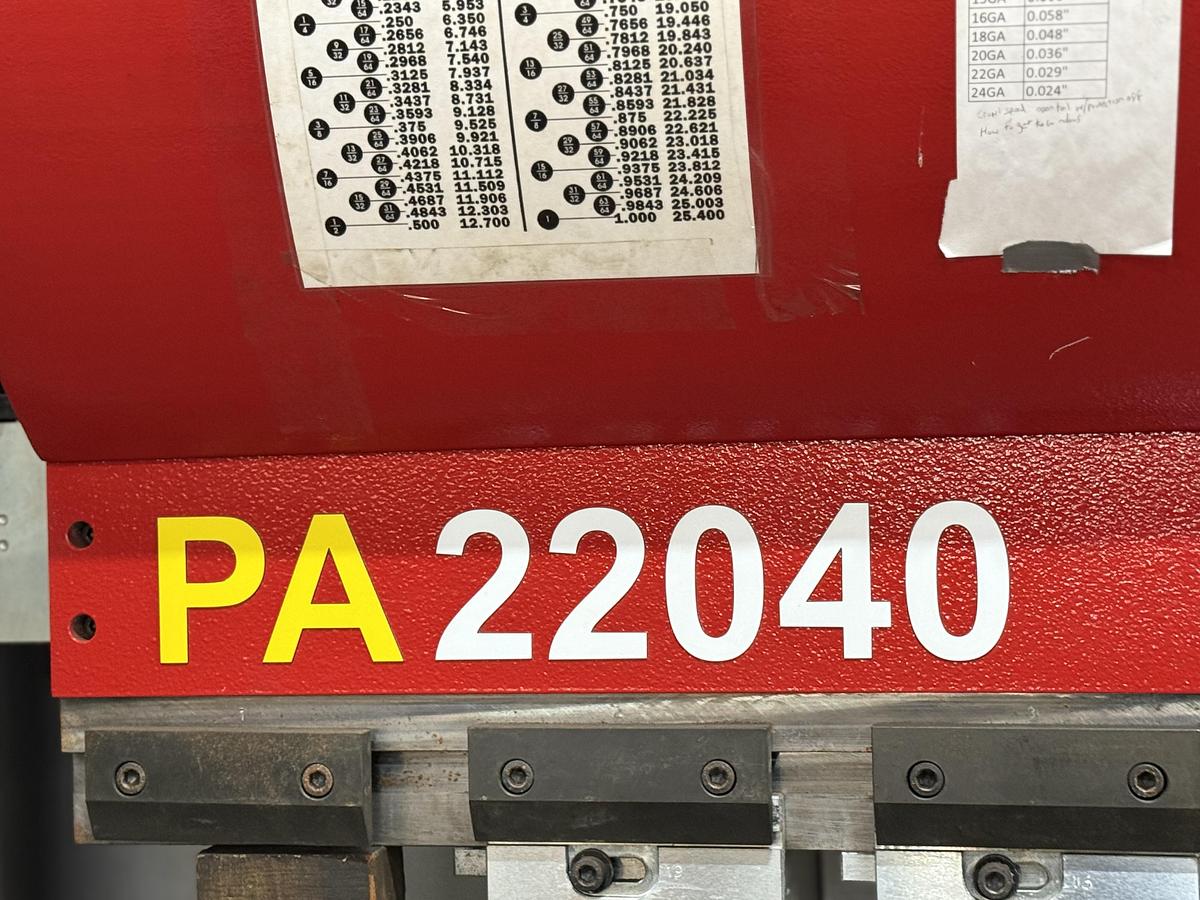

Adira 220-40 Press Brake
Adira 220-40 Press Brake
$120,500 (USD)
Location:Little Rock, AR
or
Call 1 501-897-1110
Specifications
| Manufacturer | ADIRA |
| Model | 220-40 |
| Condition | Used |
| Serial Number | M00001173 |
| Stock Number | 11152027wdmJH |
| Capacity | 2200 kN / 220 Ton |
| Bending length | 4000 mm / 157.48'' |
| Distance Between Housings | 3150 mm / 124.01'' |
| Max Stroke | 260 mm / 10.23'' |
| Open Height w/o tools | 500 mm / 19.68'' |
| Throat Depth | 400 mm / 15.74'' |

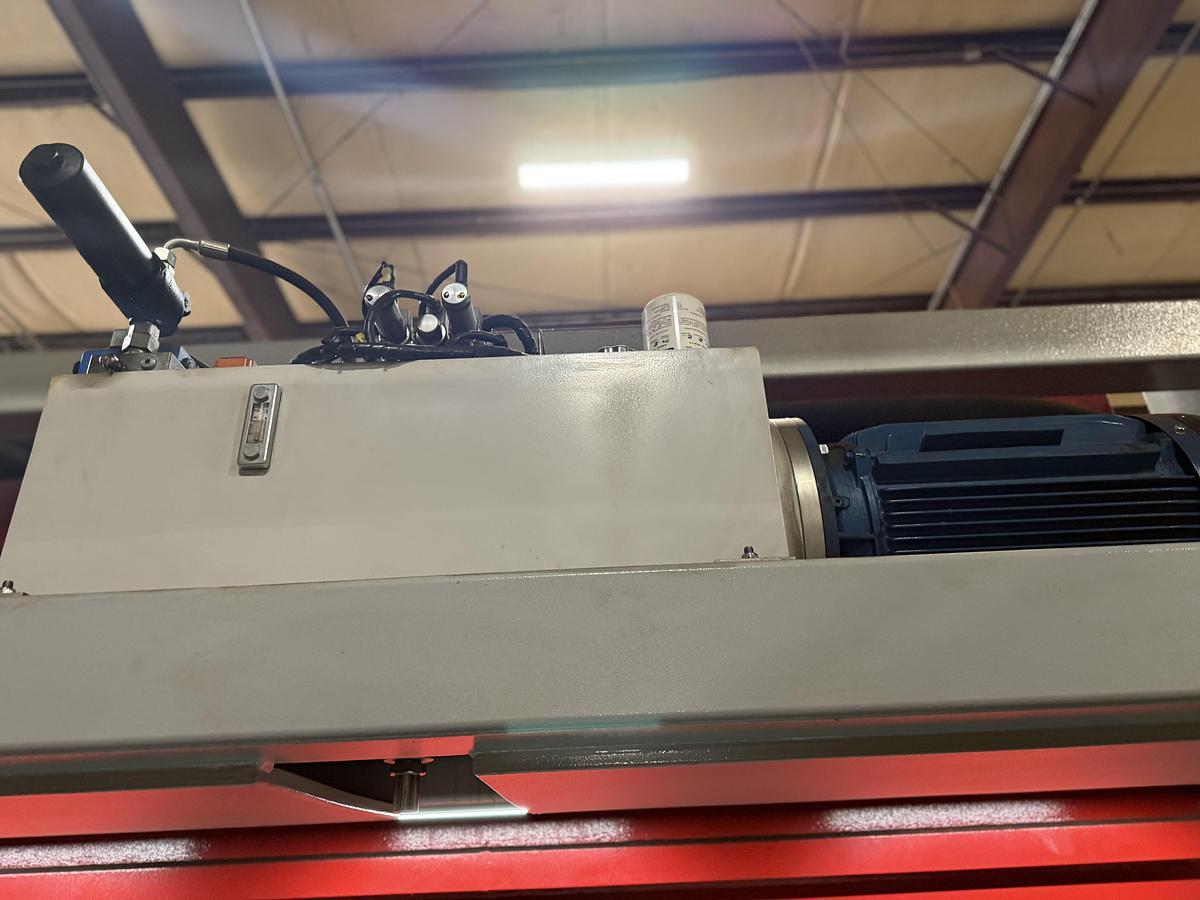

| Motor Power | 15 kW / 20 HP |
| Approach Speed | 130 mm/s 5.11 in/s |
| Working Speed | 8 mm/s 0.314 in/s |
| Return Speed | 85 mm/s 3.34 in/s |
| Stroke of Axis X | 625 mm / 24.60'' |
| Speed of Axis X | 500 mm/s 19.68 in/s |
| Stroke of Axis R | 200 mm / 7.87'' |
| Speed of Axis R | 50 mm/s 1.96 in/s |
| Stroke of Axis Z1/Z2 | 2750 mm / 108.26'' |
| Speed of Axis Z1/Z2 | 400 mm/s 15.74 in/s |
| Min. machine Length | 4980 mm / 196.06'' |
| Max. machine length (C) | 5780 mm / 227.55'' |
| Max. width (D) | 2180 mm / 85.82'' |
| Max. height (E) | 3120 mm / 122.83'' |
| Transportation height | 2880 mm / 113.38'' |
| Approx. weight | 13500 Kg / 29,763 lbs |
| Height of work station (F) | 930 mm / 36.61'' |
