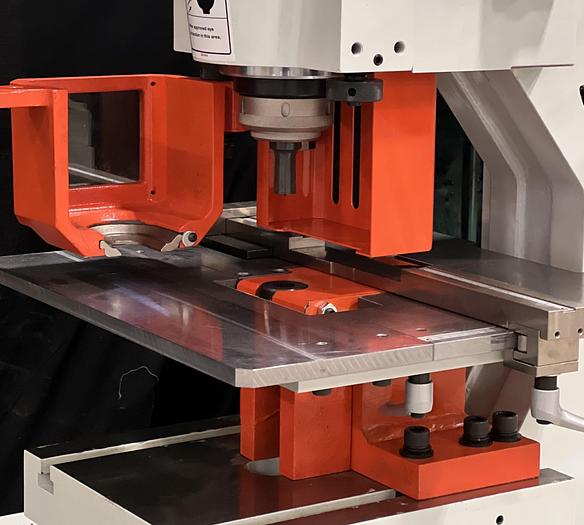

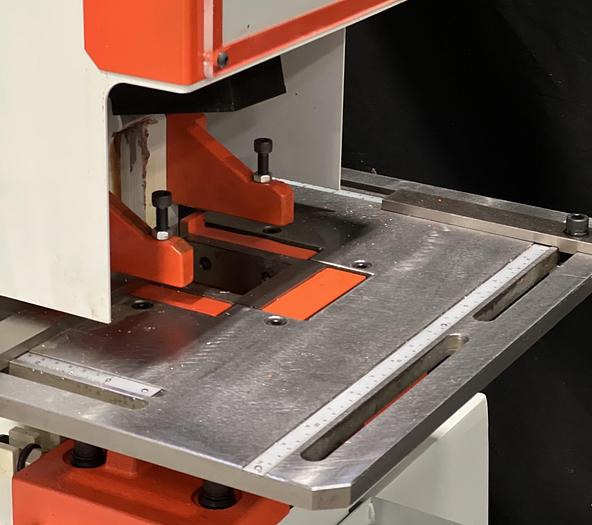

New Sunrise IW-66S Iron Worker

New Sunrise IW-66S Iron Worker

$19,745 (USD)

Location:Little Rock, AR

orCall 1 501-897-1110

Description

SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 Tons to 185 Tons and feature two High-Speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well engineered products for high power, quality and reliability at an incredible price.


SUNRISE ironworkers have two foot pedals so separate punching and shearing operations can be safely performed simultaneously without interference.

The low pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling and more.

The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom designed tooling.

SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the integrated spin-on return line filter, bronze bushings and gibings, multi-sided blades and the highest quality components as well a standard two year parts warranty.

Specifications

ManufacturerSunrise
ModelIW-66S
Year2023
ConditionNew
Serial Number23055201
Punching capacity66 Tons 7/8'' in 3/4'' -- 2'' in 5/16''
Depth of Throat12''
Angle Shear5'' x 5'' x 1/2'' - 3'' x 3'' x 3/8'' Miter
Plate Shear14'' x 9/16'' or 10'' x 3/4''
Notcher2'' x 3-1/2'' x 3/8''
HP7.5
Power3 Ph / 60 Hz / 240 V
Machine SizeS Model 67'' x 32'' x 68''
