Victor 2060S

Victor 2060S

$17,500 (USD)

Location:Little Rock, AR

orCall 1 501-897-1110

Description

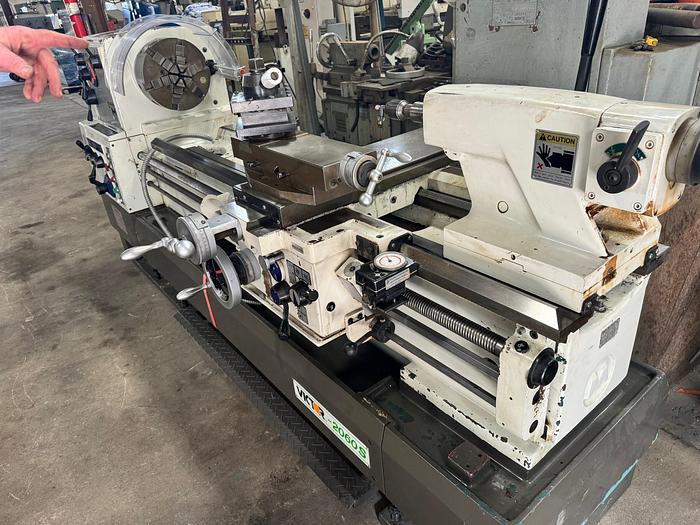

Precision built lathe combines accuracy, rigidity and 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability

Features:

  • 3-1/8" thru spindle hole
  • One-piece high rigidity and low vibration base
  • Thermal treated Meehanite cast bed

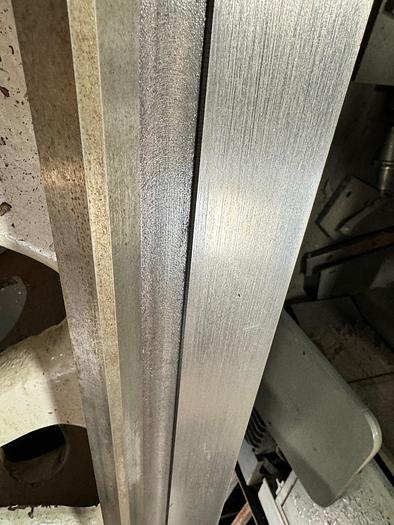

  • Hardened and precision ground bedways
  • Thermal treated and precision ground alloy gears
  • Universal gearbox for both inch and metric threading
  • Double reservoir oil bath type cross slide
  • Safety overload device
  • Wear-resistant phosphor bronze leadscrew nuts
  • High capacity coolant tank provides sufficient coolant output
  • 10 HP main motor delivers full power at all 12 speeds

Standard Accessories:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • D.P. / module thread change gears

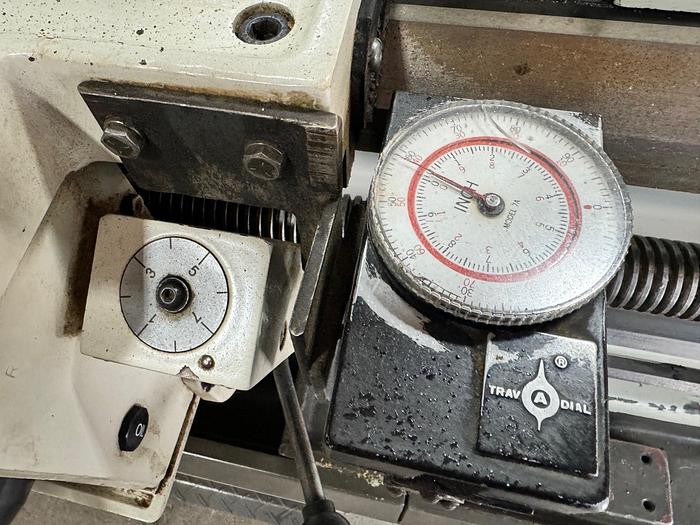

  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #4


Specifications

ManufacturerVictor
Model2060S
ConditionUsed
Stock Number1337
Swing over bed20
Swing over cross slide13
Swing over gap29.13
Bed Width11.81
Spindle bore diameter3.13
Spindle bore taperMT#7
Taper of center in sleeveMT#4
Spindle noseD1-8
Number of spindle speeds12
Range of spindle speeds40-2000 RPM
Speed selections12
Range of longitudinal feeds.002-.03 /rev
Range of cross feeds.0008-.011 /rev

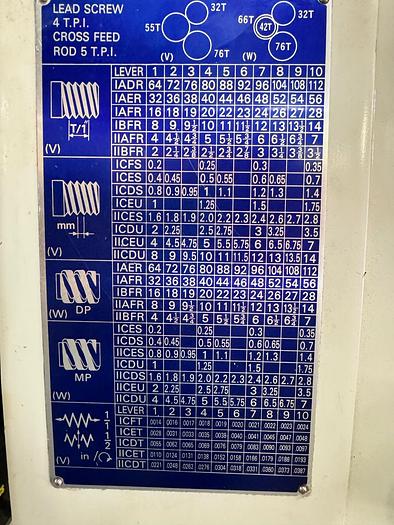

Inch threads4-56 TPI x 36 Kinds
Metric threads05-7mm x 17 Kinds
Cross slide travel10.83
Compound slide travel4.92
Tailstock taper centerMT#4
Tailstock quill travel5.91
Main motor10HP
Coolant pump1/8 HP
