Sharp LMV-42 Table 9 x 42

Sharp LMV-42 Table 9 x 42

$8,550 (USD)

Location:Little Rock, AR

orCall 1 501-897-1110

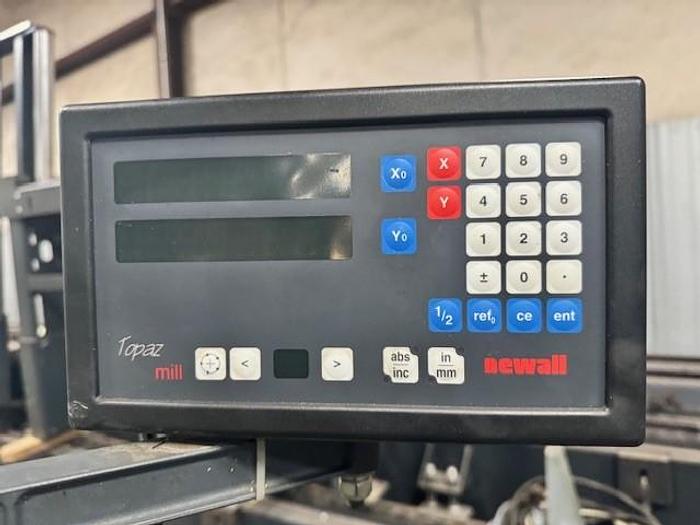

Newall 2 Axis DRO

X Power feed.


This model has many unique features compared with most of the other similar machines on the market.

The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed.

Tapered gibs installed on the ways allows easy adjustment for long term usage..

The bottom of the saddle, instead of the top of the knee ways, which rides on the knee, is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.

  • 9 x 42 ins table, 12 x 30 in. travel
  • R-8 spindle, 3 hp , variable speed (60-4,500 rpm)
  • Spindle runout of no more than 0.0002” TIR
  • Hard chromed ways provide long wear resistance
  • Head tilt side to side, up and down
  • One shot lubrication with back flow valve
  • Tapered gibs for adjustment
  • Dual clamps on knee and saddle that locks the knee and table evenly to the column and saddle to avoid skewing. Handles on the clamp are adjustable to 12 different positions.

Standard Accessories

  • One Shot Lube System
  • Hard-Chromed Ways
  • Front and Rear Rubber Way Covers
  • Tool box with tools
  • Wired 220V or 440V.

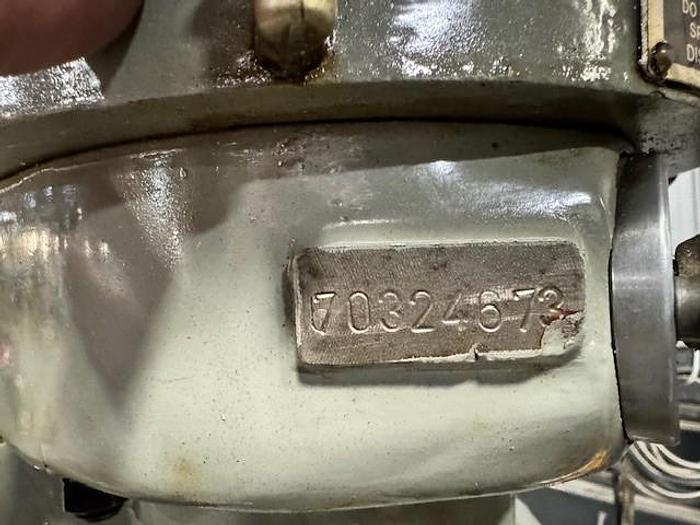

Serial Number70324673
Table Size9" x 42"
T- Slots3
Table Travel X30"
Table Travel Y12"
Quill Travel Z5"
Knee Travel Vertical16"
Spindle Center to Column6.75-18.5"
Spindle Nose to Table Top2.12-18"
Spindle Nose TaperR-8
Spindle Speed Range60-4500 RPM
Spindle Motor HP3
