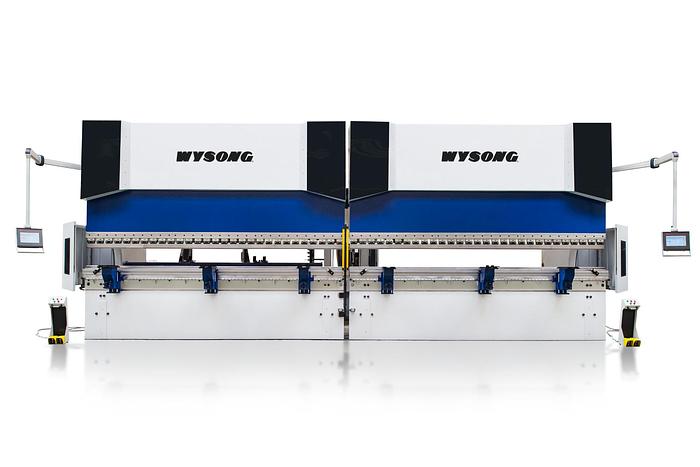

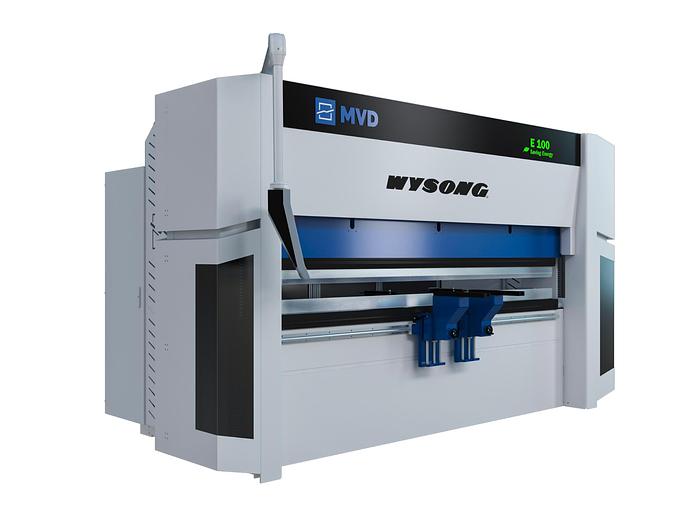

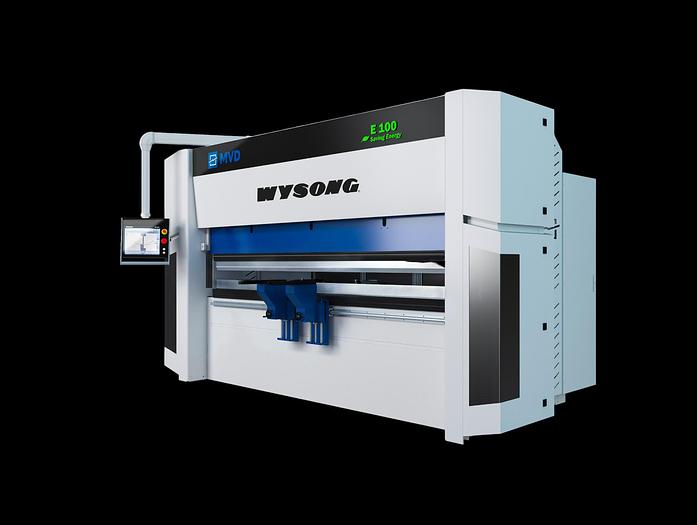

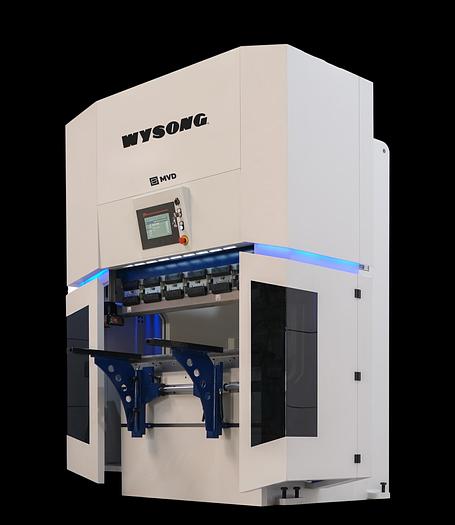

WYSONG Press Brake from 60 to 440 ton

WYSONG Press Brake from 60 to 440 ton

Contact us for price

Location:Factory

orCall 1 501-897-1110

Description


Quality built to last. Wysong equipment is well known throughout North America for being among the most durable machines on the market.

We take great pride in our equipment and customer relationships, and the generations of employees


Quality built to last. Wysong equipment is well known throughout North America for being among the most durable machines on the market.

We take great pride in our equipment and customer relationships, and the generations of employees responsible for creating this reputation for quality have made Wysong a leader in the machine tool industry in North America. Quality is not just an idea—it’s culture, and it shows with the dedication to excellence from every employee.

Want to learn more about our equipment lines? Contact us today.

Want to learn more about our equipment lines? Contact us today.



STANDARD FEATURES



  • Delem Touch Screen Control
  • Y1,Y2,X,R CNC 4 Axes
  • 310mm Stroke, 410mm Throat Depth
  • ± 0,03 accuracy SERVO motorized back gauge. X=750mm, R=250mm

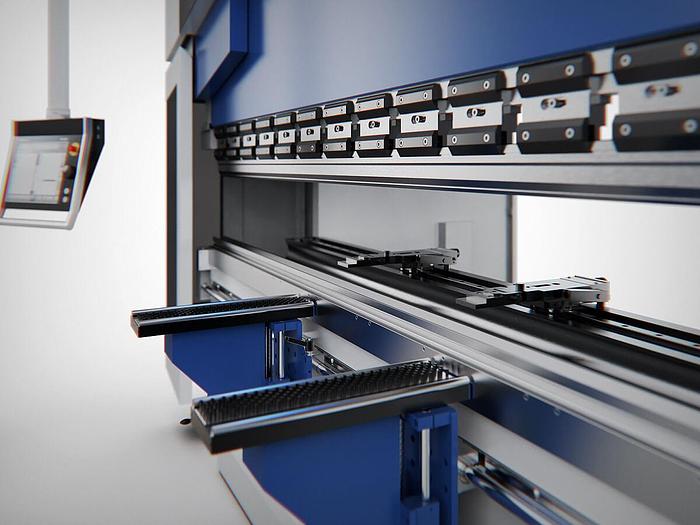

  • Quick clamp Promecam punch tool holder
  • Sliding front sheet support arms
  • Manual Anti-deflection crowning with original Wila wedges
  • GIVI optic linear scales (Italy)
  • Standard punch tools (H: 67, 85°, R:08)
  • Standard die tools (4 Way Die =16-22-35-50mm, 85°, H:60)
  • LED illumination on RAM
  • Front laser safety



AVAILABLE OPTIONS



  • Upgrade to 4-6 axis back gauge
  • Deep throat
  • Hydraulic oil temp control
  • Manual/automatic lubrication
  • Cabinet cooling
  • Rolleri Rol200 hydraulic punch clamping
  • Wila hydraulic punch clamping
  • Wide bottom table for Multi Vee dies
  • Motorized Anti-deflection crowning with original Wila wedges
  • 1.000mm X axis travel
  • Additional back gauge fingers


Specifications

ManufacturerWYSONG
ModelPress Brake from 60 to 440 ton
ConditionNew
