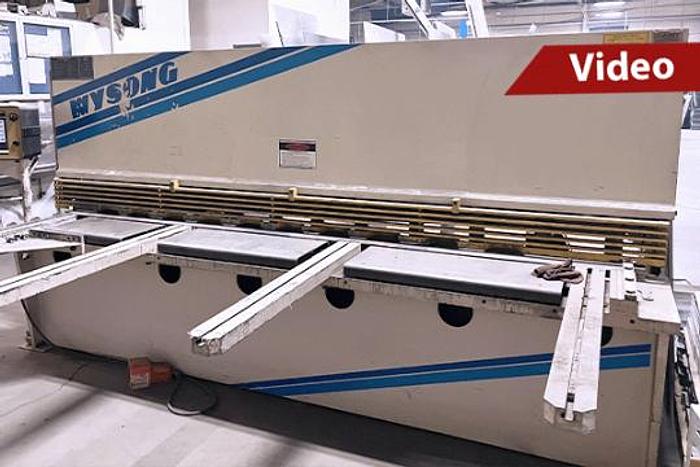

1996 Wysong H-2510 Hydraulic Shear H-2510
1996 Wysong H-2510 Hydraulic Shear H-2510
$29,500 (USD)
Little Rock, AR
orCall 1 501-897-1110
Description
Shearing Capacity, Mild Steel 10' x 1/4"
Shearing Capacity, Stainless Steel 10' x 7 GA
Throat Depth 3"
Rake Angle Inch Per Foot 5/16"
Number Of Holddowns 11
Hold down Tonnage, Total 32 TONS
Strokes Per Minute, Full Capacity Full Length 21 SPM
Strokes Per Minute, Full Capacity Short Stroke 45 SPM
Strokes Per Minute, Reduced Cap Full Length 40 SPM
Strokes Per Minute, Reduced Cap Short Stroke 60 SPM
Main Motor, Horsepower 20 HP
Equipped with:

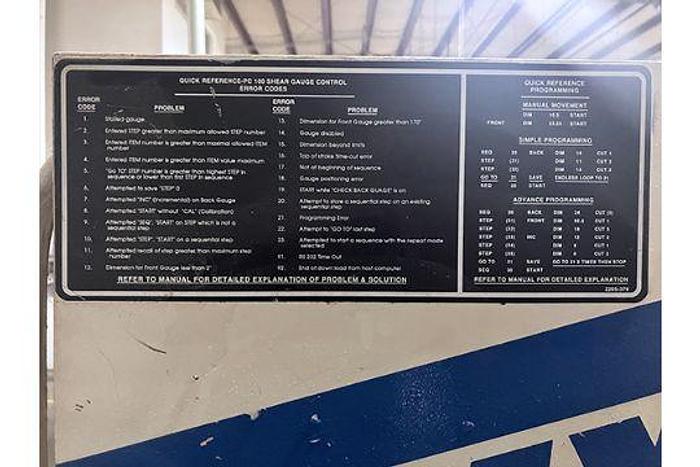

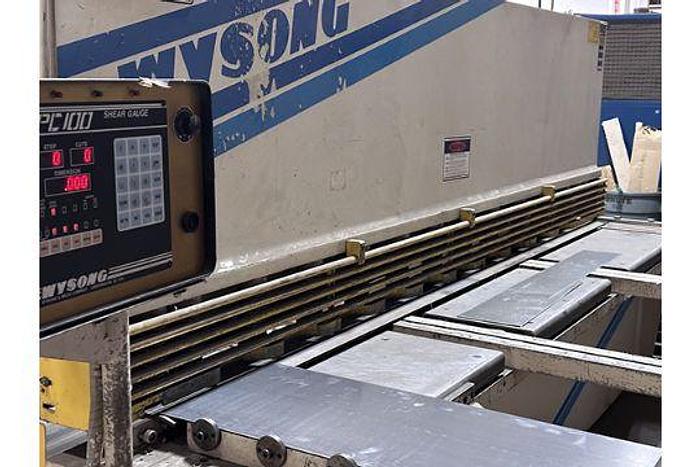

Wysong "PC100" CNC Control
Automatic Swing-Up Back Gauge
Sheet Stacker - Squaring Arm

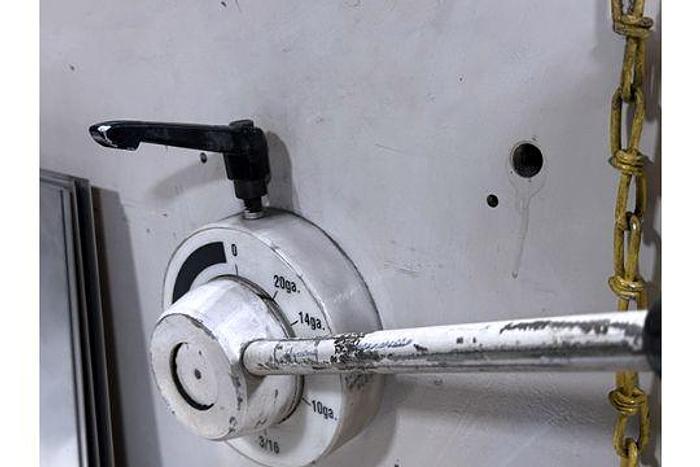

Blade Gap Adjustment
Hydraulic Hold-Downs
Overall Dimensions: L x W 162" x 76"
Overall Height 73"
Weight Approximately 17000 LBS
Specifications
| Manufacturer | Wysong H-2510 Hydraulic Shear |
| Model | H-2510 |
| Year | 1996 |
| Condition | Used |
| Capacity | 10' X .250 Mild 7GA x 10' Stainless |
| Blade length | 122" |
| Strokes per Minute | 10-12 |
| Throat depth | 3" |
| NC Back Gauge | PC100 Control |
| Front Support Arm | 24" |
| Hold downs | 11 |
| Blade Rake | 2 Degree |
| Motor HP | 20 HP, 220V/70A, 3 Phase 440V/35A, 3 Phase (OPTIONAL) |
| Shipping weight | 17,000 LBS |
| Dimensions (w x l x h) | 162" x 76" x 73" (with back gauge and squaring arm) |
