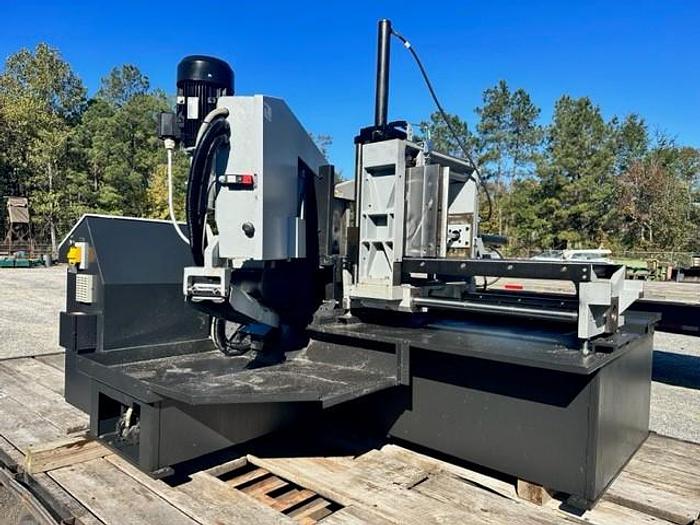

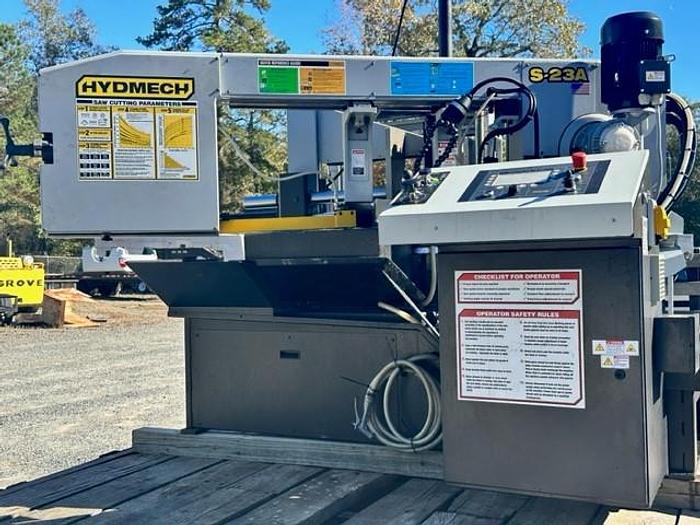

2022 HydMech Group S-23A With Bundling

2022 HydMech Group S-23A With Bundling

$47,500 New Price 51500.00

Little Rock, AR

orCall 1 501-897-1110


Delivery: Stock Terms: Net before Shipment F.O.B.: Little Rock, AR

Standard Machine Features • Easy swing, heavy duty cast iron saw head • Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor. • 8.8 HP VFD. True direct blade drive – no belts/pulleys • On-demand hydraulics save energy • Blade chamber separates material from cut part • Cast iron band wheels • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue • Replaceable blade brush • Robust steel base • Easy to read angle scale with angle locking mechanism • Cast iron guide arms mounted on linear rails is adjustable for proper spacing. • Easy access electrical panel • Out of stock switch • Mechanical band tensioning with digital readout • Hydraulic positive down feed • Replaceable carbide guide inserts • Safety door interlocks • Flood coolant with wash down hose • Laser light • Work light • Variable vise pressure SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.


ManufacturerHydMech Group
ModelS-23A With Bundling
Serial NumberSold new for 51500 in March 2023 Traded in on a larger machine
Stock Number00048
CapcityRectangular Round
90°16" x 20" 14"
45°16" x 14" 14"
30°16" x 8.5" 8.5"
Blade size1.25” x 16’ 10”
Blade drive8.8 HP VFD
Machine voltage240, or 480
Blade speed75-350 SFM
Coolant tank capacity12 Gallons
Work load5,000 lbs.
Machine weight4,200 lbs.
Table height33"
Dimensions (w x l x h)101” x 95” x 61”
