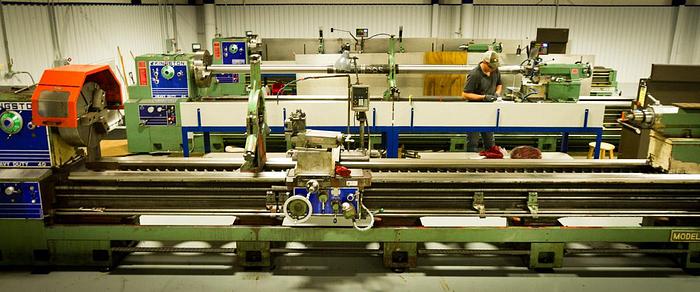

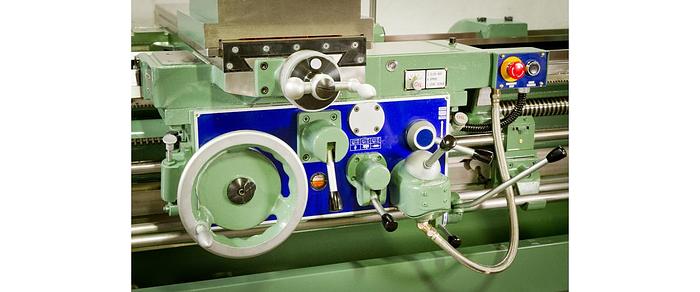

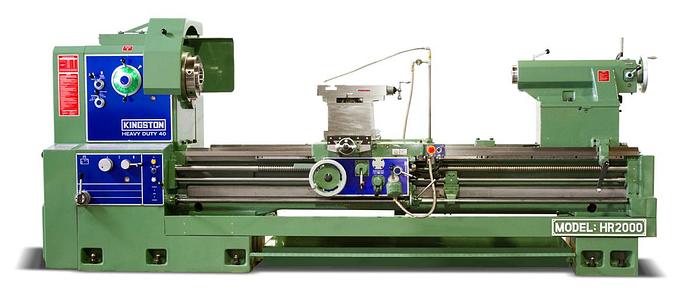

Kingston HR
Kingston HR
Contact us for price
Factory, CA
orCall 1 501-897-1110
Description
STANDARD EQUIPMENT & ACCESSORIES
• Main Motor: 20 HP, 230V / 460V, 3 Phase, 60
Cycle, Switch and Wiring Complete
• 4.09” Spindle Bore
• Spindle Nose: D1-11 Camlock
• Headstock Spindle Adapter ASA#450 to MT#6
• Chuck Guard
• Set of Change Gears for Special Leads
• Hardened and Ground Bedways
• Tool Slide with T-Slot
• 4-Way Rapid Traverse
• Thread Chasing Dial
• Tailstock Safety Locking Chock
• 2-Speed Drive Tailstock Quill
• Coolant System with Pump and Piping
• Pull Drawer Chip (Coolant) Pan
• UL Electrical Components & Cables
• Tool Box with Necessary Wrenches & Spanners
• Instruction Manual and Parts List
Specifications
| Manufacturer | Kingston |
| Model | HR |
| Condition | New |
| Swing over Bed | 30" 34" and 40" |
| Swing in Gap | 41", 45" and 51.5" |
| Bed Length | 80" 120",160",200",240",280" and 320" |
| Swing over Crosslide | 20.7", 25.1" and 31" |
| Spindle Bore | 4.07" |
| Spindle Mount | D1,11 |
| Spindle speeds | 8-800 RPM |
| Motor HP | 20 HP |
