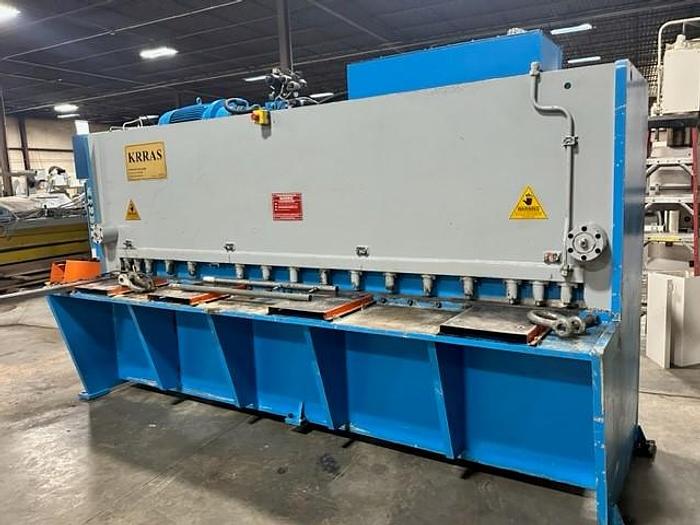

Krras RAS 306 1/4 X 10 Shear
Krras RAS 306 1/4 X 10 Shear
$23,500 (USD)
Location:Little Rock, AR
orCall 1 501-897-1110
Description
This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!
Standard Accessories:
Variable rake angle adjustment
Rapid blade gap adjustment
4 edge high carbon high chrome D2 quality shears blades
Front operated motorized backgauge range to 39"
Shadow line lighting & well designed finger guard for clear view of cutting line
Safety foot switch operation.
Top blades will automatically return to top position when foot is removed from foot pedal
39" side squaring arm with disappearing stops
Independent clamping of individual hold downs
Specifications
Manufacturer | Krras |
Model | RAS 306 1/4 X 10 Shear |
Condition | Used |
Serial Number | 1265 |
Stock Number | 00046 |
Capacity | 10' X .250 Mild 1/8" x 10' Stainless |
Blade length | 122" |
Strokes per Minute | 8-10 |
Table height | 34.5" |
NC Back Gauge | 39" Powered |
Front Support Arm | 24" |
Blade Rake | 1-3 Degree |
Motor HP | 15 HP |
Shipping weight | 13,850 LBS |
Dimensions (w x l x h) | 148" x 70" x 85" |
