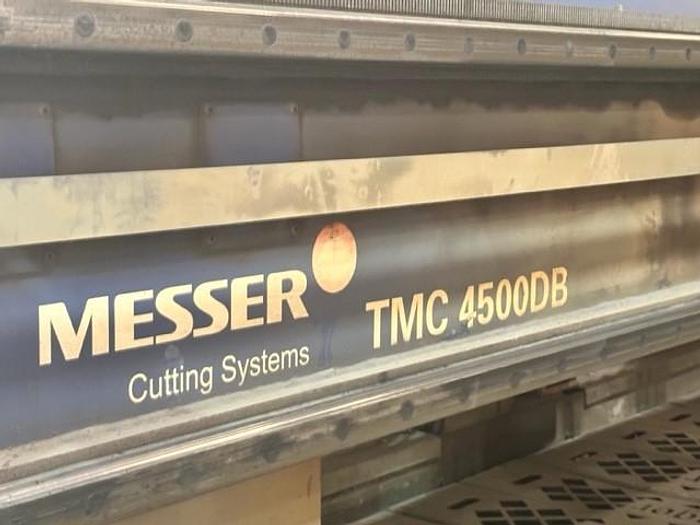

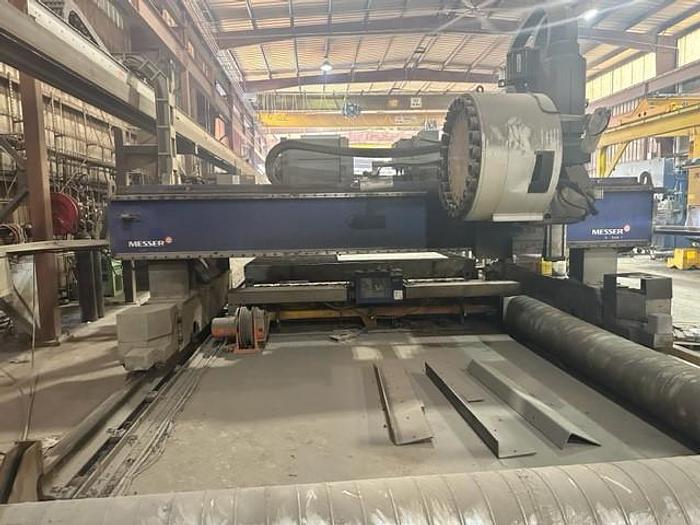

2017 Messer Cutting Systems TMC4500DB
2017 Messer Cutting Systems TMC4500DB
Contact us for price
Mid South
Description

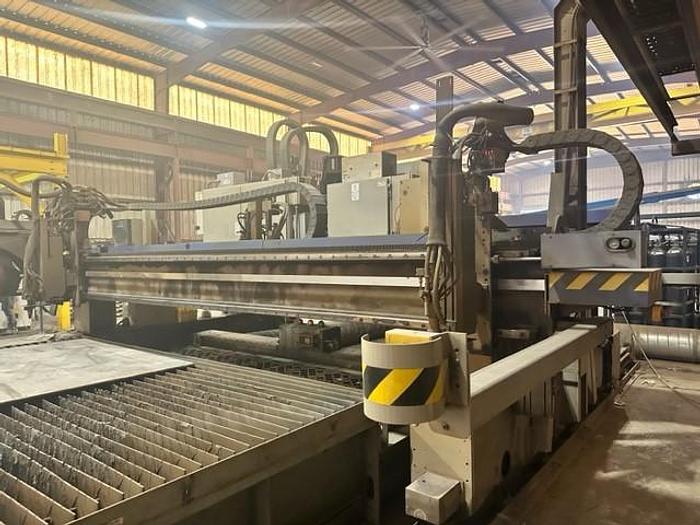

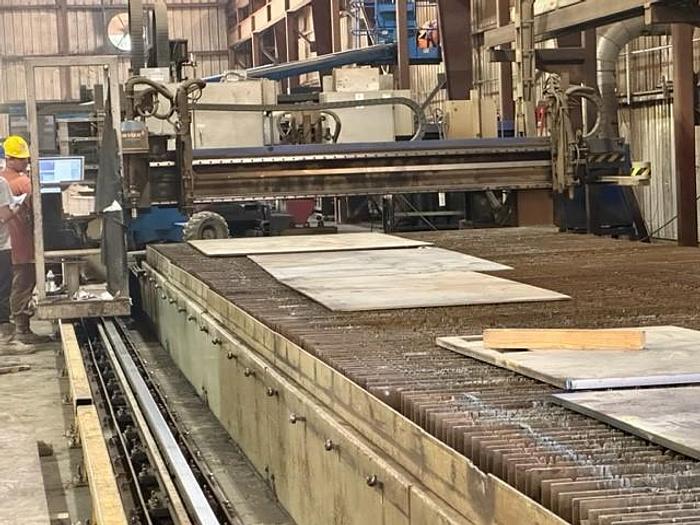

Messer Cutting Systems 12' x 48' 400 amp Cutting Plasma, with Bevel Head and 2 Oxy Fuel Torches, Drill with tool changer, air knife, Down Draft Table with dampers and dust and fume collection system.
Equipped with:
Bevel Plasma Head
2 Oxyfuel Torches

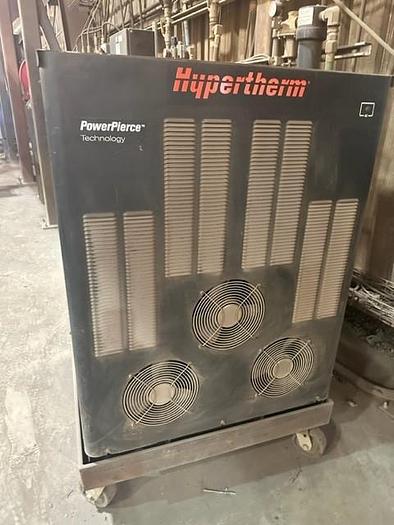

Hypertherm HPR400xd
Messer Drill Head with Tool Changer (need repaired)
Chip Air Knife for Drilling
Farr Gold Series Dust Collection
Messer Global Control

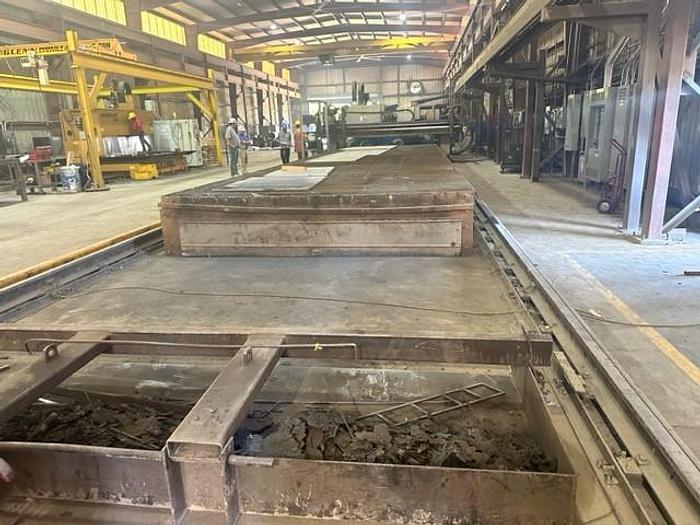

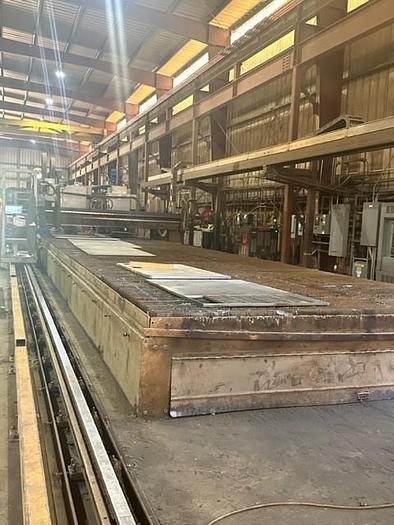

Messer Down Draft Table with auto dampeners

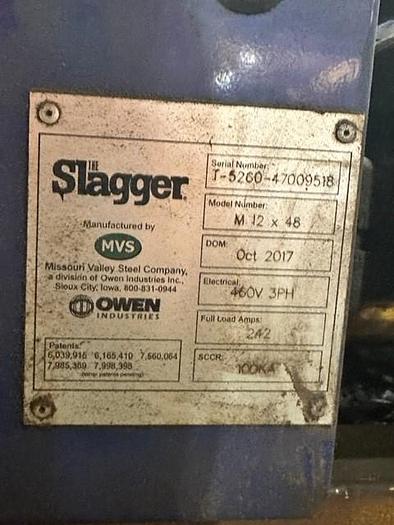

Messer Slagger System
Control:
Messer Global Control
Windows 7 Professional (32-bit)
24″ LED color touch screen
Intel®, 1.9 GHz, 2 cores
2GB DDR3 – RAM
2.5″, 320 GB SATA hard drive
Four (4) USB ports
UPS battery backup
Fiber-optic I/O bus communication system
8-position joystick
Hand wheel/Feedrate override input device
10/100/1000 MBaud Ethernet port
Specifications
| Manufacturer | Messer Cutting Systems |
| Model | TMC4500DB |
| Year | 2017 |
| Condition | Used |
| Stock Number | 00038 |
| Travels | 12' x 48' |
| Max Cutting Capacity Oxy | 8" |
| Max Cutting Capacity Plasma | 2" Pierce, 3" Edge Cut |
| Power Supply | Hypertherm HPR 400 XD |
| Machine Speeds | 521" Per Minute |
| Rapid Traverse Speeds | 1000" Per Minute |
| Repeatability | .010 |
| Accuracy w/o comp | +- .015 over 72" square |
| Accuracy w comp. | +- .015 over all table |
