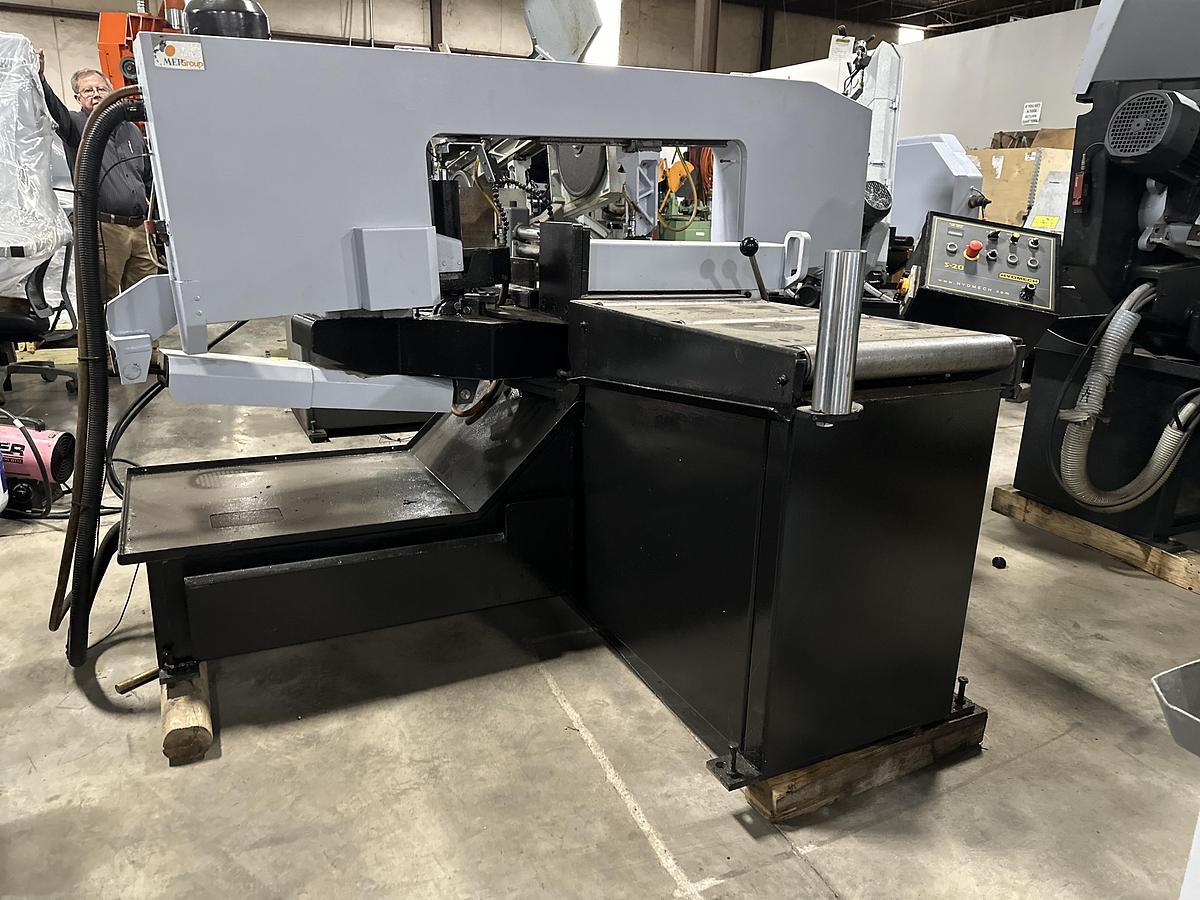

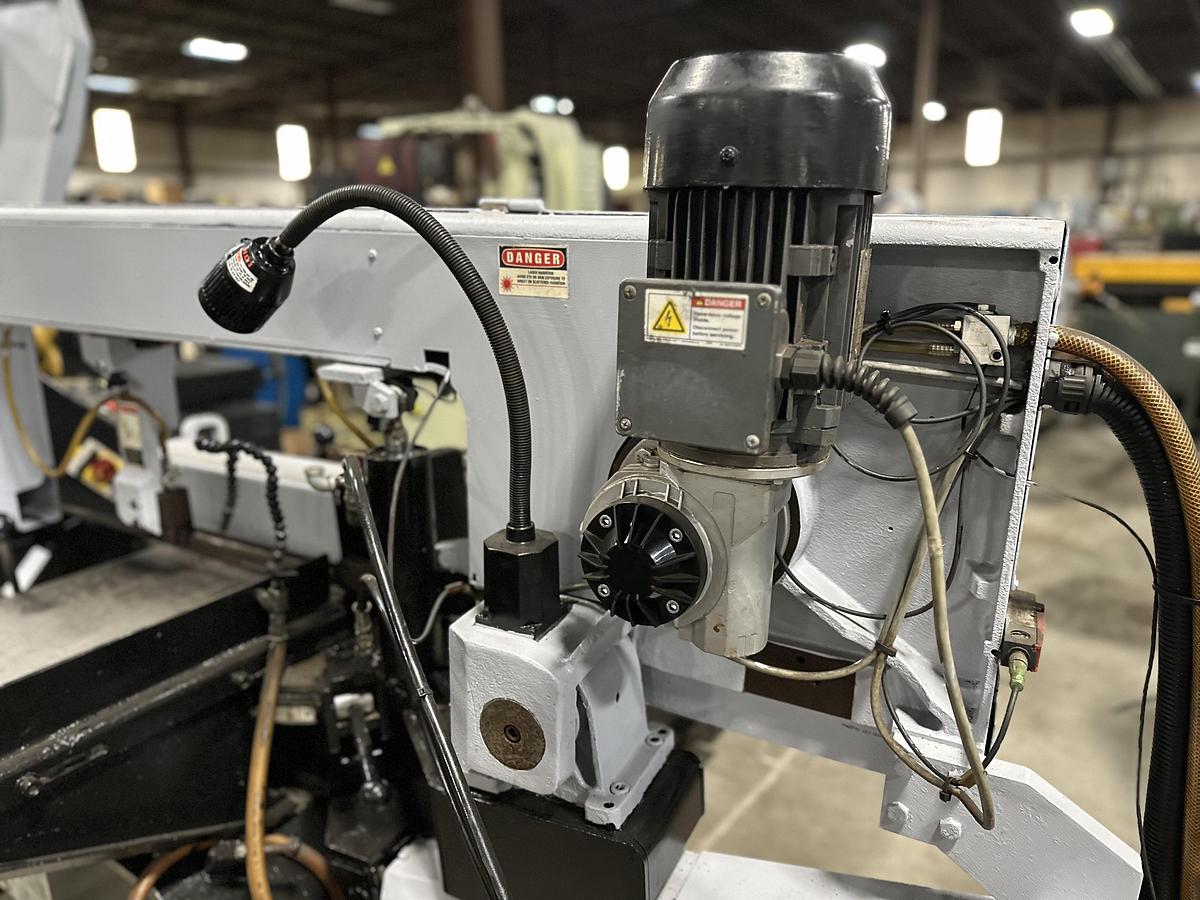

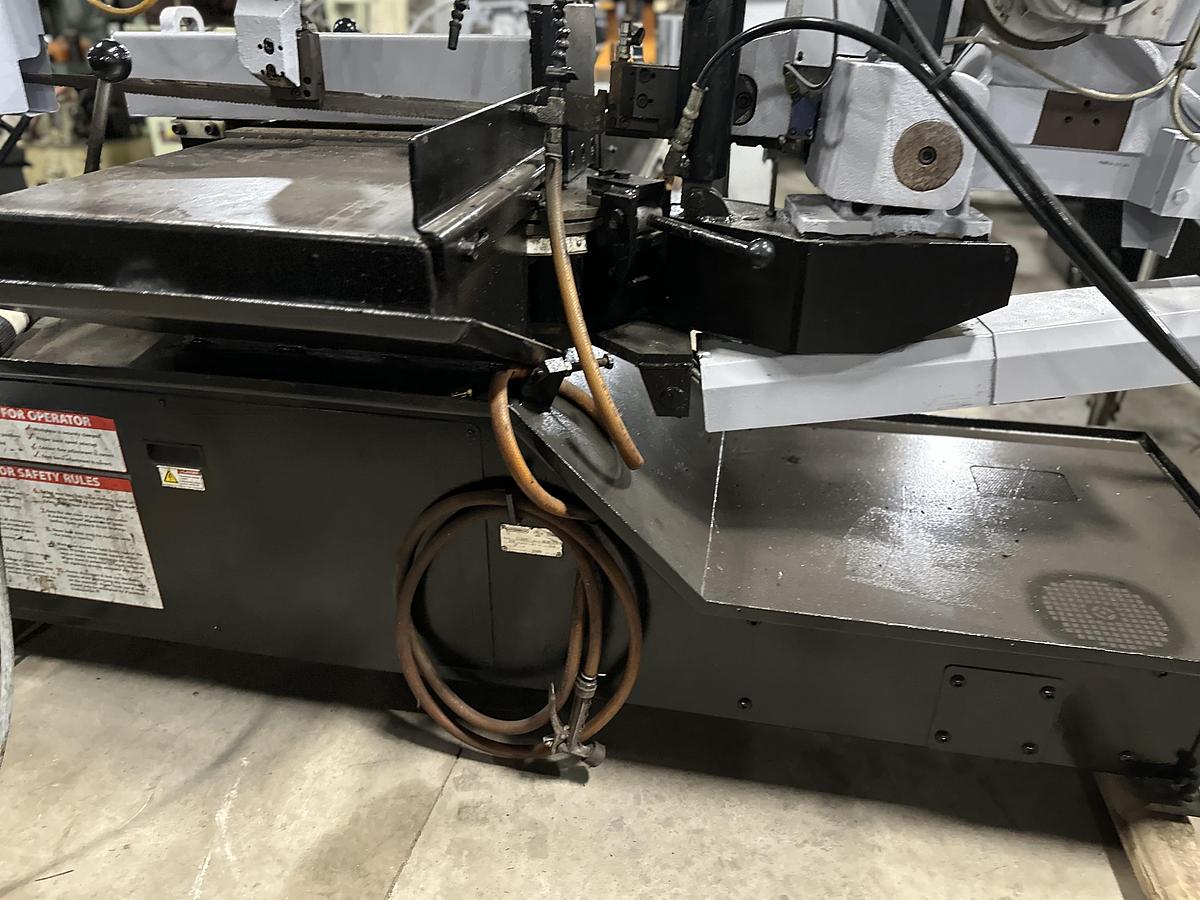

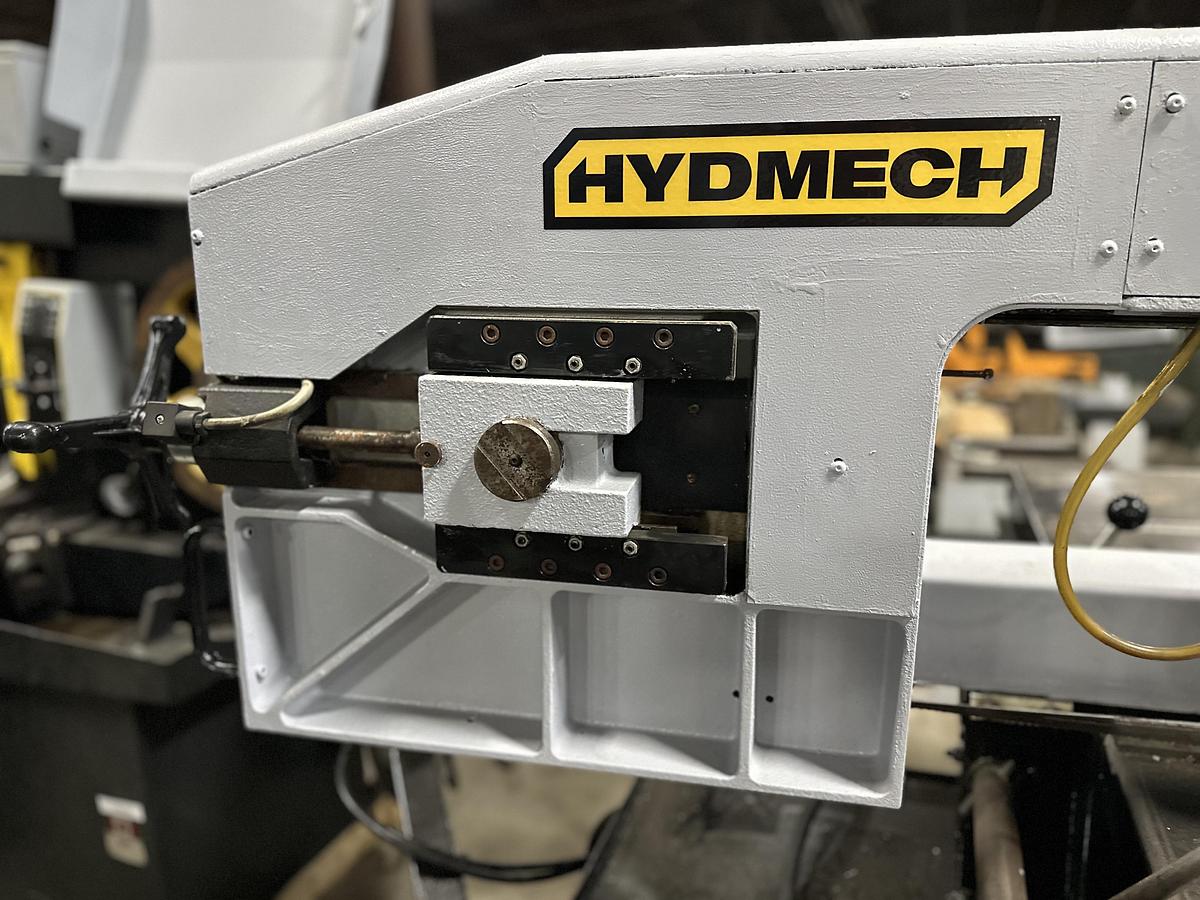

2013 HydMech Group S-20M

2013 HydMech Group S-20M

$9,950 (USD)

Location:Little Rock, AR

orCall 1 501-897-1110

Description

Delivery: TBD Terms: Net before Shipment Standard Machine Features • Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction • Full capacity, full stroking mechanical vise • 3 HP VFD. True direct blade drive – no belts/pulleys • 36” material in-feed roller table and 19” out feed table • Cast iron band wheels • Swing away semi-automatic operator control panel • Replaceable blade brush • Robust steel base • Easy to read angle scale with angle locking mechanism • Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail • Gravity fed sawing head down feed adjustment • Mechanical band tensioning with digital readout • Present replaceable carbide guide inserts • Safety door interlocks • Flood coolant with wash down hose • Work light SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Specifications

ManufacturerHydMech Group
ModelS-20M
Year2013
ConditionUsed
Serial Number6C0713165
Stock Number00033
CapacityRectangular (h x w) Round
90°13" x 18" 13"
45°13" x 10.75" 12"
30°13" x 7.75" 8.5"
Blade size1” x 14’ 10”
Blade drive3 HP VFD
Machine voltage208, 240, 480, or 575 v
Blade speed45-330 SFM
Coolant tank capacity6 Gallons
Work load5,000 lbs.
Machine weight2,500 lbs.
Table height31”
Dimensions (w x l x h)92” x 75” x 52”
