2007 Hydmech S23H
2007 Hydmech S23H
$13,900 (USD)
Location:Little Rock, AR
or
Call 1 501-897-1110
Description
Mitering Band Saw
Full Stroke Hydraulic Vise
Easy Swing Head
Mechanical Band Tensioning
Carbide Guide
Flood Coolant
Replaceable Blade Brush
Specifications
| Manufacturer | Hydmech |
| Model | S23H |
| Year | 2007 |
| Condition | Used |

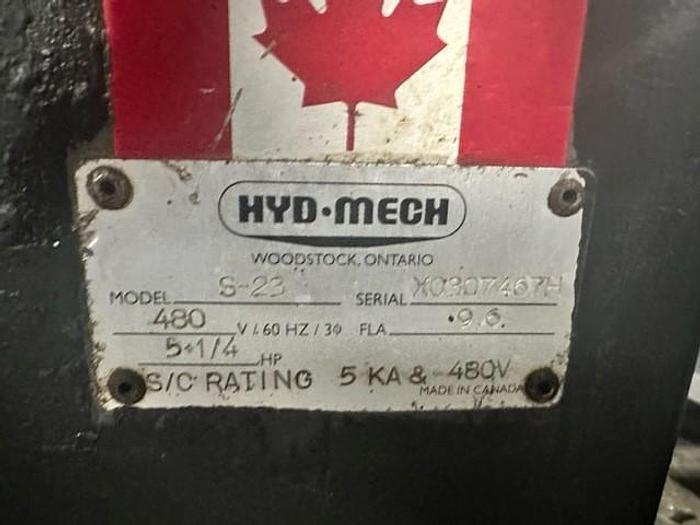

| Serial Number | X0307467H |
| Stock Number | 00030 |
| Capacity Rectangular 90 Degrees | 16" x 18" |
| Capacity Round 90 Degrees | 60" |
| Capacity Square 90 Degrees | 16" |
| Round Capacity 45 Degrees | 12" |
| Rectangle Capacity 45 Degrees | 16" x 10" |
| Round Capacity 60 Degrees | 8" |
| Rectangle Capacity 60 Degrees | 16" x 8" |
| Table Height | 31" |
| Maximum Work Load | 5000 lbs |
| Blade Size | 1-1/4" x 15'6" x .042" |
| Blade Speed | 75-350 SFM |
| Blade Guides | Carbide |
| Blade Wheel Diameter | 19" |
| Guide Arm | Manual |
| Blade Drive Motor | 5 HP VFD |
| Hydruaulic Drive Motor | 1/4 HP |
| Hydraulic tank capacity | NA |
| Coolant Tank Capacity | 6 U.S. Gallons |
| System Pressure | NA |
| Vise Control | Full Stroke Hydraulic |
| Shuttle Stroke | NA |
| Discharge Table | NA |
| Machine Weight | 2000 lbs |
| Overall Dimensions | 95" Wide x 77" Long x 63" High |
