Kingston HR4000

Sold

Kingston HR4000

$64,500 (USD)

Location:Little Rock, AR

Description

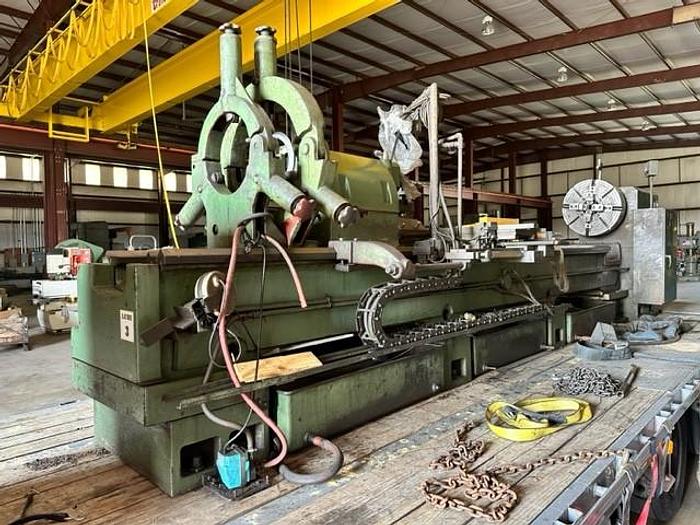

34″ x 160″ Kingston Lathe for sale

The 34″ x 160″ Kingston Lathe is known as “The Workhorse” in machine shops across the country, Kingston’s heavy-duty HR model has been the industry leader in its class for nearly 40 years. At the heart of this machine is a strong and rigid headstock with a hardened and ground main spindle, which features a 4.06” bore and a 3-point bearing support system for superior cutting capability. Operators benefit from the increased control that comes with 16 spindle speeds (8 – 800 RPM) and a wider range of feeds and threading choices. The unique rib structure of the 22” bedway is made with high-quality casting to ensure greater stability and accuracy in heavy-duty applications.


Equipped with:

Rapid Travers

Taper attachment

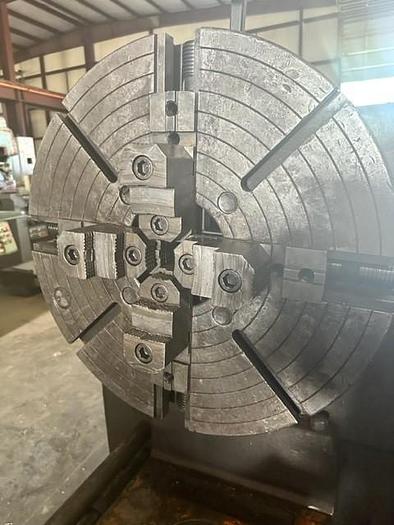

4 Jaw Chuck

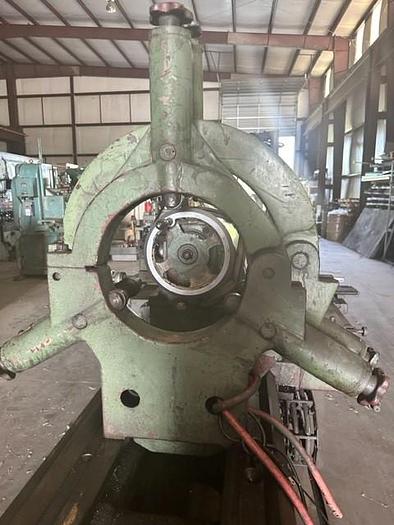

2 Steady Rests

Quick Change Tool Post

480 Volt 3 phase

Specifications

ManufacturerKingston
ModelHR4000
ConditionUsed
Serial NumberKO129*200
Stock Number00029
Swing over Bed34"
Swing in Gap45.6"
Bed Length160"
Swing over Crosslide25.1"
Bed Width22"

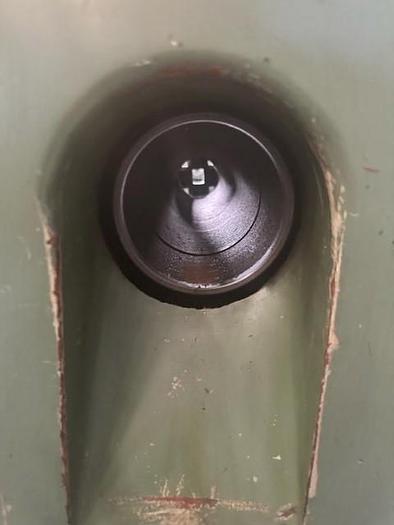

Spindle Bore4.09"
Spindle MountD1,11
Taper of Spindle Bore & CenterASA #450 x M.T. #6

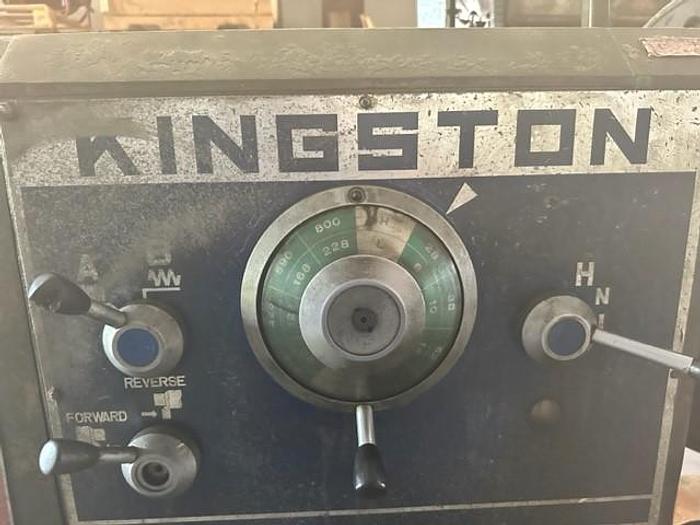

Spindle speeds(16) 8-800
Motor HP20
Weight (aprox)14500
Floor Space W: 82″ L: 256″
