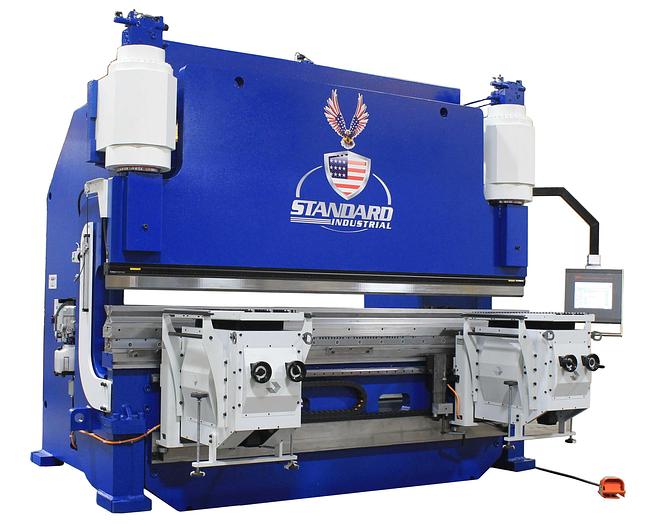

Standard EV Series CNC Press Brake 90 to 550 tons

Standard EV Series CNC Press Brake 90 to 550 tons

Contact us for price

Location:Clarksdale, MS

orCall 1 501-897-1110

Description

Please request a quote for your specific needs


Standard Features included in quote



« (2) 24” T-Slot Support Arms with imbedded scale



« T-slot across front edge of brake bed



« 8” Deep gaps in side frames for bending longer lengths with

     larger flanges



« The parallelism between moving upper beam and fixed lower

     beam during is ensured by two precision proportional valves.

     controlled by the CNC control (axes Y1 and Y2).



« Motor and controls. Electrics for 3/60/220/440. Low voltage at

    the controls.  Emergency stop palm button.



« All Components Readily Available from Your Local Suppliers



« All component’s original manufacturer and part number are included in machine manual so you will never have problems locating parts.



« Typical 20-30 Year Lifetime at 24 hr shifts



« Manual ram clamps for American style tooling.  Available with Wila

    quick-change ram clamping optionally.



« Two day onsite training in contiguous U.S.



« 29” travel, X axis, servo gauging system w/manual R/Z


Standard Features Included in quote

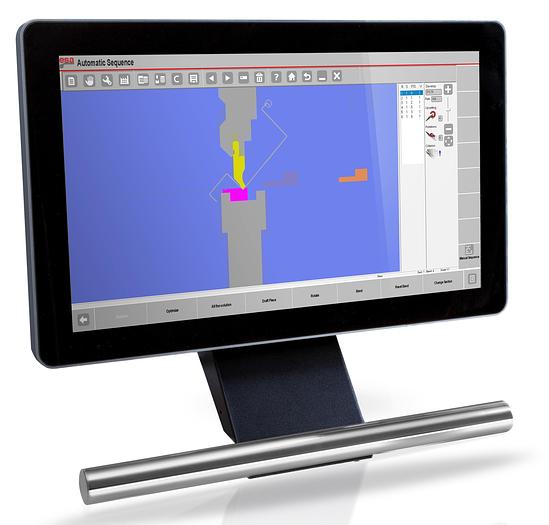

840 2D Graphical Control



« Multi-touch touchscreen allowing

    operator to draw parts/tooling

    with finger/stylus

« Remote support/service and

    diagnostics via ethernet

« Windows 10 operating system

« Fully 2D Graphical control

    w/touchscreen

« 15” color screen on pendant

« Crowning correction in degrees

    (crowning sold separately)

« 2D identification of best bending

     sequences

« 2D graphical Offline software for

    desktop programming

« 2D collision detection

« Unlimited job storage via USB &

    Ethernet

« X, Y, R, Z1-Z2, X-Prime

    programmability

« Readily accepts most tooling

    files

« 30,000 hard drive programs

« Programmable delay & retract

    at pinch point

« Direct connection of optional

    Mitutoyo protractor and

    Anglecheck devices to allow

    process angle  measurement

« Inch/mm conversion

« Auto return of ram included

« Low speed retract included

« Dwell/decompression included

« Onsite training at customer's facility



Readily available

                        Off-the shelf controls

                                                        Available anywhere in the world


Standard Features Included in quote



Frame, Construction, Warranty



« 5 Year Parts Warranty/5 Year Limited Labor

    Warranty / 2 Year CNC Control /

    Unlimited telephone support



« Frame is an extremely

    heavy duty, welded

    fabrication minimizing

   deflection and

   crowning.



« Extremely rigid movable

    beam for minimum

    deflection



« Machine is flush floor mounted; no pit required



« Built-in overload protection



« The measuring of the ram position is made

     by two precision linear encoders located on each

     end of the upper beam. As the reference is

     always measured in relation to the bed, the

     ram position on bending depth is independent from

     the work length.

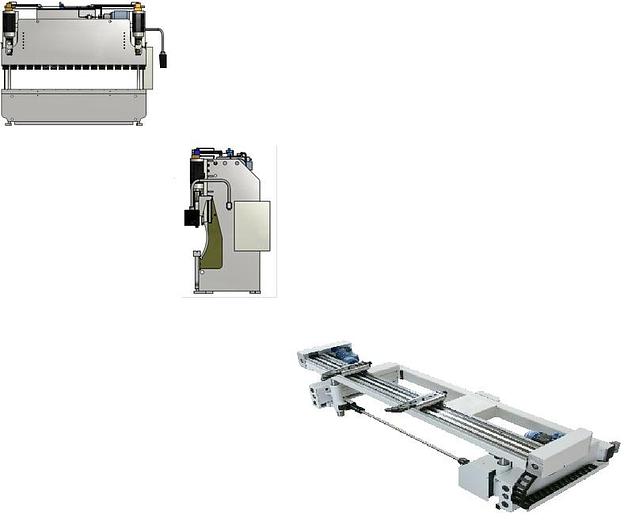

X Axis Servo Gauging System



« X servo axis



« 29” X axis travel



« X axis

     Speed: 15” per second

     Accuracy: +,- .003”



« Manual R + Manual Z



« Gauge is rated for up to 450 ton x 14’

     capacity



« Upgradeable to R, Z1-Z2, X-Prime,

     X1-X2, R1-R2 axes



« Upgradeable to 39” travel

    (longer travels are available)



« Y1-Y2-Axes +,- .0004” ram repeatability and programming of the ram position

    (vertical) as well as tilting +, - .750” (or more) for tapered bends (cones)



« Front Gauging 2 each – 24” Front support arms with imbedded scales also

    includes t-slot across front edge



« Groove in Bed and Ram Clamps for American Style Tooling (other styles avail.)


« 5 Year Parts Warranty + 5 Year Limited Onsite Labor Warranty



« Lifetime Telephone Support at No Charge



« Manifold centralized lube system



« Hand/Foot sequence w/footswitch for single operator



« T-slot across front edge of brake bed



« UL508A compliant



« Programmable tonnage via the 840 control



« Heavy duty, X axis, servo gauging system with 29” travel, manual R and

    manual Z



« Training: 2 Day Onsite training for operation, maintenance, safety and insure proper physical installation of machine.




Specifications

ManufacturerStandard
ModelEV Series CNC Press Brake 90 to 550 tons
ConditionNew
Ram Repeatability+,-.0004"
Machine capacity90 to 550 Tons at your request
Bending lengthfrom 10 to 24' at your request
