1988 Kent USA KTM-2S
No longer available
1988 Kent USA KTM-2S
$4,500 (USD)
Location:Little Rock, AR
Description
- 3 HP spindle motor, 16 speeds step pulley milling head
- 9” x 42” hardened and ground table
- Table, saddle, and knee with hardened and ground dovetail ways
- Precision ground leadscrews with backlash compensating double nut
- Precision bored and ground milling head, with super precision bearings
- Meehanite® casting, with built in coolant reservoir in machine base
Specifications
| Manufacturer | Kent USA |
| Model | KTM-2S |
| Year | 1988 |
| Condition | Used |

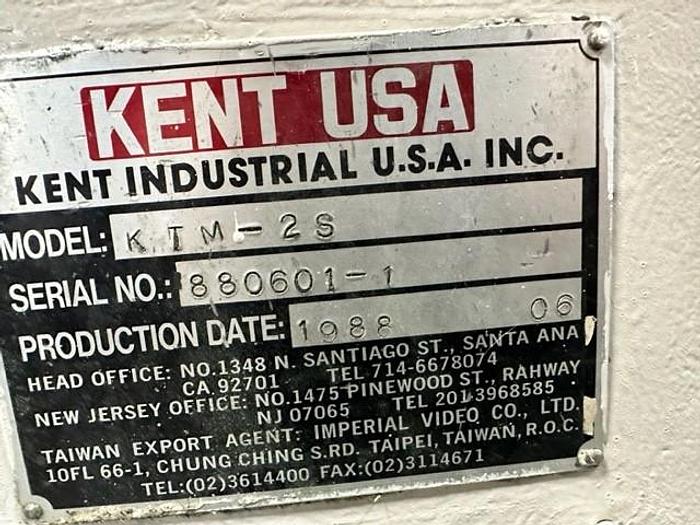

| Serial Number | 880601-1 |
| Stock Number | 00020 |
| Table Size | 9" x 42" |
| Table Travel X Axis | 28" |
| Saddle Travel Y Axis | 12" |
| Knee Travel Z Axis | 15" |
| Quill Travel | 5" |
| Ram Travel | 14.5" |
| Spindle Motor | 3 HP |
| Spindle Speed | 60-500-4200 RPM (2 Speed) |
| Spindle Taper | R8 |
| Quill Diameter | 3.375" |
| Quill Feed Rate | .0015" / .003" / .006" in/rev |
| Drilling Capacity Manual and Power | .75" / .37" Diameter |
| Boring Capacity | 6" Diameter |
| Milling Capacity | 2.0 cipm |
| Maximum Work Load (Center) | 750 lbs |
| Spindle center to Column | 5"-19.5" |
| Net Weight | 2200 lbs |
