New Hyd-Mech VW-18 Semi-Automatic Vertical

New Hyd-Mech VW-18 Semi-Automatic Vertical

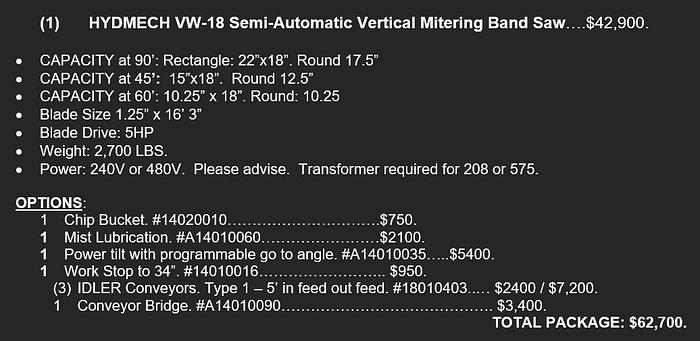

$62,700 Price includes the Following Packages, Chip Bucket,MIst Lubrication,Power tilit with programmable go to angle,work Stop to 34",3 Idler conveyors,1 Conveyor Bridge

Little Rock, AR

orCall 1 501-897-1110


Delivery: ( Delivery March 2023 with power tilt option Price $46,100.00 ) Terms: Net before Shipment F.O.B.: Factory Warranty: Two year parts, One year labor (Labor provided by dealer) Machines in stock may have options not listed on this quote and may have freight from factory added also.  Please ask your salesman about stock machines. HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever.  Specification and pricing may change with out notice. Standard Machine Features • Adjustable 3° canted head • Double articulating, semi-automatic control • Two full stroking hydraulic vises • Manual precise head positioning from 60° left to 60° right • Digital angle display w/ protractor • Mechanically adjustable guide arm • On-demand hydraulics save energy • 5 HP VFD. True direct blade drive – no belts/pulleys • Hydraulic positive down feed • Cast iron band wheels • Replaceable blade brush • Robust steel base • Easy access electrical panel and hydraulics • Blade breakage switch • Mechanical band tensioning with digital readout • Replaceable carbide guide inserts • 0.5 HP hydraulic pump provides system pressure • Safety door interlocks • Flood coolant with wash down hose • Laser light • Work light • Variable vise pressure Optional Machine Features • Power tilt • Chip bucket • Hydraulic overhead bundling* • Mist lubrication • Work stop* • Tall square vise inserts • Power transformer • Idler conveyors * Bundling and work stop cannot be used at the same time SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.


CapacityRectangular (h x w) Round Rectangular (h x w) Round
90°22" x 18" 17.5" * 20.75" x 18" 17.5" *
45°15" x 18" 12.5" 14" x 18" 12.5"
60°10.25" x 18" 10.25" 9.5" x 18" 9.5"
Blade size1.25" x 1'3"
Blade drive5 HP VFD
Motor voltage240 or 480 (**208 or 575) v
Blade speed65-385 SFM
Coolant tank capacity12 Gallons
Hyd. tank capacity4 Gallons
Machine weight2,700 lbs
Table height36.5”
Dimensions (w x l x h)36” x 95” x 96”
Mitering capability60° left to 60° right
