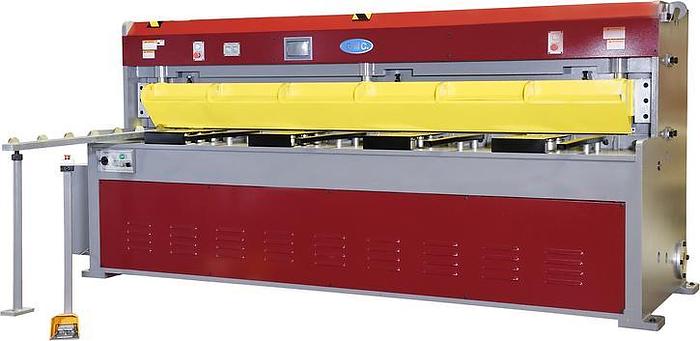

GMC 10 x .250 Shear HS-1025E

GMC 10 x .250 Shear HS-1025E

$39,850 (USD)

Location:California

orCall 1 501-897-1110

Description

This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!


Standard Features

  • ISO 9001 certified
  • Taiwan machines
  • comes with go-to NC power back gauge with touch screen
  • Quick Change Blade Gap Adjustment (BGA), with gap dial
  • CE standard “OMERO” electric control system
  • Meet OSHA safety standard code
  • Shadow line for accurate straight cutting
  • Adjustable cutting length and stroke
  • Ball transfer plates on worktable for easy loading workpiece
  • Well balanced and sturdy all steel machine frame
  • German made Hydraulic logic system centrally located and quiet
  • Hydraulic hold-downs with anti-mar neoprene
  • Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length viewable safety finger guard to protect operator from cutting hazard
  • Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
  • Hydraulic, electrical overload protection
  • Compact operator control panel
  • All motors are overload protected & low voltage control system
  • Jog or continuous auto cycle cutting operation modes
  • One year industrial warranty for parts

Standard Included Equipment

  • 36” go to NC back gauge w/ touch screen
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA) with gap dial
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 4 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box


Optional Equipment

  • 440V 3-Phase is optional
  • Safety fence for enclosure of the back side of the machine - $1,950.00


Specifications

ManufacturerGMC 10 x .250 Shear
ModelHS-1025E
ConditionNew
Capacity10' X .250 Mild 1/8" x 10' Stainless
Blade length122"
Strokes per Minute10-12
Throat depth18"
Table height34.5"
NC Back Gauge36" go to NC powered back gauge with touch screen
Front Support Arm24"
Blade Rake2 Degree
Motor HP20 HP, 220V/70A, 3 Phase 440V/35A, 3 Phase (OPTIONAL)
Shipping weight13,850 LBS
Dimensions (w x l x h)181" x 117" x 65" (with back gauge and squaring arm)
