SCOTCHMAN 176 TON MOVABLE FRAME H-PRESS

SCOTCHMAN 176 TON MOVABLE FRAME H-PRESS

Contact us for price

Location:Little Rock, AR

orCall 1 501-897-1110

Description

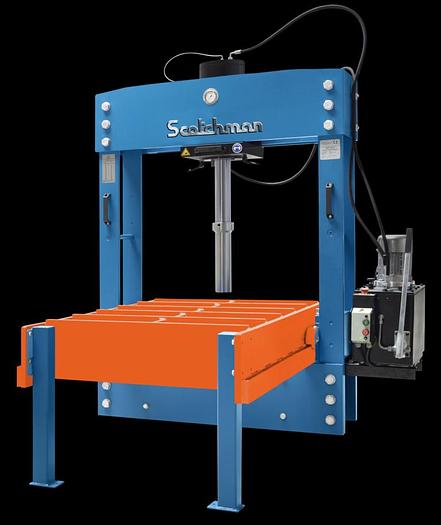

This 176 ton press has a movable press frame which allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets and structures. Easily slide the ram head from side to side and move the press frame forward and back to access all different points of the work surface. Thanks to the movable frame and movable cylinder design you can easily reach every point of the ‘to be pressed’ surface. Movement of the ram cylinder and press frame are done manually. The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing. Meets CE Standards, manufactured in the Netherlands, and comes with our 3-year warranty. SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Specifications

ModelPRESSPRO 176MT
ConditionNew
Press force176 Tons
Motor options480 / 240, 3 Phase
Ram speed- approach18 ipm
Ram speed pressing6 ipm
Ram speed - return22 ipm
Open height0 to 27.5"
Stroke15-750"
Cylinder ext to get to 011.75"
Foot print65.5" x 68" x 83" Tall
Weight4,994 lbs
