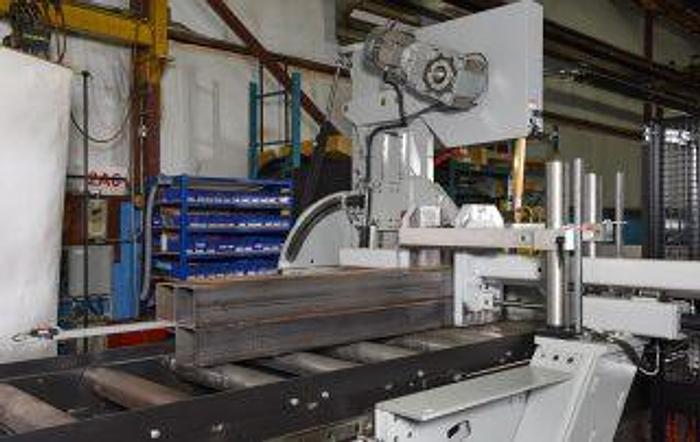

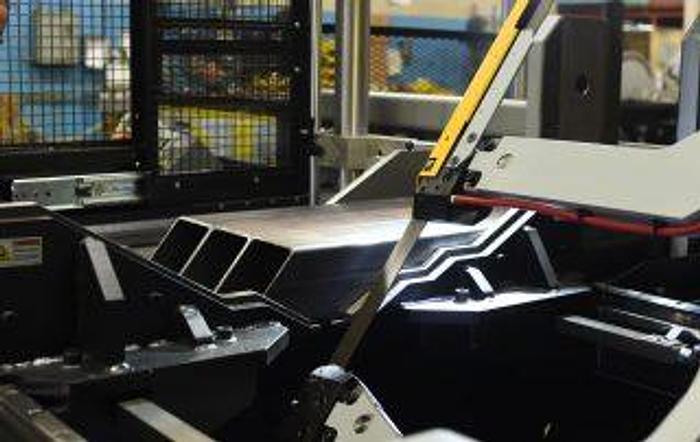

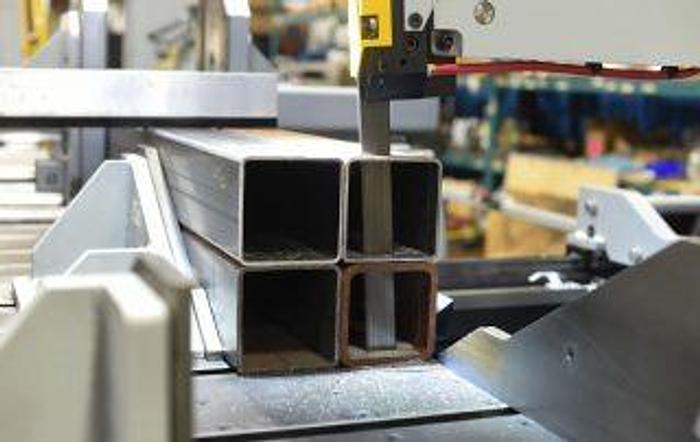

New Hyd-Mech V-21/26APC Automatic Vertical Mitering Band Saw

Standard Machine Features

·    4° canted head allows for efficient cutting and improved blade life

·    60” bar feed, left side

·    Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation.

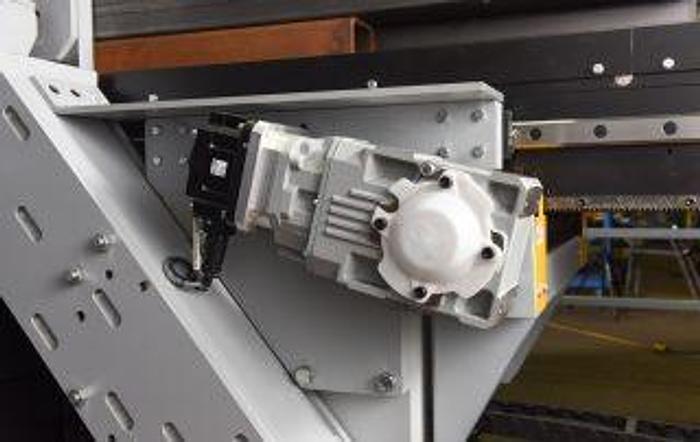

Powered by a rack and pinion servo drive.

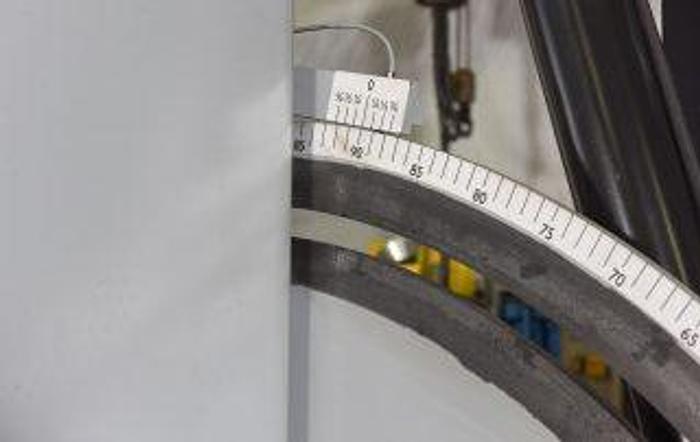

·    Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

·    Hydraulic head tilt

·    Cast iron band wheels

·    Hydraulic DDF system

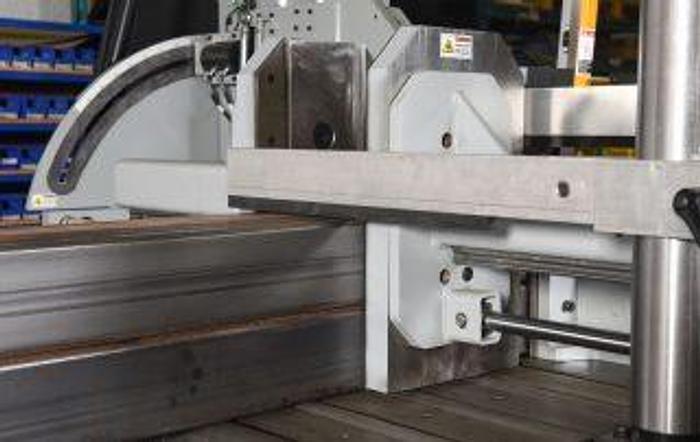

·    Two full stroking hydraulic vises

·    Hydraulically powered, programmable guide arm attached to saw column.

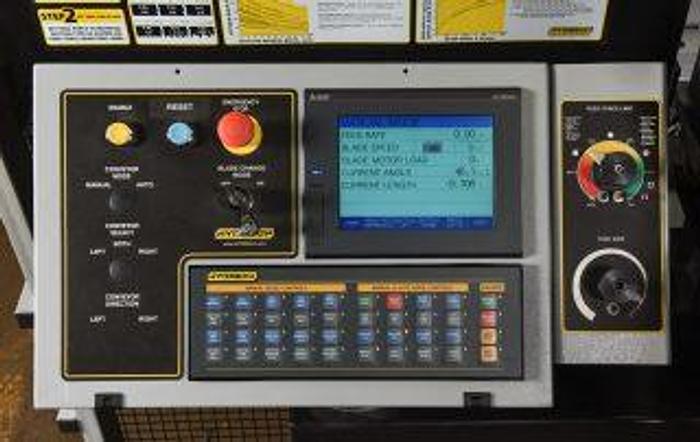

·    8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue

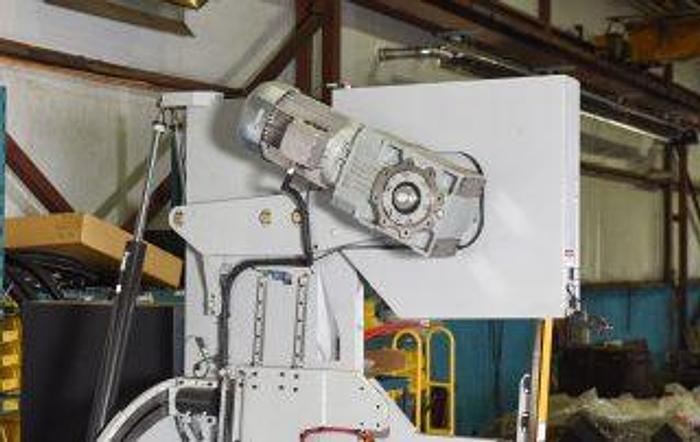

·    10 HP VFD. True direct blade drive – no belts/pulleys

·    Blade chamber separates material from cut part

·    Hydraulic chip conveyor

·    Replaceable blade brush

·    Robust steel base

·    Out of stock switch

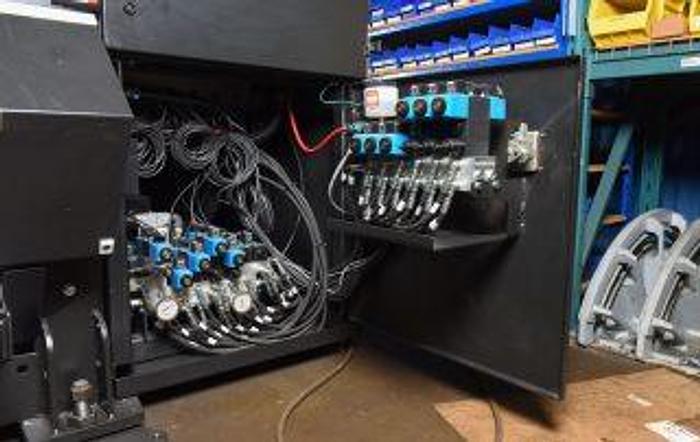

·    Blade breakage switch Easy access electrical panel and hydraulics

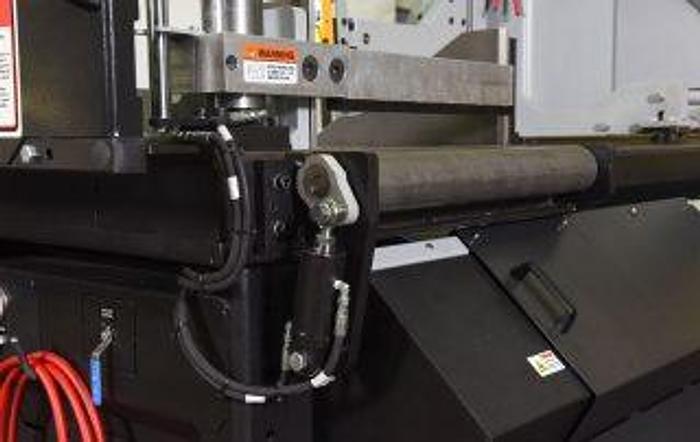

·    Pop-up feed roller – one, opposite bar feed

·    Hydraulic band tensioning with digital readout

·    Replaceable carbide guide inserts

·    3 HP hydraulic pump provides system pressure

·    Safety door interlocks

·    Flood coolant with wash down hose

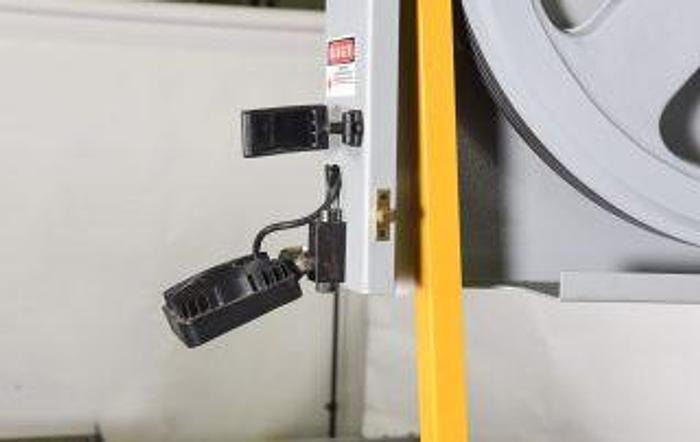

·    Laser light

·    Work light

·    Variable vise pressure

Optional Machine Features

·    Chip bucket with pump

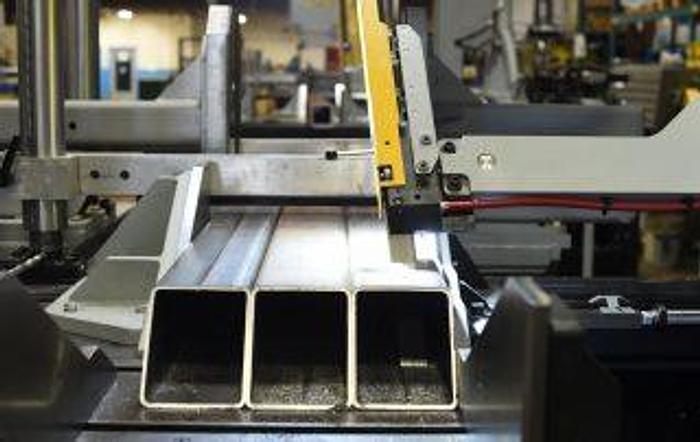

·    Full capacity hydraulic overhead bundling

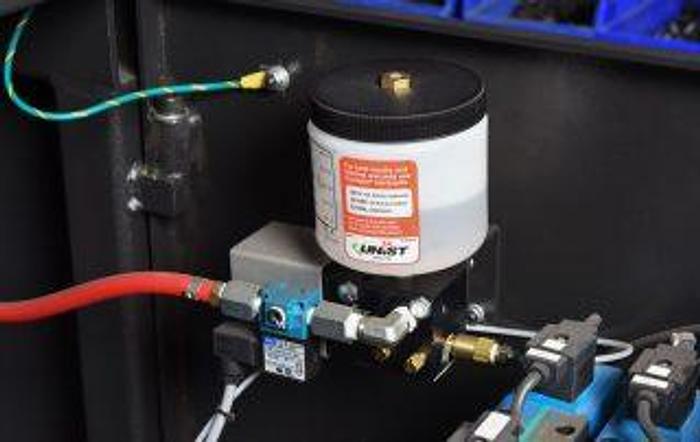

·    Mist lubrication

·    Tall square vise inserts

·    Out feed vise

·    Out feed vise bundling

·    Right side infeed shuttle

·    10’ shuttle infeed

·    Bridge/interface bracket

·    Powered bridge/interface bracket

·    Idler conveyors

·    Powered conveyors
