New Hyd-Mech Vertical Bandsaw V-25APC 25″ X 30″

New Hyd-Mech Vertical Bandsaw V-25APC 25″ X 30″

$145,900 (USD)

Little Rock, AR

orCall 1 501-897-1110

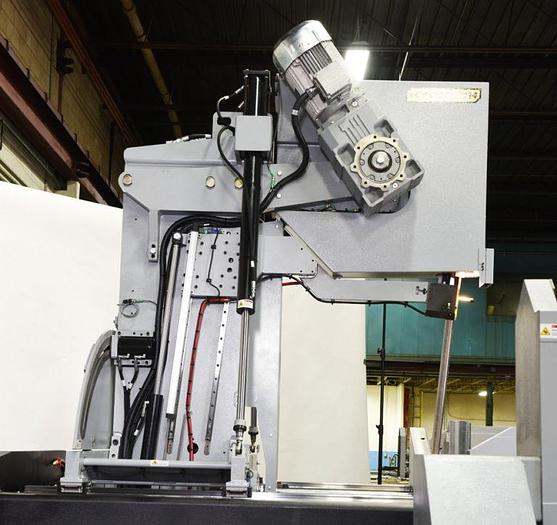

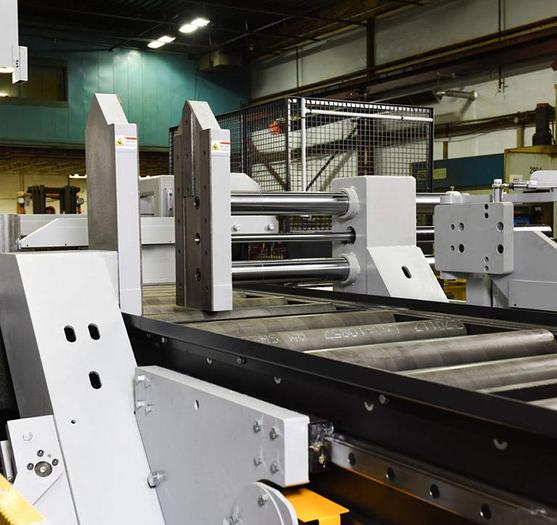

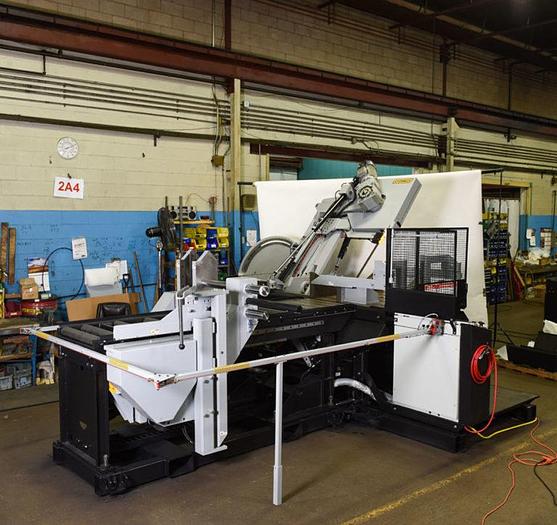

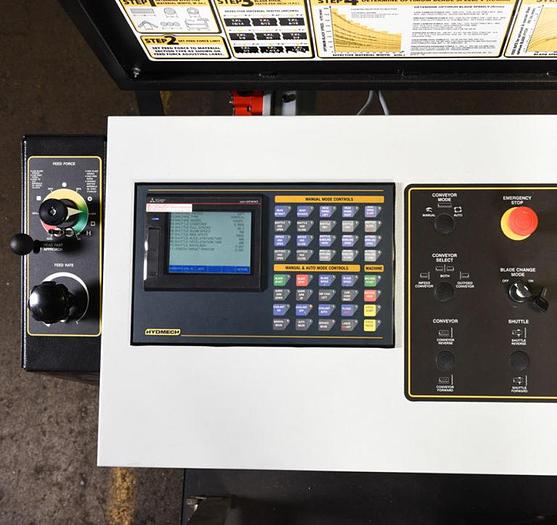

Delivery: Subject to prior orders Warranty: Two year parts, One year labor F.O.B.: Woodstock, ON, Canada Warranty: Two year parts, One year labor (Labor provided by dealer) Machines in stock may have options not listed on this quote and may have freight from factory added also.  Please ask your salesman about stock machines. HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever.  Specification and pricing may change with out notice. • 6° canted head allows for efficient cutting and improved blade life • 60” bar feed, left side • Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive. • Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right • Hydraulic head tilt • Cast iron band wheels • Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue. • Two full stroking hydraulic vises • Hydraulically powered, programmable guide arm attached to saw column. • 10 HP VFD. True direct blade drive – no belts/pulleys • Blade chamber separates material from cut part • Hydraulic chip conveyor • Replaceable blade brush • Robust steel base • Out of stock switch • Blade breakage switch • Easy access electrical panel and hydraulics • Pop-up feed roller – one, opposite bar feed • Hydraulic band tensioning with digital readout • Replaceable carbide guide inserts • 3 HP hydraulic pump provides system pressure • Safety door interlocks • Flood coolant with wash down hose • Laser light • Work light • Variable vise pressure Optional Machine Features • Chip bucket with pump • Hydraulic overhead bundling • Mist lubrication • Variable vise pressure • Tall square vise inserts • Out feed vise • Right side infeed shuttle • 10’ shuttle infeed • Bridge/interface bracket • Powered bridge/interface bracket • Idler conveyors • Powered conveyors SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.


ManufacturerHydMech Group
Serial NumberNew
CapacityRectangular (h x w) Square Round
90°30" x 25" 25" 25"
45°21" x 25" 21" 21"
60° right14.5" x 25" 14.5" 14.5"
60° left13.5" x 25" 13.5" 13.5"
Blade size1.5"x 21'0.5" Hyd. Tank Capacity 7 gallons
Blade drive10 HP VFD Machine Weight 15000lbs
Motor voltage240 or 480 Volt 3 phase Table Height 44"
Blade speed75 to 350 SFM Dimensions 158"x 254"x 123"
Coolant capacity38 gallons Mitering Capability 60° left to 60° right
