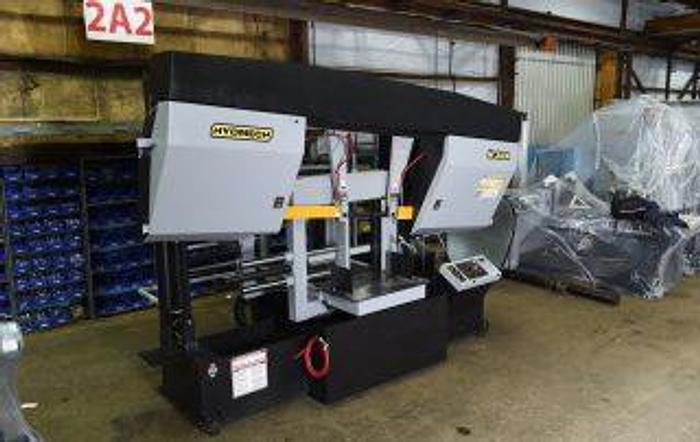

Hyd-Mech H-32A Automatic Horizonal Dual Post Bandsaw

Hyd-Mech H-32A Automatic Horizonal Dual Post Bandsaw

$157,500 (USD)

Little Rock, AR

orCall 1 501-897-1110

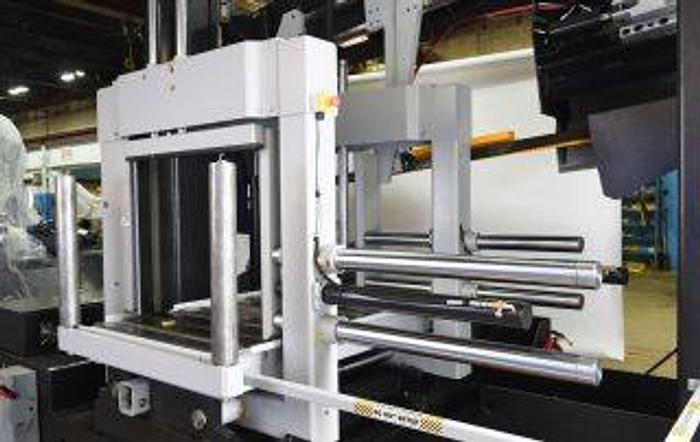

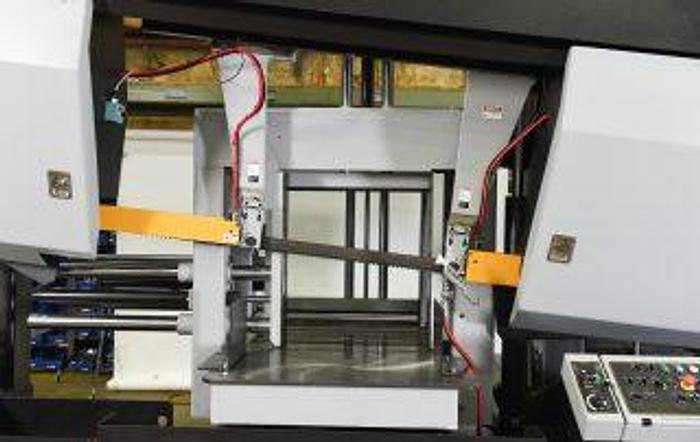

The H-32A is an a utomatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. The H-32A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement. HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 32″ x 32″ capacity, 20 HP motor, and 2 5/8″ blade, the H-32A is a reliable choice for all your heavy-duty horizontal metal cutting applications Capacity Rectangular (h x w) Round 90° 32″ x 32″ Canted: 28″ x 32″ 32″ Canted: 28″ Blade Size 2 5/8” x 30’ 4” Blade Drive 20 HP VFD Machine Voltage 480 v (208, 240, 575*) Blade Speed 40-300 SFM Automatic Multi-Indexing 0-32″ Machine Weight 19,500 lbs. Table Height 31” Canted: 37″ Dimensions (w x l x h) 182” x 92” x 120” SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.


ManufacturerHydMech Group
