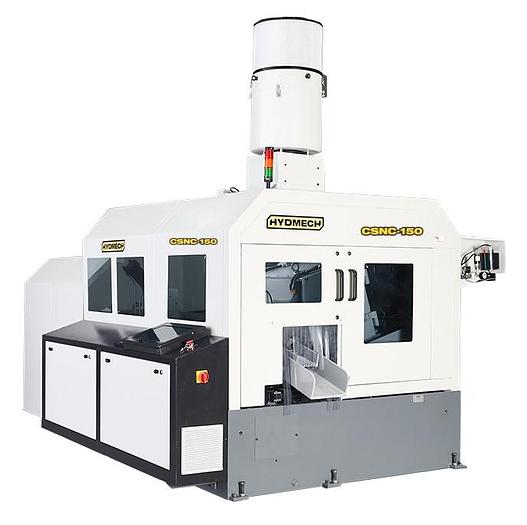

HYDMECH CSNC-150 High Speed CNC Carbide Circular Saw

HYDMECH CSNC-150 High Speed CNC Carbide Circular Saw

Contact us for price

Little Rock, AR

orCall 1 501-897-1110


Standard Machine Features ·    Mitsubishi PLC Controller allows for 200 programs to be saved. ·    Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade. ·    Material library with US steel grades menu with ability to add custom material grades ·    Bar feed features a roller bed with a material gripper feed carriage indexing via ball screw and AC servo drive ·    Heavy duty saw head is driven by ball screw and AC servo drive with a patent pending counterbalance feature ·    Mist exhaust system ·    Patent pending blade cooling system. ·    Bar retracts automatically for contact free return stroke of the saw blade ·    Universal Bar Loader for round and square material with hydraulic incline pitch adjustment and safety guard sheets provides inclined storage width of 55” (1400 mm) for rounds ·    PLC controlled automatic oil lubrication of all moving parts ·    Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts ·    Variable vise pressure control with dial gauge – two stations ·    Remote monitoring of PLC for trouble shooting. ·    Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator. ·    Hydraulic rotating wired chip brush rotates in both directions for proper chip removal ·    Status light indicating tower ·    Chain chip conveyor ·    Air cooled electric magnetic head break removes all backlash. ·    Built in hydraulic tank and power pack ·    Tool steel hardened precision blade guides ·    Power transformer ·    Four blade starter package ·    Air moisture separator ·    Cooling nozzle Optional Machine Features ·    Bundle unscrambler ·    Magnetic chip conveyor ·    PLC program modifications ·    Maintenance kit ·    Long cut bar out feed motorized conveyor table with guarding in the following lengths – 1000 mm, 2000 mm, and 3000 mm Additional Online Resources View additional resources such as feature descriptions, footprint drawings, images and videos on the HYDMECH web site at: http://www.hydmech.com/products/csnc-carbide-saws/ Investment Part Number USD CSNC-150 with standard machine features 17040000 POR Factory install and machine training included Factory install and machine training included Options Magnetic chip conveyor 17010050 POR Bundle unscrambler 20’ 17030023 POR Long cut outfeed motorized sliding table – 1000 mm travel 17020160 POR Long cut outfeed motorized sliding table – 2000 mm travel 17020161 POR Long cut outfeed motorized sliding table – 3000 mm travel 17020162 POR PLC program modifications 17040081 POR Maintenance kit – 4 saw guide plates, 2 metering cartridge lubrication, 25 wire brushes, SSR relay, normal relay, 5 glass fuses, proximity sensor, photo sensor, and mist pre-collector filters 17020100 POR SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.


ManufacturerHydMech Group
Blade sizeCarbide/ Cermet tipped:  460 mm or 520 mm x 2.7 mm kerf
Bar stock length10’-20’ / 3-6 m
Blade drive40 HP / 29.4 kW
Trim cutZero or programmable from 0.4” or longer
Hydraulic drive3 HP/ 5 HP with non-round loader
Single stroke40”
Machine voltage240, 480, 575 v
Machine capacity16,530 lbs / 7500 kg
Blade speed50-200 MPM
Machine weight11,000 lbs / 5000 kg
Cut off lengthMin 0.4” up to full bar length
Dimensions (w x l x h)2475 x 2560 x 1800
Remnant length4.72” / 120 mm + cut length
