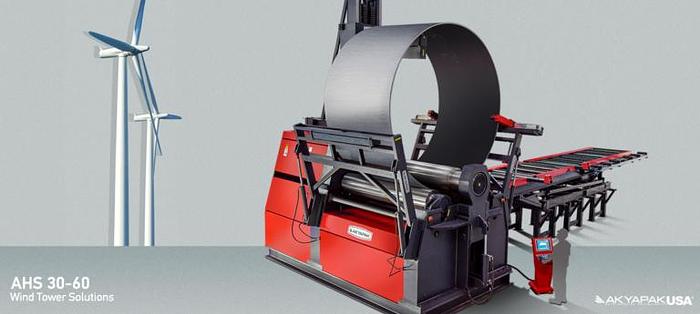

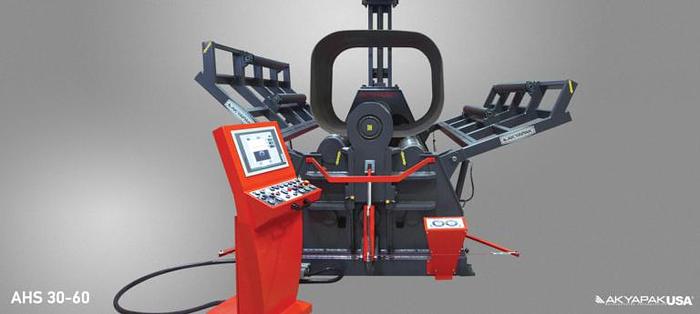

Akyapak AHS30-60 4 Roll Plate Roll

Akyapak AHS30-60 4 Roll Plate Roll

Contact us for price

Location:Little Rock, AR

orCall 1 501-897-1110

Description

10′ x 3″ Double Pinch 4 Roll Hydraulic Plate Roll Akyapak offers special solutions for wind energy industry with AHS-RK Wind Tower Bending Line which it has developed. With its 55 years of experience and engineering and production expertise in many product groups, Akyapak is distinguished from its. Akyapak designs the Wind Tower Bending Lines in an integrated way through the Welding Solutions it develops and produces. Akyapak Wind Tower Bending Lines that can be designed with Column-Boom systems and Rotators increases your productivity and. Standard Equipments; Optional Equipments; Great Solutions For Great Challenges Akyapak manufactures 4 rolls hydraulic plate bending machines with capacity in thickness from 2 mm to 200 mm and in width from 500 mm to 12000 mm. (from 14 ga. to 8” and in width from 20” to 40ft.) Prescide, Productive and Reliable As well as being reliable, AHS increases productivity with its high speed rolling ability and it overcomes the most challenging bends thanks to its ease of use. Since the plate is pinched during rolling, skidding and slipping of materials are prevented. Thus, more. In AHS 4-Roll Plate Rolling Machines, one of the side rolls can be used as a squaring roll, thus the plate can be easily and precisely aligned along the roll across the input direction. Less Flat Ends At a Single Pass In AHS 4-Roll Machines, it is possible to achieve a full cylinder at a single pass because the material can be pinched with the lower-roll during pre-bending and bending. AHS model allows for precise pinching of the plate between upper and lower rolls, thus the. SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Specifications

ModelAHS-30-60
ConditionNew
Working length10'
Max. thickness3"
Pre-bending thickness2-3/8"
Top roll dia.24"
Bottom roll dia.21.7"
Side roll dia18.1"
Motor horse power101
Length22.1'
Height11.4
Width9.8
Weight112,877
Min. bending dia. (top roll diameter + trd)TDR x 5
