New WDM Initial Pinch Rolls

New WDM Initial Pinch Rolls

Contact us for price

Location:Little Rock, AR

orCall 1 501-897-1110

Description

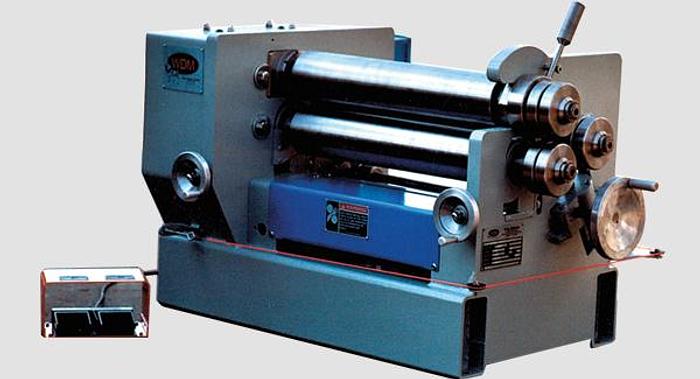

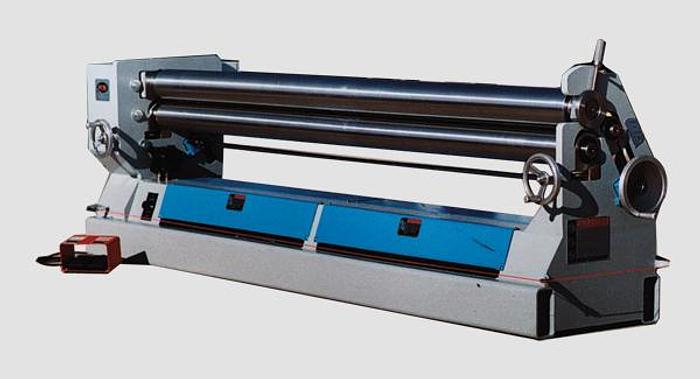

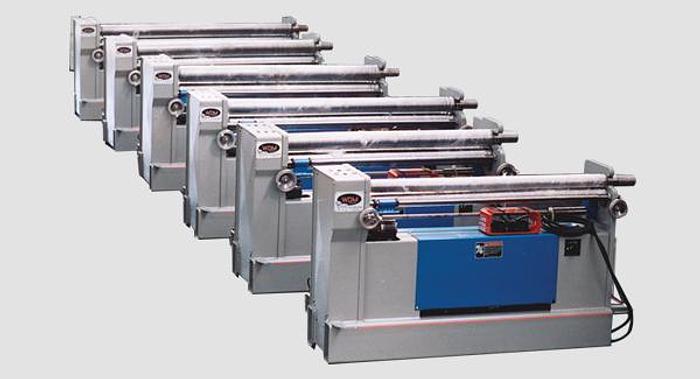

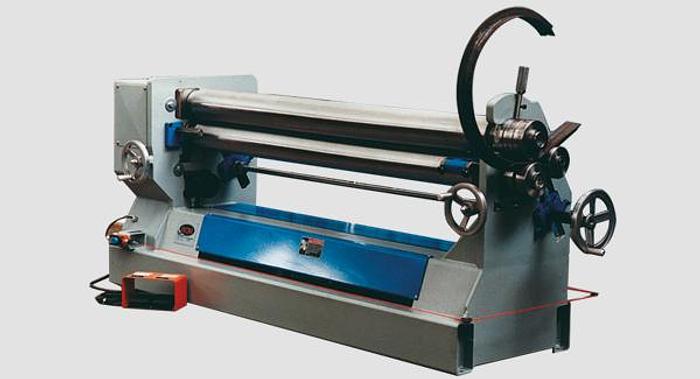

The WDM B Series machines are built primarily for the sheet metal industry and small maintenance shops. To keep their cost low, the basic machine has few extras, although it does have the main WDM features of robust fabricated steel frame and sealed spherical roller bearings on main rolls. The drive system is of hydraulic design with instant start, stop and reverse features. The bending roll can be angled for rolling tapered parts. The machine is shipped complete and ready to run and only requires the application of power and topping off the hydraulic reservoir. The machine is then ready to produce accurate cylinders for you. There are many options you can add to enhance the machines. These include: special hardened and polished rolls, mechanical digital readouts, electrical digital readouts for roll position, special grooved rolls, starting grooves, bar and angle attachments, and many more. Machine are instock (Subject to Prior Sale) SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Specifications

ModelB Series
ConditionNew
16 ga x 3', b-2.6-36 sn 61628 dodge center mnHardened and Polished Rolls, Cone attachement , Gooved Power bend adjustment, Digital Read out $18,725.00
14 ga x 4', b-3.5-48 sn 61628-20 fob dodge center mnHardened and Polished Rolls, Cone Attachment, Circular Grooves $15,125.00
16ga x 5', b-3.5-60 sn 61682-21 fob cincinnati ohHardened and Polished Rolls, Cone Attachment, Circular Grooves, Digital Read out $20,415.00
16ga x 5', b-3.5-60 sn 61654-21 fob dodge center mnHardened and Polished Rolls, Cone Attachment, Circular Grooves, Digital Read out $20,415.00
12 ga x 4', b-4-48 sn61656-21 fob menomonee falls, wiHardened and Polished Rolls, Circular Grooves $16,225.00
14 ga x 5', b-4-60 sn61704-22 fob roseville, miHardened and Polished Rolls, Coning Attachment, Power Bend Adjustment, Digital Read out $25,760.00
8 ga x 4' b-5-48 sn61671-21 fob dodge center miHardened and Polished Rolls, Power Bend Adjustment $19,677.00
8 ga x 4' b-5-48 sn61667-21 fob schaumburg, ilHardened and Polished Rolls, Power Bend Adjustment $19,677.00
8 ga x 4' b-5-48 sn61701-22 fob roseville, miHardened and Polished Rolls, Coning Attachment, Circular Groves, Power Bend Adjust, Digital Read out $25,410.00
8 ga x 5' b-5-60 sn61709-22 fob spencer, tnHardened and Polished Rolls, Coning Attachment, Circular Groves, Power Bend Adjust, Digital Read out $26,400.00
5/16" x 4' b-6-48 sn61645-21, fob dodge center, mnHardened and Polished Rolls, Coning Attachment, Circular Groves, Power Bend Adjust, Digital Read out $32,100.00
5/16" x 4' b-6-48 sn61651-21, fob dodge center, mnHardened and Polished Rolls, Coning Attachment, Circular Groves, Power Bend Adjust $28,000.00
1/4" x 6', b-6-60 sn61680-22 fob roseville, miHardened and Polished Rolls, Coning Attachment, Circular Groves, Power Bend Adjust, Digital Read out $37,560.00
