AKYPAK Medium Angle Rolls

AKYPAK Medium Angle Rolls

Contact us for price

Location:Little Rock, AR

orCall 1 501-897-1110

Description

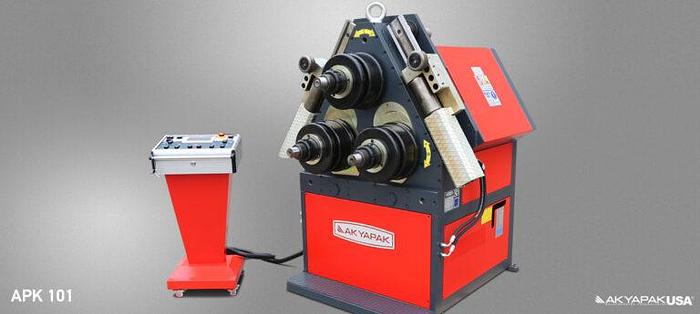

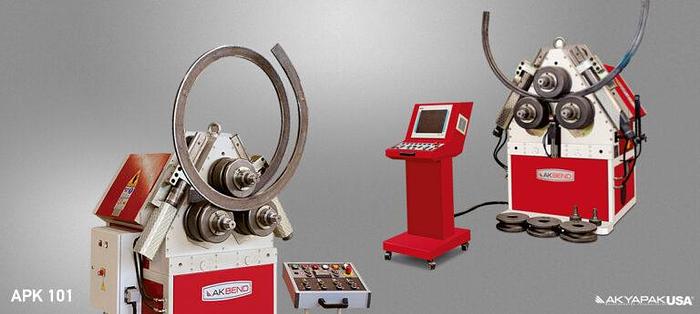

AKYAPAK offers extensive alternatives on heavy duty profile bending machines as well. Our machines are strong and reliable with their St-52 weld construction body. Minimum flexion causes less deformation, by the help of our machines’ enlarged roll diameters. By the help of big measurements of bearings, durability and high bending momentum can be obtained. The power of hydraulic cylinders enables to bend the larger parts without difficulty. Practical and universal rollers creates the possibility of easiness for bending various sections, and this feature gives the opportunity of being more powerful and robust. Akyapak Profile Bending Machines are 3 rolls driven. This feature allows to have a possibility to make the high capacity bending processes real. Secondly, our 3 Rolls Driven machine minimizes the slipping of the materials during the bending process. The two bottom rolls are hydraulically driven and they can move independently with each other. Therefore, in comparison with the machines which are top roll drive, the features of our machines enhance the ability of operators and give the opportunity to make prebending process on both edges. Side supporters can move towards three directions to reduce the deformations and to facilitate bending processes, especially with angles and spirals. Standard Equipments Optional Equipments SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

Specifications

ModelAPK Medium Series Angle Rolls
ConditionNew
Angle leg outL2x2x3/16 26" L2x2x1/4 28"
Angle leg inL2x2x1/4 26 l2x2x1/4 32
T section leg outWT5 48 WT4 48
T section leg inWT5 51 WT4 40
T section leg sideWT5 51 WT4 48
Flat hard way1-1/2 x 3/8 x 20 4x1 63
Flat easy way8x2 40 7-1/2x1-3/8 40
Square3 32 2-3/4 32
Round3-3/8 36 2-3/4 32
Tube-pipe5 SCH 40 70 4 SCH 40 63
Rectangle tube2 x 5-1/2 x 0.312 5-1/2 x 0.196 157
Square tube3-1/2 x 0.312 4 x 0.196 157
Beam hard wayW4 x 13# 102
Motor hp20 15
Roll diameter15.35 12.4
Shaft diameter4.72 3.94
Bending speed13 18
Weight10,405 4,940
W x l x h4.8 x 6.5 x 6.7 4.9 x 5.4 x 6.9
