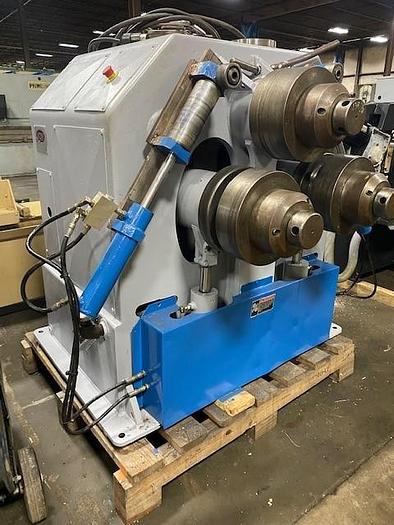

Used WDM Hydraulic Pinch Pyramid Angle Roll Machine
No longer available
Used WDM Hydraulic Pinch Pyramid Angle Roll Machine
$39,500 (USD)
Location:Little Rock, AR
Description
Delivery: Stock, Subject to Prior Sale Terms: Net before Shipment F.O.B.: Little Rock, AR Standard Horsepower: 15 Roll Diameter: 12.5″ Weight Approx.: 7,200 LBS Bending Pressure: 40 US Tons Main Shaft Dia.: 5″ Sections Modulus: 2.4″ Drive Type: Mech/Spur/Hyd Guide Roll Adj.: 6 Way Power Horizontal/Vertical: Both Length, Width, Height: 48″ X 50″ X 58″ SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.
Specifications
| Model | AR-41 |
| Year | 2006 |
| Condition | Used |
| Angle leg out | 4" x 4" x 1/2" |
| Angle leg in | 4" x 4" 3/8" |
| Flat on flat | 1-1/4" x 6" |
| Flat on edge | 7/8" x 4" |
| Square bar | 2-1/2" |
| Tee leg in | T4 x 18.5" |
| Tee leg out | WT x 12# |
| Schedule 40 pipe | 3" |
| Schedule 80 pipe | 3" |
| Schedule 120 pipe | 2-1/2" |
| Schedule xxh steel pipe | 2-1/2" |
| Round tube | 5 x 12" GA |
| Square tube | 3 x 3 -16" |
| Rectangular | 4 x 1-1/2 x 11" GA |
| Channel flange out | C7 x 14.75" |
| Channel flange in | C7 x 14.75" |
| I-beam on web | W4 x 13" |
| I-beam on flange | S4 x 7.7" |
