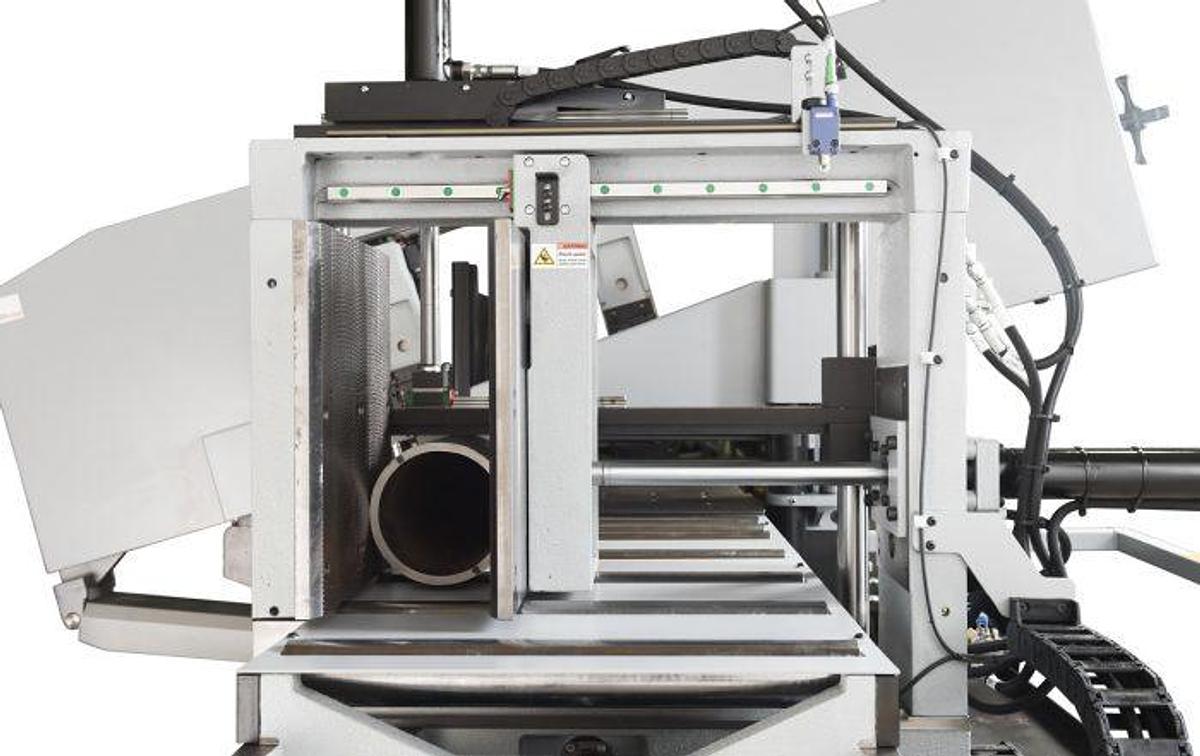

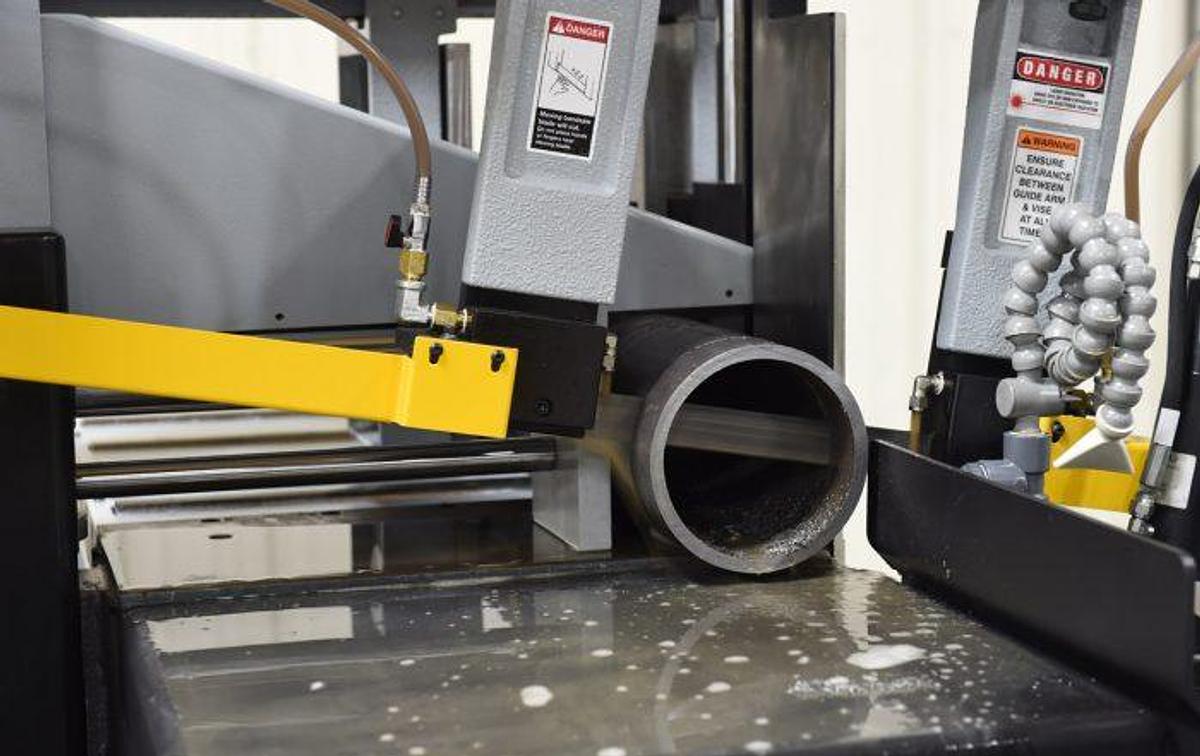

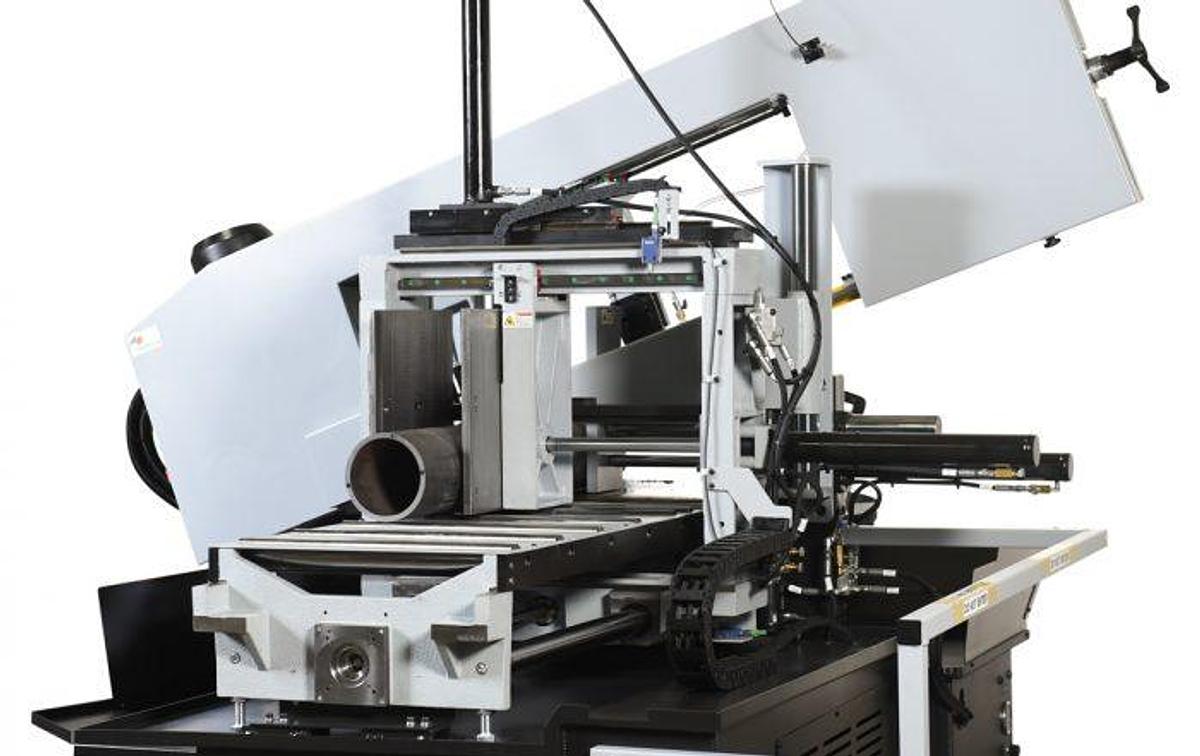

New 16″ x 20″ Hyd-Mech S-23A Automatic Pivot Style Band Saw

New 16″ x 20″ Hyd-Mech S-23A Automatic Pivot Style Band Saw

$46,000 (USD)

Little Rock, AR

orCall 1 501-897-1110

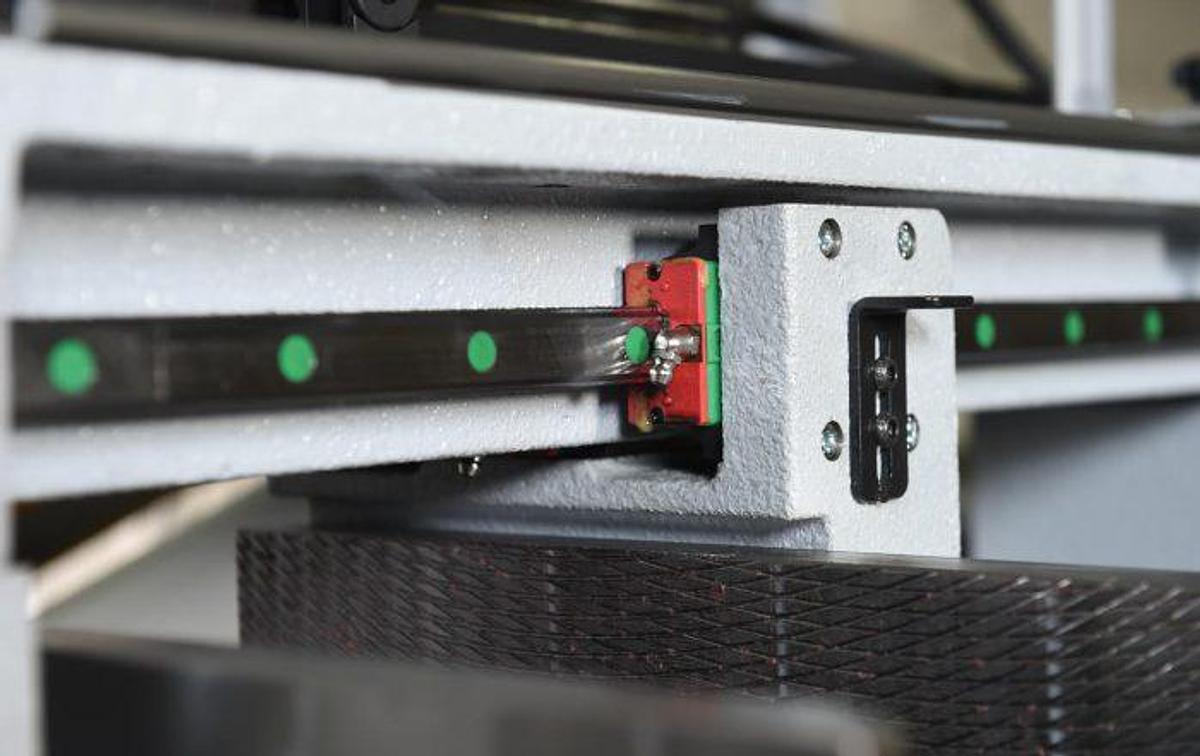

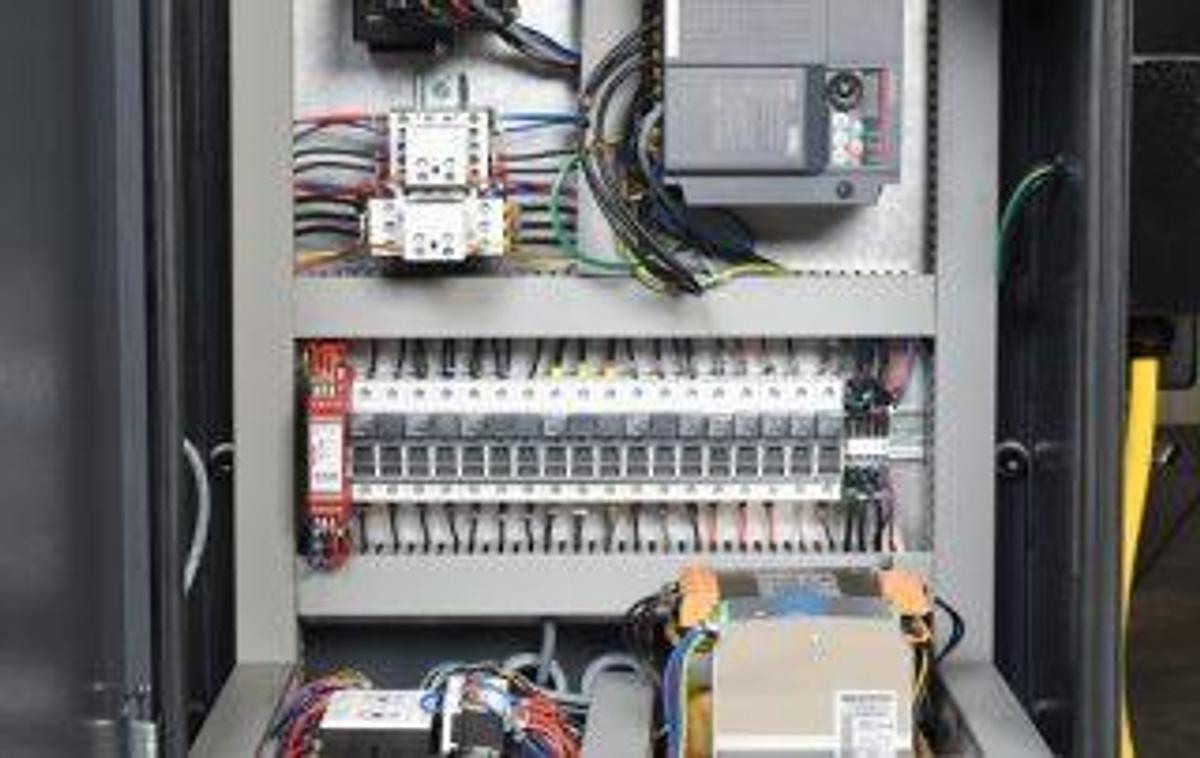

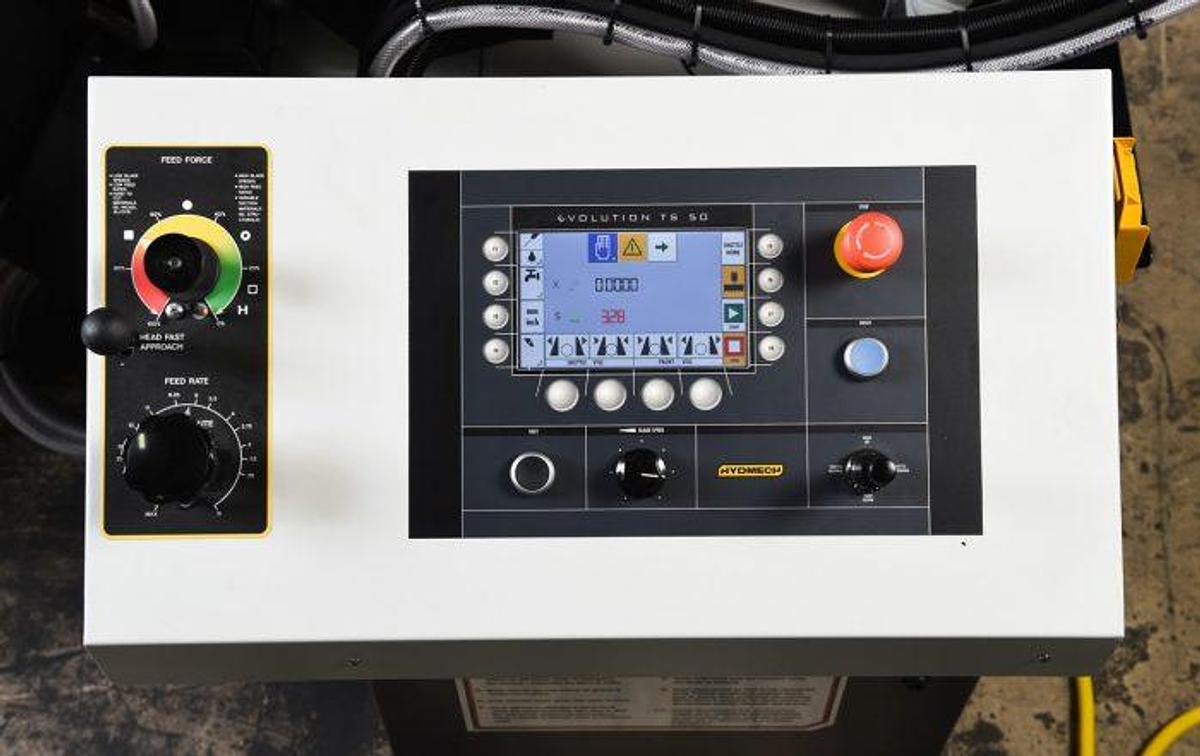

Delivery: TBD Terms: Net before Shipment F.O.B.: Conway, Arkansas Machines in stock may have options not listed on this quote and may have freight from factory added also.  Please ask your salesman about stock machines. HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever.  Specification and pricing may change with out notice. Standard Machine Features • Easy swing, heavy duty cast iron saw head • Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor. • 8.8 HP VFD. True direct blade drive – no belts/pulleys • On-demand hydraulics save energy • Blade chamber separates material from cut part • Cast iron band wheels • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue • Replaceable blade brush • Robust steel base • Easy to read angle scale with angle locking mechanism • Cast iron guide arms mounted on linear rails is adjustable for proper spacing. • Easy access electrical panel • Out of stock switch • Mechanical band tensioning with digital readout • Hydraulic positive down feed • Replaceable carbide guide inserts • Safety door interlocks • Flood coolant with wash down hose • Laser light • Work light • Variable vise pressure Optional Machine Features • Full capacity hydraulic overhead bundling • Mist lubrication • Idler conveyors • Powered conveyors • Remote console SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.


ManufacturerHydMech Group
CapcityRectangular Round
90°16" x 20" 14"
45°16" x 14" 14"
30°16" x 8.5" 8.5"
Blade size1.25” x 16’ 10”
Blade drive8.8 HP VFD
Machine voltage208, 240, 480, or 575 v
Blade speed75-350 SFM
Coolant tank capacity12 Gallons
Work load5,000 lbs.
Machine weight4,200 lbs.
Table height33"
Dimensions (w x l x h)101” x 95” x 61”
