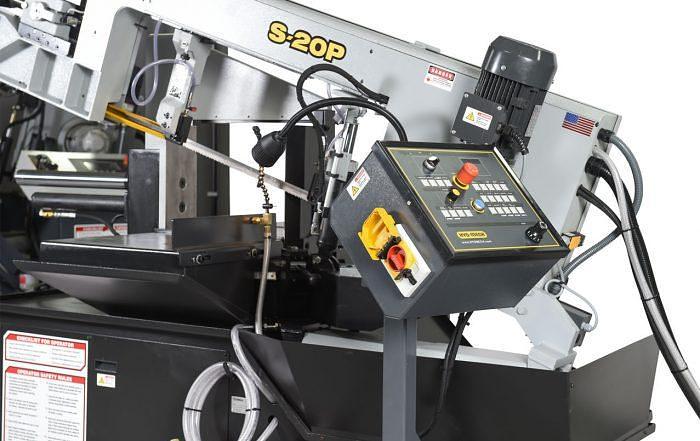

New Hyd-Mech S-20P Semi-Automatic Pivot Style Mitering Band Saw
New Hyd-Mech S-20P Semi-Automatic Pivot Style Mitering Band Saw
$20,500 (USD)
Location:Little Rock, AR
Description

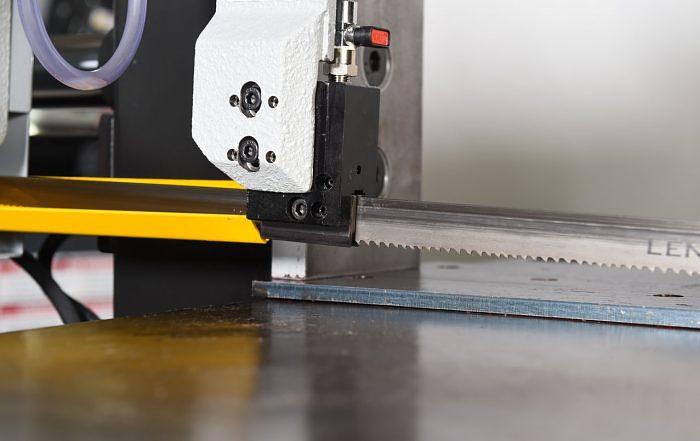

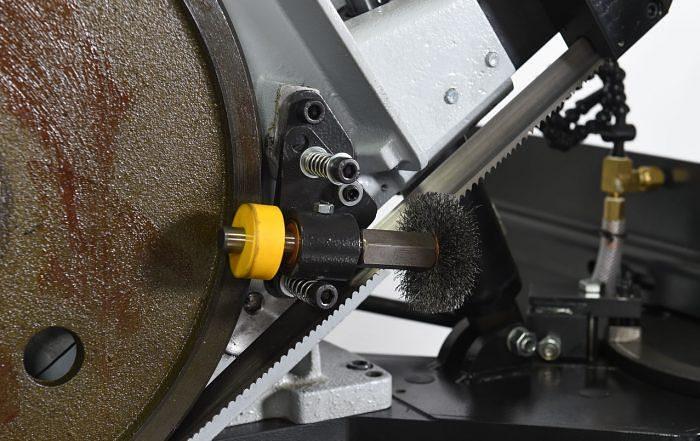

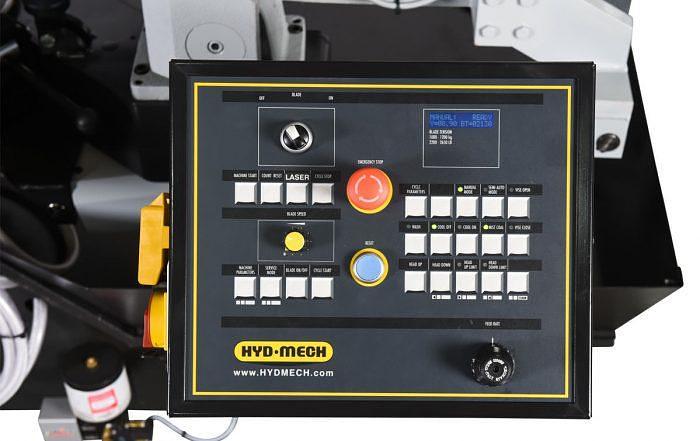

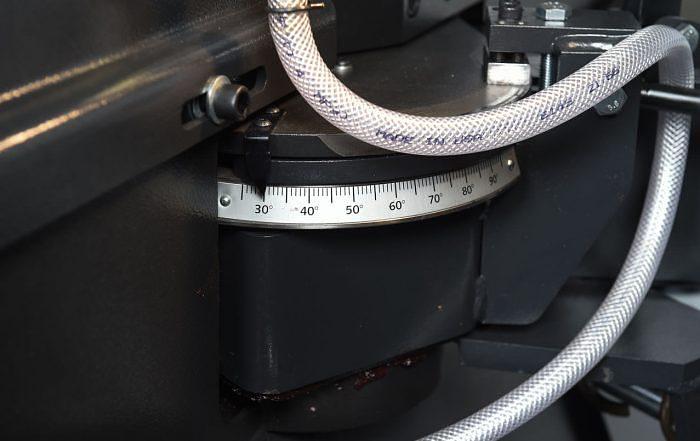

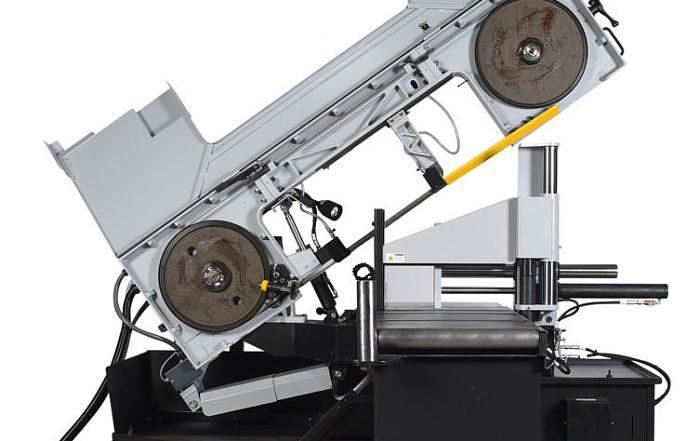

Delivery: TBD Terms: Net before Shipment F.O.B.: Conway, Arkansas Warranty: Two year parts, One year labor (Labor provided by dealer) HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever. Specification and pricing may change with out notice. Standard Machine Features • Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction • Full capacity, full stroking hydraulic vise • 3 HP VFD. True direct blade drive – no belts/pulleys • On-demand hydraulics save energy • 36” material in-feed roller table and 19” out feed table • Cast iron band wheels • Swing away semi-automatic operator control panel • Replaceable blade brush • Robust steel base • Easy to read angle scale with angle locking mechanism • Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail • Gravity fed sawing head down feed adjustment • Mechanical band tensioning with digital readout • Present replaceable carbide guide inserts • Safety door interlocks • Flood coolant with wash down hose • Laser light • Work light • Variable vise pressure Optional Machine Features • Full capacity hydraulic overhead bundling • Idler conveyors • Work stop – 34″ VFD • Single phase – 220 v – VFD • Left hand side control panel • Mist lubrication • Remote operator console SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.
Specifications
Manufacturer | HydMech Group |
Model | S-20P |
Condition | New |
Capacity | Rectangular (h x w) Round |
90° | 13" x 18" 13" |
45° | 13" x 10.75" 12" |
30° | 13" x 7.75" 8.5" |
Blade size | 1” x 14’ 10” |
Blade drive | 3 HP VFD |
Machine voltage | 208, 240, 480, or 575 v |
Blade speed | 45-330 SFM |
Coolant tank capacity | 6 Gallons |
Work load | 5,000 lbs. |
Machine weight | 2,500 lbs. |
Table height | 31” |
Dimensions (w x l x h) | 92” x 75” x 52” |
