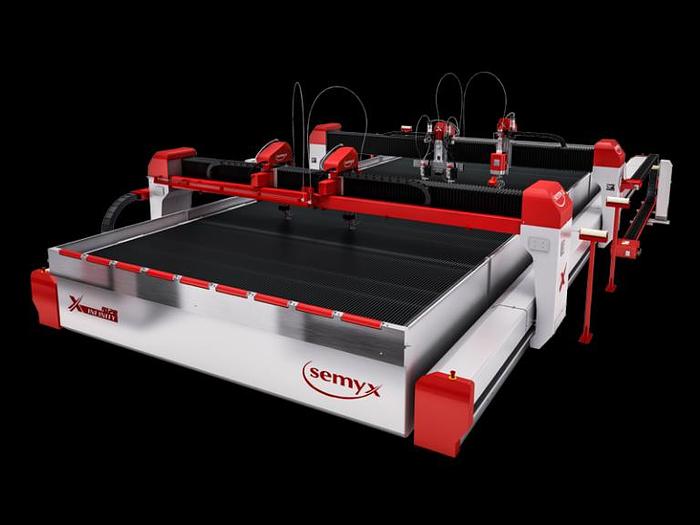

Semyx Water Jets Infinity Series

Semyx Water Jets Infinity Series

Contact us for price

Little Rock, AR

orCall 1 501-897-1110

Description

Delivery: TBD Terms: Net Before Ship Location: Dalton, Georgia Heavy Duty Tank Ball Screws Precise Rigid Design Front Rollers Additional Options 5-Axis Cutting Head Dual Cutting Heads Multiple Cutting Heads on 1 Z-Axis Auto-Height and Anti-Collision Dual Z-Axis Multiple Gantries GRS Abrasive Removal System Automatic Water Level Control Front Rollers Closed Loop Filtration System Chiller SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.
Show All

Specifications

Model340, 360, 380, 3100, 3120, 440, 460, 480, 4100, 4120
ConditionNew
X-axis cutting stroke mm (in)4000 mm (158") 6000 mm (237") 8000 mm (315") 10000 mm (394") 12000 mm (472") 4000 mm (158") 6000 mm (237") 8000 mm (315") 10000 mm (394") 12000 mm (472")
Y-axis cutting stroke mm (in)3040 mm (120") 3040 mm (120") 3040 mm (120") 3040 mm (120") 3040 mm (120") 4040 mm (159") 4040 mm (159") 4040 mm (159") 4040 mm (159") 4040 mm (159")
Z-axis stroke mm (in)304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12") 304.8 mm (12")
Footprint width mm (in)5230 mm (206") 5230 mm (206") 5230 mm (206") 5230 mm (206") 5230 mm (206") 6230 mm (246") 6230 mm (246") 6230 mm (246") 6230 mm (246") 6230 mm (246")
Footprint length mm (in)5980 mm (236") 7990 mm(315") 11010 mm(434") 11970 mm (472") 13980 mm (551") 5980 mm (236") 7990 mm(315") 11010 mm(434") 11970 mm (472") 13980 mm (551")
Accuracy mm (in)0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”) 0.05 mm (0.002”)
Repeatability mm (in)±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”) ±0.025 mm (±0.001”)
DriversAC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors AC Servo Motors
Motion for x-axisPrecision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen
Motion for y-axisPrecision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen Precision Roller Pinion System (RPS) / Nexen
Tank load capacity1250 kg/m2 (256 lb/ft2) 1250 kg/m2 (256 lb/ft2) 1250 kg/m2 (256 lb/ft2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2) 1250 kg/𝑚2 (256 lb/𝑓𝑡2)
